- Part number
- 6GT2810-2DC00
- Model no
- RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ

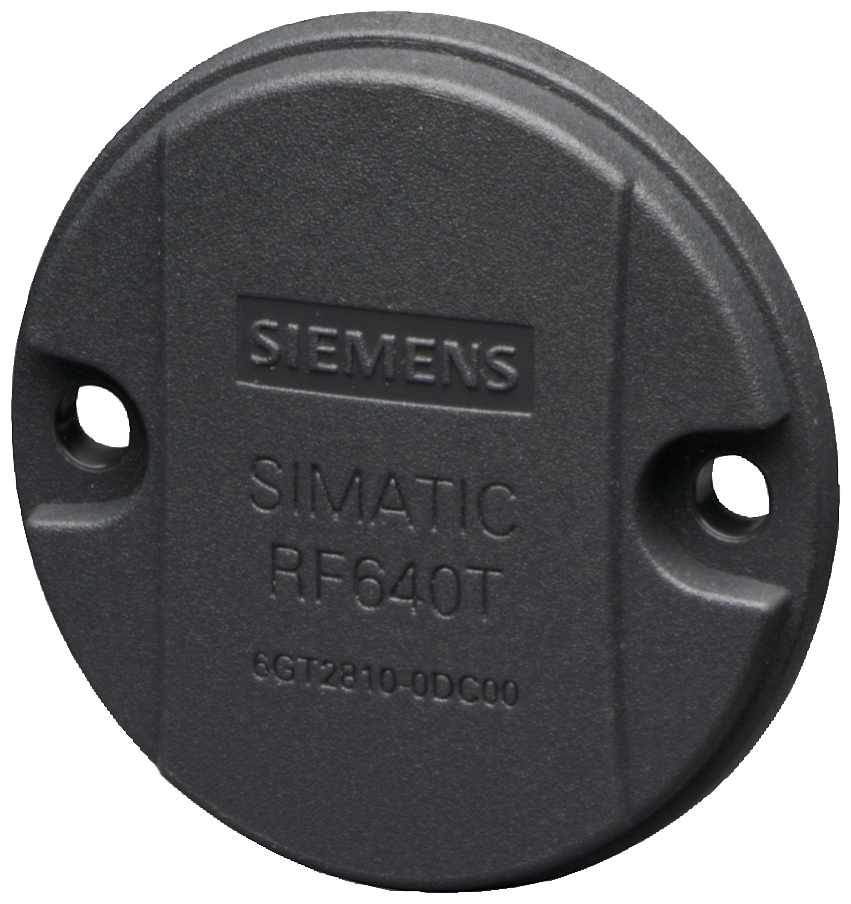

Siemens 6GT2810-2DC00 SIMATIC RF640 RF640T ETSI On-Metal UHF Transponder IP68 RFID Transponder
SIMATIC RF640T ETSI on-metal UHF RFID transponder, EPC Gen2, IECEx rated, IP68/IPx9K.
Description
About the RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
About the RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
The Siemens 6GT2810-2DC00 is a SIMATIC RF640T ETSI UHF RFID transponder designed for direct mounting on metal surfaces. It operates at 865 to 868 MHz per EPCglobal Class 1 Gen 2 / ISO 18000-63, with 64 bytes of EEPROM user memory on an NXP G2XM chip. The IP68/IPx9K-rated PA12 housing carries an IECEx hazardous-location rating and withstands -40 to +125 degC outside the read/write zone.
Certifications & Standards
- IECEx
Selection Notes
Zero minimum mounting distance from metal, combined with the IECEx Ex ib IIC T6-T3 rating, lets this transponder sit directly on a steel component inside a zone-rated area where a standard on-metal tag could not be certified. The 50 mm diameter, 8 mm-high disc mounts with two M4 screws for a permanent fix rather than an adhesive pad. At -40 to +125 degC storage, it tolerates outdoor or near-process installations that would exceed the card-format transponders' range.
Specification
Full specification
General 3
| product type designation | RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ |
|---|---|
| suitability for operation | RF600 |
| product brand name | SIMATIC RF |
Radio frequencies 5
| operating frequency | 865 ... 868 MHz |
|---|---|
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 / ISO 18000-63 |
| transfer rate / with radio transmission / maximum | 320 kbit/s |
| product feature / multitag-capable | Yes |
| polarization | Linear |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 54 specifications ↓ Show less ↑45 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GT2810-2DC00 |
|---|---|
| Type designation | RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209828896 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 64 byte |
| type of memory organization | EPC memory 96 bit (12 byte) assigned with sequential identifier and expandable up to 240 bit (30 byte), user memory 512 bit (64 byte), TID memory 64 bit (8 byte) |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | lock, unlock, write protection, password protection |
| type of transponder chip used | NXP G2XM |
Mechanical data 4
| material | PA12 |
|---|---|
| color | anthracite |
| tightening torque / of the screw for securing the equipment / maximum | 1.2 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Ambient conditions 7
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +125 °C |
| ambient temperature: during storage | -40 ... +125 °C |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 3
| height | 8 mm |
|---|---|
| diameter | 50 mm |
| fastening method | 2 x M4 screws |
Product features, product functions, product components / general 3
| product feature: silicon-free | Yes |
|---|---|
| product feature: tamper-proof | No |
| product feature: printable | No |
Standards, specifications, approvals 3
| certificate of suitability: IECEx | Yes |
|---|---|
| certificate of suitability: for IECEx / as marking | Ex: II 2 G Ex ib IIC T6 to T3, II 2 D Ex ibD 21 T140 °C, -25 °C < Ta°< +85 °C |
| MTBF | 1757 a |
Logistics 7
| Net weight | 0.013 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.513 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2810-2DC00
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IECEx
Quick answers
Questions about the RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
What is the HS code of RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ for customs?
The tariff (HS) code on file for RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ is 85235200.
What is the EAN of RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ?
The EAN (GTIN) of RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ is 4011209828896.
Where does RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ ship from, and how fast?
RF640T transponder SIMATIC RF640T (ETSI) PA, 50 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
