- Part number
- 6GT2810-2BB80
- Model no
- RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity
Siemens 6GT2810-2BB80 SIMATIC RF610 RF610T ISO Card UHF Transponder IP67 RFID Transponder
SIMATIC RF610T UHF RFID transponder, ISO card format, EPC Gen2, 256-byte memory, IP67.
Description
About the RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity
About the RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity

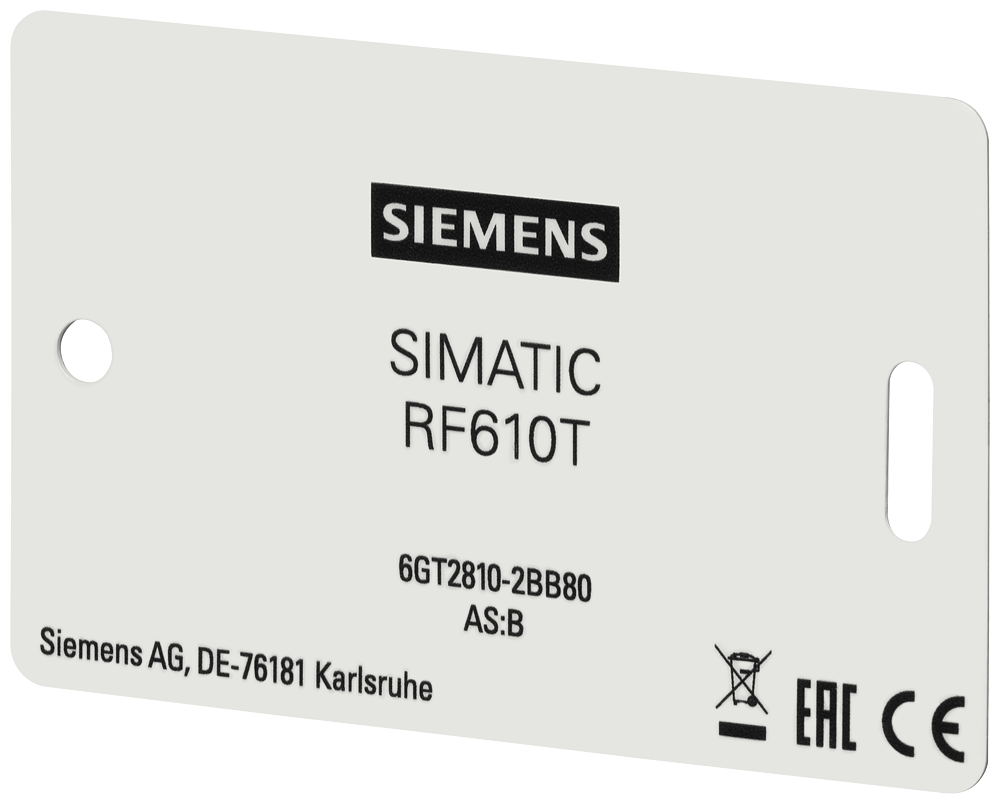

The Siemens 6GT2810-2BB80 is a SIMATIC RF610T UHF RFID transponder in ISO card format (86 x 54 x 0.4 mm) for the SIMATIC RF600 system. It operates at 860 to 960 MHz per EPCglobal Class 1 Gen 2 / ISO 18000-63, with 256 bytes of EEPROM user memory. The IP67-rated PVC card withstands -40 to +85 degC outside the read/write zone.
Certifications & Standards
- cULus
Selection Notes
The food-safe PVC card format and printable surface suit item-level tracking where the tag needs a human-readable label alongside the embedded UCode 7-xm chip. Because the card is only 0.4 mm thick, it mounts by gluing or a cable tie rather than screws, and needs at least 3 mm clearance from metal surfaces to read reliably. The 100,000-cycle write endurance and 10-year data retention fit repeated re-encoding in a returnable-asset workflow rather than one-time labeling.
Specification
Full specification
General 3
| product type designation | RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity |
|---|---|
| suitability for operation | RF600 |
| product brand name | SIMATIC RF |
Radio frequencies 5
| operating frequency | 860 ... 960 MHz |
|---|---|
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 / ISO 18000-63 |
| transfer rate / with radio transmission / maximum | 320 kbit/s |
| product feature / multitag-capable | Yes |
| polarization | Linear |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 57 specifications ↓ Show less ↑48 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2810-2BB80 |
|---|---|
| Type designation | RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169668736 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 256 byte |
| type of memory organization | EPC memory 96 bit (12 byte) expandable up to 448 bit (56 byte), user memory 2048 bit (256 byte), TID memory 96 bit (12 byte) |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | lock, unlock, kill, write protection, password protection |
| type of transponder chip used | NXP Ucode 7-xm 2k |
Mechanical data 3
| material | PVC, food-safe |
|---|---|
| color | white |
| mounting distance / relating to metal surfaces / recommended / minimum | 3 mm |
Ambient conditions 8
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| protection class IP | IP67 |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s2 |
| vibrational acceleration | 500 m/s2 |
| resistance to mechanical stress | Torsion and bending stress conditionally permissible |
Design, dimensions and weights 4
| width | 54 mm |
|---|---|
| height | 0.4 mm |
| depth | 86 mm |
| fastening method | gluing, cable tie, screwing |
Product features, product functions, product components / general 3
| product feature: tamper-proof | No |
|---|---|
| product feature: printable | Yes |
| printing process | Thermal transfer process |
Standards, specifications, approvals 3
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: cULus approval | Yes |
| MTBF | 1712 a |
Accessories 1
| accessories | Fixing strap, spacer |
|---|
General Product Approval 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 3 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 3.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2810-2BB80
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- cULus approval
Quick answers
Questions about the RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity
What is the HS code of RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity for customs?
The tariff (HS) code on file for RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity is 85235200.
What is the EAN of RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity?
The EAN (GTIN) of RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity is 4019169668736.
Where does RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity ship from, and how fast?
RF610T transponder SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +85 °C IP67 50 units/carton 1 carton 50 units minimum order quantity ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
