- Part number
- 6GT2801-4BA10
- Model no
- RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30.

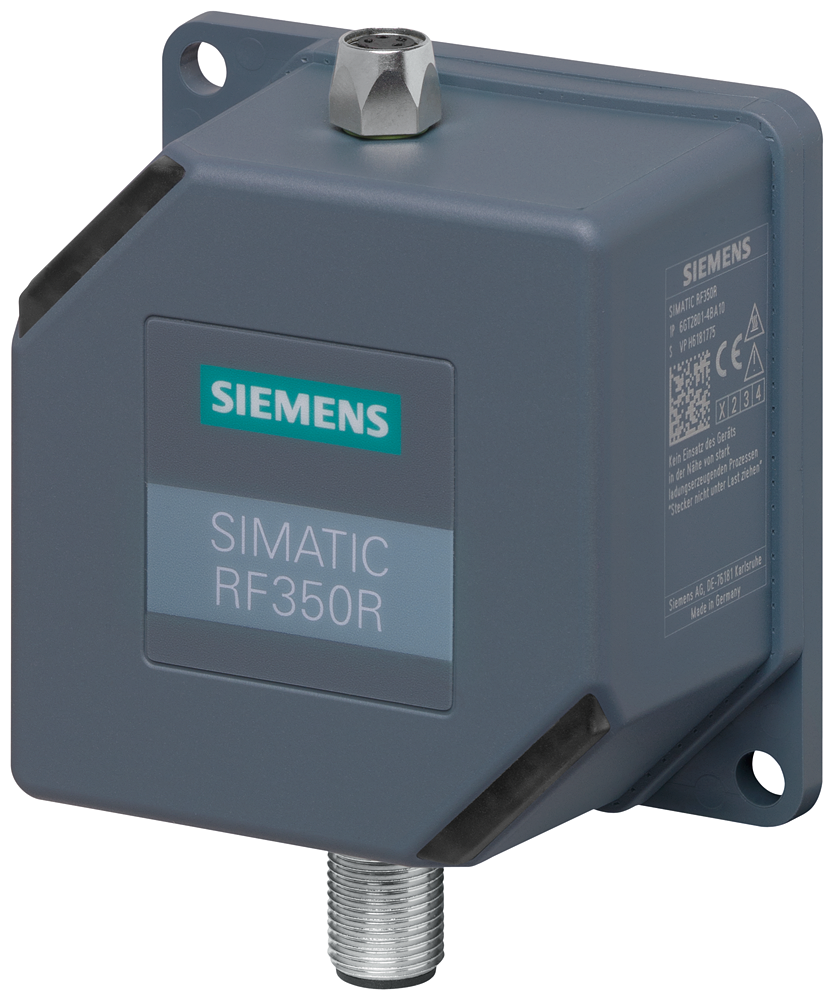

Siemens 6GT2801-4BA10 SIMATIC RF300 RF350R Reader External Antenna RS422 IP65 RFID Reader
SIMATIC RF300 RF350R (GEN2) RFID reader for external antenna, RS422 interface, IP65, 24V DC.
Description
About the RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30.
About the RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30.
The Siemens 6GT2801-4BA10 is a SIMATIC RF300 RF350R (GEN2) RFID reader without an integrated antenna, built for use with a separate external antenna over an M8, 4-pin connection. It communicates via RS422 (3964R protocol) and reads ISO 15693 and MOBY E transponders at 13.56 MHz. The IP65-rated housing runs on 24 V DC from -25 to +70 degC.
Certifications & Standards
- EPD
Selection Notes
Because the antenna sits outside the reader housing, connected through an M8, 4-pin port with a fixed 3 m cable, the RF350R fits installations where the read point and the electronics need to be physically separated - for example, a reader mounted in a cabinet with the antenna face pointed at a conveyor gap. It supports one external antenna at a time from the ANT range. The IP65 housing rating is lower than the integrated-antenna readers in the family, so it suits indoor cabinet mounting rather than direct washdown exposure.
Applications
Pairs with SIMATIC RF300 communication modules in production lines where the antenna must be positioned close to a narrow read gap while the reader electronics stay in a protected enclosure.
Specification
Full specification
General 3
| product type designation | RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | RF300, ISO 15693 and MOBY E transponder, for connecting to communication modules |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | RF300 specific, ISO 15693, ISO 18000-3, ISO 14443 |
| transfer rate / with radio transmission / maximum | 106 kbit/s |
| product feature / multitag-capable | No |
Electrical data 3
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
|---|---|
| transmission time / for user data: for write access / per byte / typical | 0.13 ms |
| transmission time / for user data: for read access / per byte / typical | 0.13 ms |
Show all 62 specifications ↓ Show less ↑52 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, Logistics.
Identification 10
| Part number | 6GT2801-4BA10 |
|---|---|
| Type designation | RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622417966 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 4
| number of external antennas | 1 |
|---|---|
| standard for interfaces / for communication | RS422 |
| type of electrical connection: for external antenna(s) | M8, 4-pin |
| type of electrical connection: for communications interface | M12, 8-pin |
Mechanical data 4
| material | PA 12 |
|---|---|
| color | titanium gray |
| tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 3
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20.4 ... 28.8 V |
| consumed current / at DC: at 24 V / typical | 0.06 A |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP65 |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 6
| width | 75 mm |
|---|---|
| height | 41 mm |
| depth | 75 mm |
| fastening method | 2 x M5 screws |
| wire length: of antenna cable / fixed value | 3 m |
| wire length: for RS 422 interface / maximum | 1000 m |
Product features, product functions, product components / general 2
| display version | 5-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 3
| certificate of suitability | Radio acc. to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 260 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 50.4 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.7 kg |
| global warming potential [CO2 eq]: during operation | 39.4 kg |
| global warming potential [CO2 eq]: after end of life | 0.3 kg |
Accessories 1
| accessories | Various antennas are available |
|---|
Logistics 7
| Net weight | 0.259 kg |
|---|---|
| Package dimensions | 106 × 76 × 42 mm |
| Country of origin | DE |
| Shipping weight | 0.759 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2801-4BA10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30.
What is the rated current of RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30.?
The rated current of RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. is 0.06 A.
Which supply voltage is RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. rated for?
The rated operational voltage of RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. is 24 V AC.
What is the HS code of RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. for customs?
The tariff (HS) code on file for RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. is 84719000.
What is the EAN of RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30.?
The EAN (GTIN) of RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. is 4047622417966.
Where does RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. ship from, and how fast?
RF350R reader SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
