- Part number
- 6GT2801-2BA10
- Model no
- RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna .

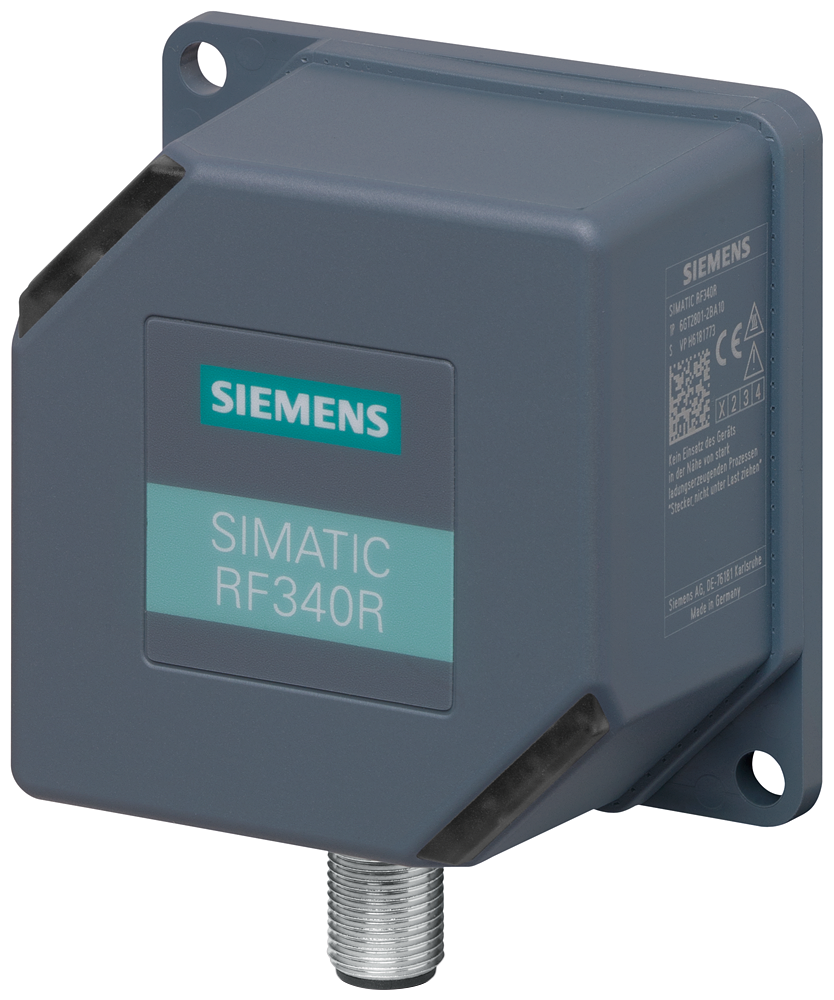

Siemens 6GT2801-2BA10 SIMATIC RF300 RF340R Reader RS422 IP67 RFID Reader
SIMATIC RF300 RF340R (GEN2) RFID reader, RS422 interface, IP67, 24V DC, integrated antenna.
Description
About the RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna .
About the RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna .
The Siemens 6GT2801-2BA10 is a SIMATIC RF300 RF340R (GEN2) RFID reader with an integrated antenna for fixed-point identification. It connects over an RS422 interface (3964R protocol) at up to 115.2 kbit/s and reads ISO 15693 and MOBY E transponders at 13.56 MHz. The IP67-rated 75 x 75 x 41 mm housing runs on 24 V DC from -25 to +70 degC.
Certifications & Standards
- EPD
Selection Notes
The 75 x 75 x 41 mm housing carries a larger integrated antenna than the compact form-factor readers in the same interface family, which extends usable read range at the same 13.56 MHz frequency without changing the RS422 wiring. Two M5 screws mount it directly to a bracket or frame member. Choose it where the RS422 cable run to the controller needs to stay within the 1000 m limit and the footprint fits the mounting space.
Applications
Pairs with SIMATIC RF300 communication modules for identification points on conveyors or assembly fixtures where a standard, non-rotated housing orientation is sufficient.
Specification
Full specification
General 3
| product type designation | RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna . |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | RF300, ISO 15693 and MOBY E transponder, for connecting to communication modules |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | RF300 specific, ISO 15693, ISO 18000-3, ISO 14443 |
| transfer rate / with radio transmission / maximum | 106 kbit/s |
| product feature / multitag-capable | No |
Electrical data 3
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
|---|---|
| transmission time / for user data: for write access / per byte / typical | 0.13 ms |
| transmission time / for user data: for read access / per byte / typical | 0.13 ms |
Show all 59 specifications ↓ Show less ↑49 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2801-2BA10 |
|---|---|
| Type designation | RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622417959 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 2
| standard for interfaces / for communication | RS422 |
|---|---|
| type of electrical connection | M12, 8-pin |
Mechanical data 4
| material | PA 12 |
|---|---|
| color | titanium gray |
| tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 3
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20.4 ... 28.8 V |
| consumed current / at DC: at 24 V / typical | 0.06 A |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP67 |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 5
| width | 75 mm |
|---|---|
| height | 41 mm |
| depth | 75 mm |
| fastening method | 2 x M5 screws |
| wire length: for RS 422 interface / maximum | 1000 m |
Product features, product functions, product components / general 2
| display version | 5-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 3
| certificate of suitability | Radio acc. to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 260 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 50.4 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.7 kg |
| global warming potential [CO2 eq]: during operation | 39.4 kg |
| global warming potential [CO2 eq]: after end of life | 0.3 kg |
General Product Approval 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 0.3 kg |
|---|---|
| Package dimensions | 106 × 76 × 42 mm |
| Country of origin | DE |
| Shipping weight | 0.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2801-2BA10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna .
What is the rated current of RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna .?
The rated current of RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna . is 0.06 A.
Which supply voltage is RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna . rated for?
The rated operational voltage of RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna . is 24 V AC.
What is the HS code of RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna . for customs?
The tariff (HS) code on file for RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna . is 84719000.
What is the EAN of RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna .?
The EAN (GTIN) of RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna . is 4047622417959.
Where does RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna . ship from, and how fast?
RF340R reader SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
