- Part number
- 6GT2801-1BA10
- Model no
- RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna .

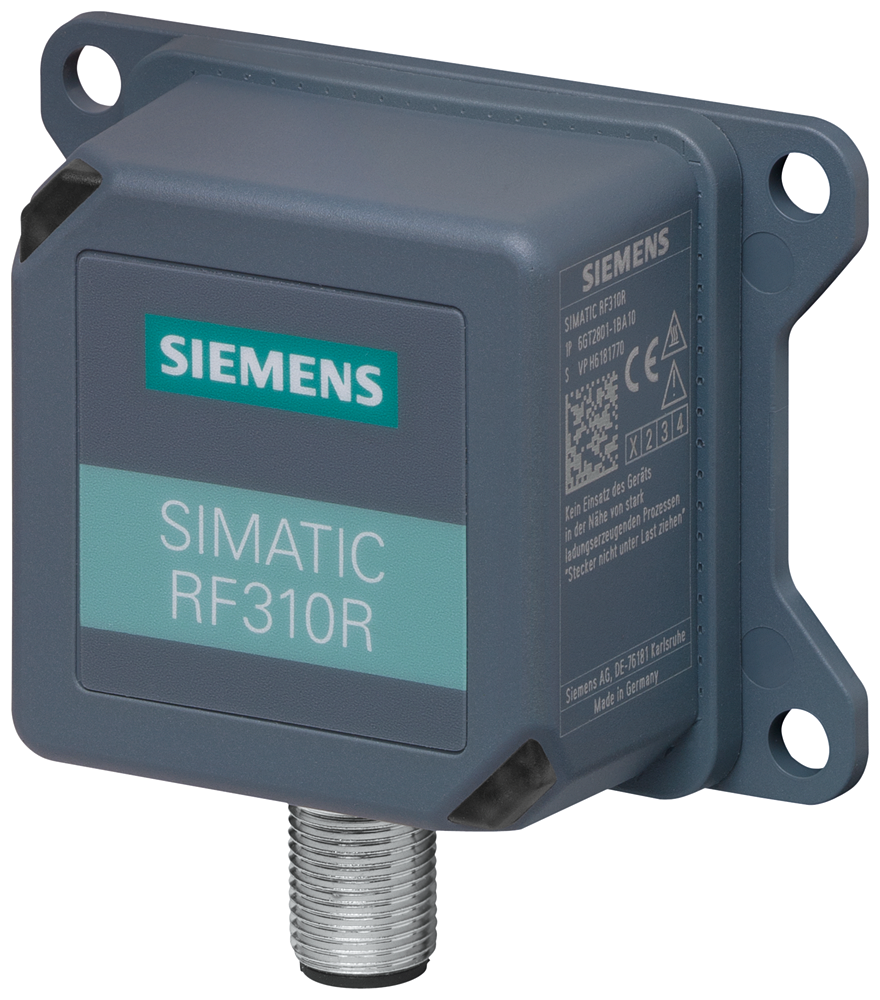

Siemens 6GT2801-1BA10 SIMATIC RF300 RF310R GEN2 RS422 IP67 RFID Reader
RF300 RFID reader, RS422 interface, integrated antenna, IP67, reads ISO 15693 tags at 13.56 MHz.
Description
About the RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna .
About the RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna .
The Siemens 6GT2801-1BA10 RF310R (GEN2) is a SIMATIC RF300 reader with an integrated antenna and an RS422 (3964R) interface for connecting to communication modules. It reads RF300-specific, ISO 15693, ISO 18000-3, and ISO 14443 transponders at 13.56 MHz, runs on 24 V DC drawing 0.06 A typical, and is rated IP67 for -25 to +70 degrees C operation.
Certifications & Standards
- EPD
Selection Notes
The RS422 (3964R) point-to-point interface and 1000 m max cable length make this GEN2 reader the choice for installations where the reader sits far from the controlling communication module and a simple serial link is preferred over a fieldbus-integrated head. Its integrated antenna and 0 mm metal mounting distance let it be panel- or bracket-mounted directly on a steel frame without a separate antenna cable.
Applications
The 5-color LED status display and RS422 link suit conveyor read points and assembly-line RFID stations built around SIMATIC RF300 communication modules, reading RF300, ISO 15693, ISO 18000-3, or ISO 14443 transponders passing within antenna range.
Specification
Full specification
General 3
| product type designation | RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna . |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | RF300, ISO 15693 and MOBY E transponder, for connecting to communication modules |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | RF300 specific, ISO 15693, ISO 18000-3, ISO 14443 |
| transfer rate / with radio transmission / maximum | 106 kbit/s |
| product feature / multitag-capable | No |
Electrical data 3
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
|---|---|
| transmission time / for user data: for write access / per byte / typical | 0.13 ms |
| transmission time / for user data: for read access / per byte / typical | 0.13 ms |
Show all 60 specifications ↓ Show less ↑50 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2801-1BA10 |
|---|---|
| Type designation | RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622417942 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 2
| standard for interfaces / for communication | RS422 |
|---|---|
| type of electrical connection | M12, 8-pin |
Mechanical data 4
| material | PA 12 |
|---|---|
| color | titanium gray |
| tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 3
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20.4 ... 28.8 V |
| consumed current / at DC: at 24 V / typical | 0.06 A |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP67 |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 5
| width | 55 mm |
|---|---|
| height | 30 mm |
| depth | 75 mm |
| fastening method | 4 x M5 screws |
| wire length: for RS 422 interface / maximum | 1000 m |
Product features, product functions, product components / general 2
| display version | 5-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 4
| certificate of suitability | Radio acc. to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 273 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 50.4 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.7 kg |
| global warming potential [CO2 eq]: during operation | 39.4 kg |
| global warming potential [CO2 eq]: after end of life | 0.3 kg |
General Product Approval 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 0.128 kg |
|---|---|
| Package dimensions | 80 × 71 × 31 mm |
| Country of origin | DE |
| Shipping weight | 0.628 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2801-1BA10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna .
What is the rated current of RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna .?
The rated current of RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna . is 0.06 A.
Which supply voltage is RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna . rated for?
The rated operational voltage of RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna . is 24 V AC.
What is the HS code of RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna . for customs?
The tariff (HS) code on file for RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna . is 84719000.
What is the EAN of RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna .?
The EAN (GTIN) of RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna . is 4047622417942.
Where does RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna . ship from, and how fast?
RF310R reader SIMATIC RF300; Reader RF310R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 55x 75x 30 mm, with integrated antenna . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
