- Part number
- 6GT2801-1BA10-0AX1
- Model no
- RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°).

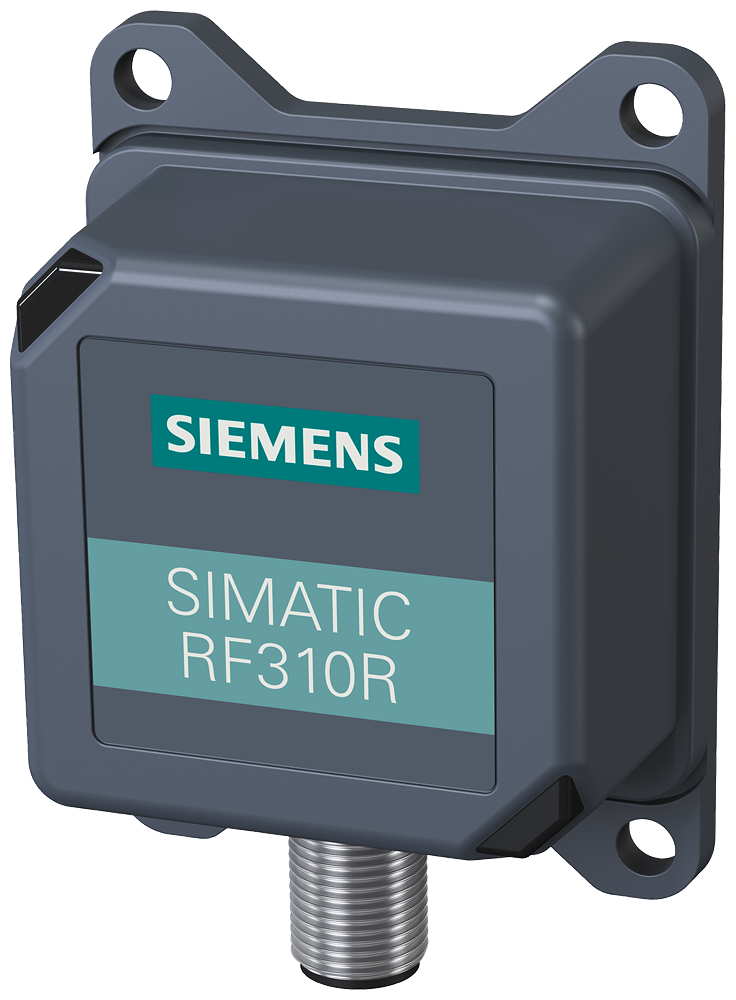

Siemens 6GT2801-1BA10-0AX1 SIMATIC RF300 RF310R Reader RS422 IP67 Rotated Baseplate RFID Reader
SIMATIC RF300 RF310R (GEN2) RFID reader, RS422 interface, IP67, 24V DC, integrated antenna, rotated 90-degree baseplate.
Description
About the RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°).
About the RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°).
The Siemens 6GT2801-1BA10-0AX1 is a SIMATIC RF300 RF310R (GEN2) RFID reader with an integrated antenna and a rotated base plate for tight mounting clearances. It communicates over an RS422 interface (3964R protocol) at up to 115.2 kbit/s and reads ISO 15693 and MOBY E transponders at 13.56 MHz. The IP67-rated housing operates from -25 to +70 degC.
Certifications & Standards
- EPD
Selection Notes
The rotated base plate variant suits mounting locations where the standard housing orientation would force the M12, 8-pin connector into an inaccessible position - rotating 90 degrees keeps the same IP67 rating, 13.56 MHz read range, and RS422 wiring unchanged. With a maximum RS422 cable run of 1000 m, it fits controller cabinets set well back from the read point. The integrated antenna keeps the reader footprint at 75 x 55 x 30 mm, useful where a separate antenna cable is not practical.
Applications
Pairs with SIMATIC RF300 communication modules for conveyor-line and pallet-tracking applications where ISO 15693 tags need to be read at fixed points; the 24 V DC supply and IP67 housing allow direct mounting near the read zone without an additional enclosure.
Specification
Full specification
General 3
| product type designation | RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°). |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | RF300, ISO 15693 and MOBY E transponder, for connecting to communication modules, rotated base plate |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | RF300 specific, ISO 15693, ISO 18000-3, ISO 14443 |
| transfer rate / with radio transmission / maximum | 106 kbit/s |
| product feature / multitag-capable | No |
Electrical data 3
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
|---|---|
| transmission time / for user data: for write access / per byte / typical | 0.13 ms |
| transmission time / for user data: for read access / per byte / typical | 0.13 ms |
Show all 61 specifications ↓ Show less ↑51 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2801-1BA10-0AX1 |
|---|---|
| Type designation | RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°). |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622417980 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 2
| standard for interfaces / for communication | RS422 |
|---|---|
| type of electrical connection | M12, 8-pin |
Mechanical data 4
| material | PA 12 |
|---|---|
| color | titanium gray |
| tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 3
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20.4 ... 28.8 V |
| consumed current / at DC: at 24 V / typical | 0.06 A |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP67 |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 5
| width | 75 mm |
|---|---|
| height | 30 mm |
| depth | 55 mm |
| fastening method | 4 x M5 screws |
| wire length: for RS 422 interface / maximum | 1000 m |
Product features, product functions, product components / general 2
| display version | 5-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 3
| certificate of suitability | Radio acc. to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 273 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 50.4 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.7 kg |
| global warming potential [CO2 eq]: during operation | 39.4 kg |
| global warming potential [CO2 eq]: after end of life | 0.3 kg |
General Product Approval 3
| China RoHS Manufacturer Declara- | tion Radio Equipment |
|---|---|
| General Product Approval EMV Type Approval Certi- | ficate |
| China RoHS Manufacturer Declara- Miscellaneous | tion |
Logistics 7
| Net weight | 0.3 kg |
|---|---|
| Package dimensions | 80 × 71 × 31 mm |
| Country of origin | DE |
| Shipping weight | 0.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2801-1BA10-0AX1
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°).
What is the rated current of RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°).?
The rated current of RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°). is 0.06 A.
Which supply voltage is RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°). rated for?
The rated operational voltage of RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°). is 24 V AC.
What is the HS code of RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°). for customs?
The tariff (HS) code on file for RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°). is 84719000.
What is the EAN of RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°).?
The EAN (GTIN) of RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°). is 4047622417980.
Where does RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°). ship from, and how fast?
RF310R reader SIMATIC RF300; Reader RF310R (GEN2) with RS422 interface (3964R); IP67, - 25 to +70 °C, 55x 75x 30 mm, with integrated antenna; special variant with rotated base plate (90°). ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
