- Part number
- 6GT2800-5BD00
- Model no
- RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame

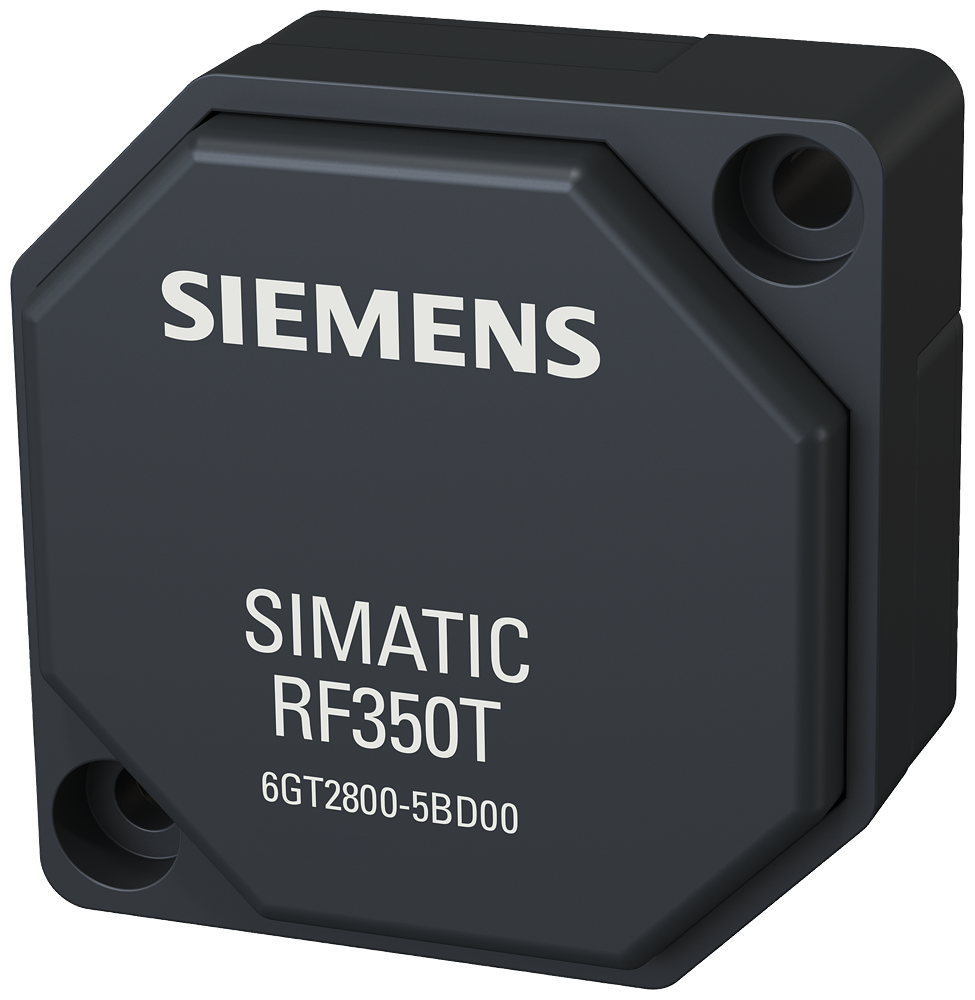

Siemens 6GT2800-5BD00 SIMATIC RF300 RF350T 32 KB FRAM IP68 RFID Transponder
RF300 RFID transponder, 32765 byte FRAM/EEPROM, 106 kbit/s, IP68, cULus approved, fixing frame.
Description
About the RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame
About the RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame
The Siemens 6GT2800-5BD00 RF350T is a 50 x 50 x 20 mm SIMATIC RF300 transponder with a built-in fixing frame, storing 32765 bytes of FRAM/EEPROM user memory at up to 106 kbit/s. The PA12 housing mounts flush against metal with zero clearance, is rated IP68 and cULus approved, and covers -25 to +85 degrees C operation.
Certifications & Standards
- cULus
- EPD
Selection Notes
With 32765 bytes this transponder carries four times the user memory of the smaller 8 KB cards in the same metal-flush PA12 family, so specify it when the application needs to store a full process recipe or multi-step routing record rather than a short ID. Its built-in fixing frame and M4 screws replace the plain M3 fastening used on the 8 KB cards, giving a more rigid mount for larger, heavier fixtures.
Applications
The larger memory and rigid fixing frame suit carrier pallets and tooling fixtures in RF300 lines that track multi-step process data alongside the part, rather than a single identifier.
Specification
Full specification
General 3
| product type designation | RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame |
|---|---|
| suitability for operation | RF300 |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | RF300-specific |
| transfer rate / with radio transmission / maximum | 106 kbit/s |
| product feature / multitag-capable | No |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 56 specifications ↓ Show less ↑48 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2800-5BD00 |
|---|---|
| Type designation | RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515143666 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 7
| type of memory | FRAM / EEPROM |
|---|---|
| storage capacity / of the user memory | 32765 byte |
| type of memory organization | UID (fixed code) 4 bytes, user memory 32765 bytes, OTP memory 20 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+10 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 1E+10 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the OTP memory |
Mechanical data 3
| material | PA12 |
|---|---|
| color | anthracite |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Ambient conditions 7
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| protection class IP | IP68 |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 4
| width | 50 mm |
|---|---|
| height | 20 mm |
| depth | 50 mm |
| fastening method | 2 x M4 screws |
Product features, product functions, product components / general 2
| product feature: silicon-free | Yes |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 3
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: cULus approval | Yes |
| MTBF | 1200 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.93 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.88 kg |
| global warming potential [CO2 eq]: during operation | 0.00041 kg |
| global warming potential [CO2 eq]: after end of life | 0.05 kg |
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 6
| Net weight | 0.025 kg |
|---|---|
| Country of origin | Romania |
| Shipping weight | 0.525 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2800-5BD00
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- cULus approval
- Environmental Product Declaration
Quick answers
Questions about the RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame
What is the HS code of RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame for customs?
The tariff (HS) code on file for RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame is 85235200.
What is the EAN of RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame?
The EAN (GTIN) of RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame is 4025515143666.
Where does RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame ship from, and how fast?
RF350T transponder SIMATIC RF300 transponder RF350T 32 KB FRAM, IP68, -25 to +85 °C, 50x 50x 20 mm including fixing frame ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
