- Part number
- 6GT2800-4BB00
- Model no
- RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units
In stock · 10
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0

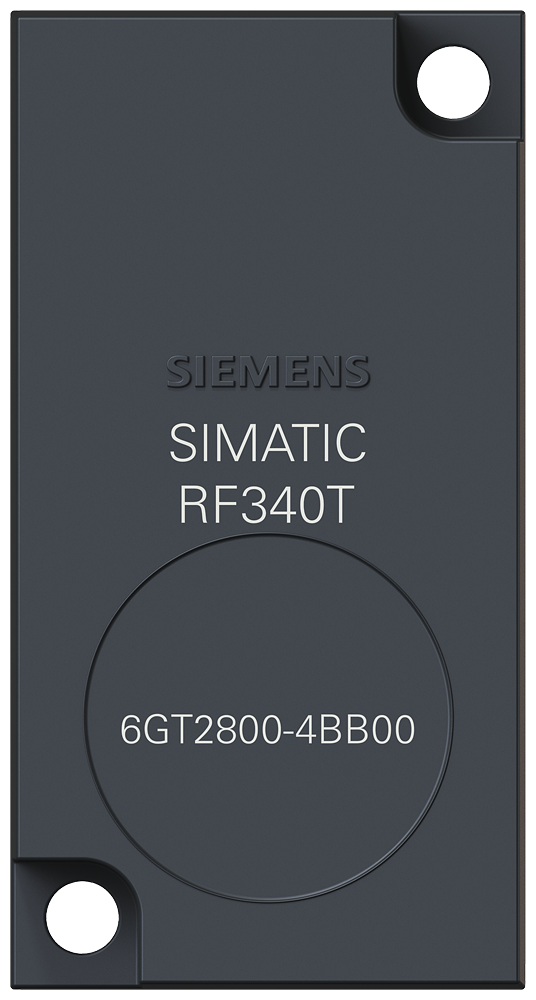

Siemens 6GT2800-4BB00 SIMATIC RF300 RF340T 8 KB FRAM IP67/IPx9K RFID Transponder
RF300 RFID transponder, 8189 byte FRAM/EEPROM, 106 kbit/s, IP67/IPx9K, cULus approved.
Description
About the RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units
About the RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units
The Siemens 6GT2800-4BB00 RF340T is a compact SIMATIC RF300 transponder measuring 48 x 25 x 15 mm, storing 8189 bytes across FRAM and EEPROM at up to 106 kbit/s. Built in PA12 with an anthracite finish and zero-millimeter metal mounting distance, it is rated IP67/IPx9K and cULus approved for -25 to +85 degrees C operation.
Certifications & Standards
- cULus
- EPD
Selection Notes
Unlike the epoxy card in the same family, which needs a 20 mm standoff from metal, this transponder's PA12 housing is rated for direct 0 mm contact with metal and adds an IPx9K high-pressure washdown rating on top of IP67, which is the reason to prefer it in wash-down or metal-fixture-mounted stations. Its 8189-byte capacity matches the epoxy card exactly, so the decision between the two comes down to mounting distance and washdown exposure rather than memory.
Applications
The zero-clearance metal mounting and IPx9K rating suit machine-tool pallets, conveyor carriers, and fixtures in wash-down or coolant-exposed production cells within an RF300 system.
Specification
Full specification
General 3
| product type designation | RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units |
|---|---|
| suitability for operation | RF300 |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | RF300-specific |
| transfer rate / with radio transmission / maximum | 106 kbit/s |
| product feature / multitag-capable | No |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 56 specifications ↓ Show less ↑48 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2800-4BB00 |
|---|---|
| Type designation | RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515142461 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 7
| type of memory | FRAM / EEPROM |
|---|---|
| storage capacity / of the user memory | 8189 byte |
| type of memory organization | UID (fixed code) 4 bytes, user memory 8189 bytes, OTP memory 20 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+10 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 1E+10 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the OTP memory |
Mechanical data 3
| material | PA12 |
|---|---|
| color | anthracite |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Ambient conditions 7
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| protection class IP | IP67/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 4
| width | 25 mm |
|---|---|
| height | 15 mm |
| depth | 48 mm |
| fastening method | 2 x M3 screws |
Product features, product functions, product components / general 2
| product feature: silicon-free | Yes |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 3
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: cULus approval | Yes |
| MTBF | 1200 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.93 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.88 kg |
| global warming potential [CO2 eq]: during operation | 0.00041 kg |
| global warming potential [CO2 eq]: after end of life | 0.05 kg |
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 6
| Net weight | 0.014 kg |
|---|---|
| Country of origin | Romania |
| Shipping weight | 0.514 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2800-4BB00
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- cULus approval
- Environmental Product Declaration
Quick answers
Questions about the RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units
What is the HS code of RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units for customs?
The tariff (HS) code on file for RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units is 85235200.
What is the EAN of RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units?
The EAN (GTIN) of RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units is 4025515142461.
Where does RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units ship from, and how fast?
RF340T transponder SIMATIC RF300 transponder RF340T 8 KB FRAM, IP67/X9K, -25 to +85 °C, 48x2 5x 15 mm, minimum order quantity 5 units ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
