Siemens 6GT2800-4AC00 SIMATIC RF300 RF360T Epoxy Card 8 KB FRAM IP67 RFID Transponder
RF300 RFID transponder card, 8189 byte FRAM/EEPROM, 106 kbit/s, IP67, cULus approved.
Description
About the RF360T transponder SIMATIC RF300 Transponder RF360T EPOXY card, 8 KB FRAM, IP67, -25 to +70 °C, 85x 54x 2.5 mm, Minimum order quantity 10 units
About the RF360T transponder SIMATIC RF300 Transponder RF360T EPOXY card, 8 KB FRAM, IP67, -25 to +70 °C, 85x 54x 2.5 mm, Minimum order quantity 10 units

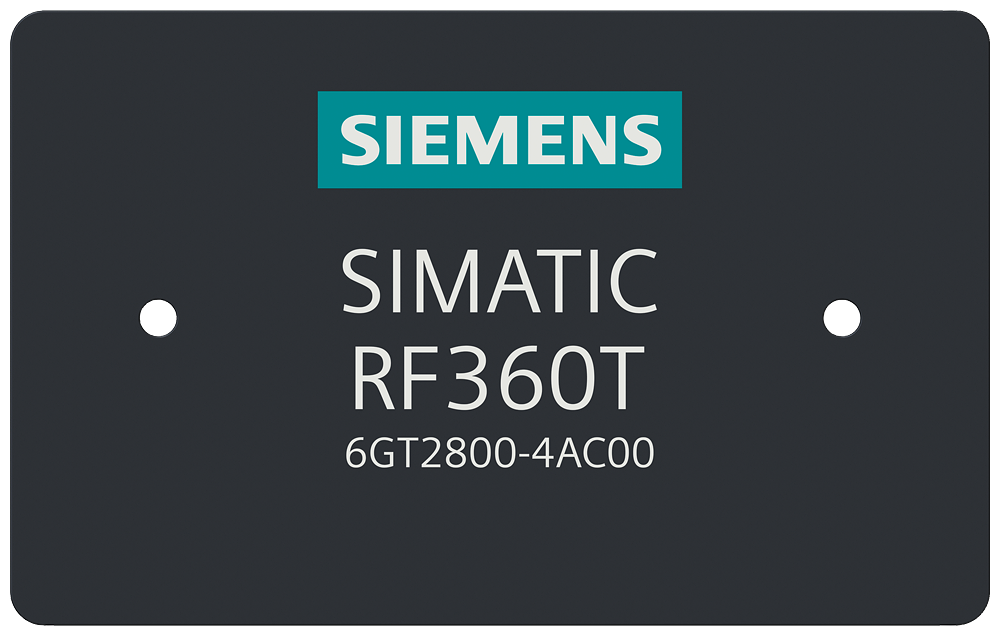

The Siemens 6GT2800-4AC00 RF360T is an epoxy card transponder for the SIMATIC RF300 system, holding 8189 bytes of user memory across FRAM and EEPROM at a 106 kbit/s transfer rate. Measuring 86 x 55 x 2.5 mm and rated IP67 with cULus approval, the flat card fits fixtures where a low-profile tag is screwed on with two M3 screws instead of embedded in metal.
Certifications & Standards
- cULus
- EPD
Selection Notes
At 8189 bytes the RF360T carries roughly four times the user memory of the smaller screw-in ISO tags in the broader SIMATIC RFID line, which matters when the application logs a full routing history rather than a single ID. The 20 mm recommended standoff from metal (set by the epoxy card construction, not a screw-in metal-flush design) means it needs the fixing strap or spacer accessory rather than direct fastening to a steel surface. Its IP67 rating, without the added washdown-rated IPx9K suffix carried by the metal-flush card in the same family, marks it as the indoor, non-washdown option; pick the washdown-rated card instead where coolant or wash-down spray is a factor.
Applications
The epoxy card format suits pallet and container tracking on plastic or wood surfaces, or on non-magnetic fixtures, where the fixing strap can secure it away from metal interference.
Specification
Full specification
General 3
| product type designation | RF360T transponder SIMATIC RF300 Transponder RF360T EPOXY card, 8 KB FRAM, IP67, -25 to +70 °C, 85x 54x 2.5 mm, Minimum order quantity 10 units |
|---|---|
| suitability for operation | RF300 |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | RF300-specific |
| transfer rate / with radio transmission / maximum | 106 kbit/s |
| product feature / multitag-capable | No |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 58 specifications ↓ Show less ↑50 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2800-4AC00 |
|---|---|
| Type designation | RF360T transponder SIMATIC RF300 Transponder RF360T EPOXY card, 8 KB FRAM, IP67, -25 to +70 °C, 85x 54x 2.5 mm, Minimum order quantity 10 units |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515143659 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 7
| type of memory | FRAM / EEPROM |
|---|---|
| storage capacity / of the user memory | 8189 byte |
| type of memory organization | UID (fixed code) 4 bytes, user memory 8189 bytes, OTP memory 20 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+10 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 1E+10 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the OTP memory |
Mechanical data 3
| material | Epoxy resin |
|---|---|
| color | anthracite |
| mounting distance / relating to metal surfaces / recommended / minimum | 20 mm |
Ambient conditions 8
| ambient temperature: during read/write access | -25 ... +75 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| protection class IP | IP67 |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
| resistance to mechanical stress | Continuous torsion and bending stress not permissible |
Design, dimensions and weights 4
| width | 55 mm |
|---|---|
| height | 2.5 mm |
| depth | 86 mm |
| fastening method | 2 x M3 screws, mounting bag (see accessories) |
Product features, product functions, product components / general 2
| product feature: silicon-free | Yes |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 3
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: cULus approval | Yes |
| MTBF | 1200 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.93 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.88 kg |
| global warming potential [CO2 eq]: during operation | 0.00041 kg |
| global warming potential [CO2 eq]: after end of life | 0.05 kg |
Accessories 1
| accessories | Fixing strap, spacer |
|---|
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 6
| Net weight | 0.025 kg |
|---|---|
| Country of origin | Romania |
| Shipping weight | 0.525 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 01 Nov 2026
