- Part number
- 6GT2600-4AK00-0AX0
- Model no
- MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units.

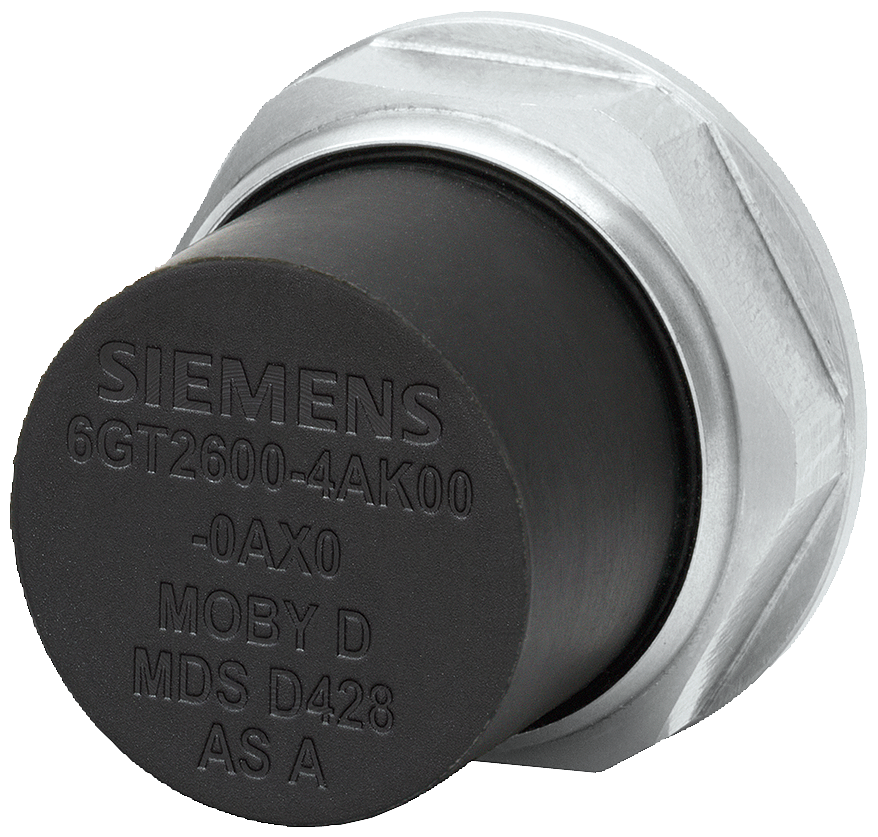

Siemens 6GT2600-4AK00-0AX0 SIMATIC RF300 MDS D428 ISO 15693 2000 Byte M8 RFID Transponder
ISO 15693 RFID transponder, 2000 byte FRAM, M8 stainless thread, IP68/IPx9K, -40 to +125C.
Description
About the MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units.
About the MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units.
The Siemens 6GT2600-4AK00-0AX0 MDS D428 is a long M8 screw-in transponder for SIMATIC RF200, RF300, and MOBY D readers, running ISO 15693 at 13.56 MHz with 2000 bytes of Fujitsu MB89R118 FRAM. The stainless-steel and PA6.6 GF body is 24 mm in diameter and 20 mm high, sealed to IP68/IPx9K, and ships with a mounting support for -40 to +125 degrees C service outside the read/write zone.
Selection Notes
This transponder shares its 24 mm body and stainless M8 (versus the smaller M6) thread with the shorter screw-in variant in the same range, but is twice the height at 20 mm, so it is the one to specify when the application needs a longer embedment depth into a thicker metal boss for extra mechanical retention. Torque and IP68/IPx9K sealing match the shorter M6 variant, so the choice comes down to thread size and embedment length rather than electrical performance.
Applications
The longer M8 body suits deep-drilled metal fixtures and heavy tooling in RF200/RF300 or MOBY D lines where a shorter M6 or M20 tag would not seat as securely.
Specification
Full specification
General 3
| product type designation | MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units. |
|---|---|
| suitability for operation | RF200, RF300, MOBY D |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 51 specifications ↓ Show less ↑43 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2600-4AK00-0AX0 |
|---|---|
| Type designation | MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948540411 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | FRAM |
|---|---|
| storage capacity / of the user memory | 2000 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 2000 bytes, configuration memory 40 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+12 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 1E+12 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | Fujitsu MB89R118 |
Mechanical data 4
| material | PA6.6 GF / stainless steel |
|---|---|
| color | black / silver |
| tightening torque / of the screw for securing the equipment / maximum | 6 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Ambient conditions 7
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +125 °C |
| ambient temperature: during storage | -40 ... +125 °C |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 3
| height | 20 mm |
|---|---|
| diameter | 24 mm |
| fastening method | screwing (M8) |
Product features, product functions, product components / general 2
| product feature: silicon-free | Yes |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 1
| certificate of suitability: IECEx | No |
|---|
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 7
| Net weight | 0.035 kg |
|---|---|
| Package dimensions | 24 × 20 × 24 mm |
| Country of origin | DE |
| Shipping weight | 0.535 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2600-4AK00-0AX0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units.
What is the HS code of MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units. for customs?
The tariff (HS) code on file for MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units. is 85235200.
What is the EAN of MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units.?
The EAN (GTIN) of MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units. is 4042948540411.
Where does MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units. ship from, and how fast?
MDS D428 transponder Transponder MDS D428 for RF200/RF300 ISO/MOBY D Screw transponder M8 long; ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 20 mm (DxH); SW22; with support minimum order quantity 5 units. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
