- Part number
- 6GT2600-4AG00
- Model no
- MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units.

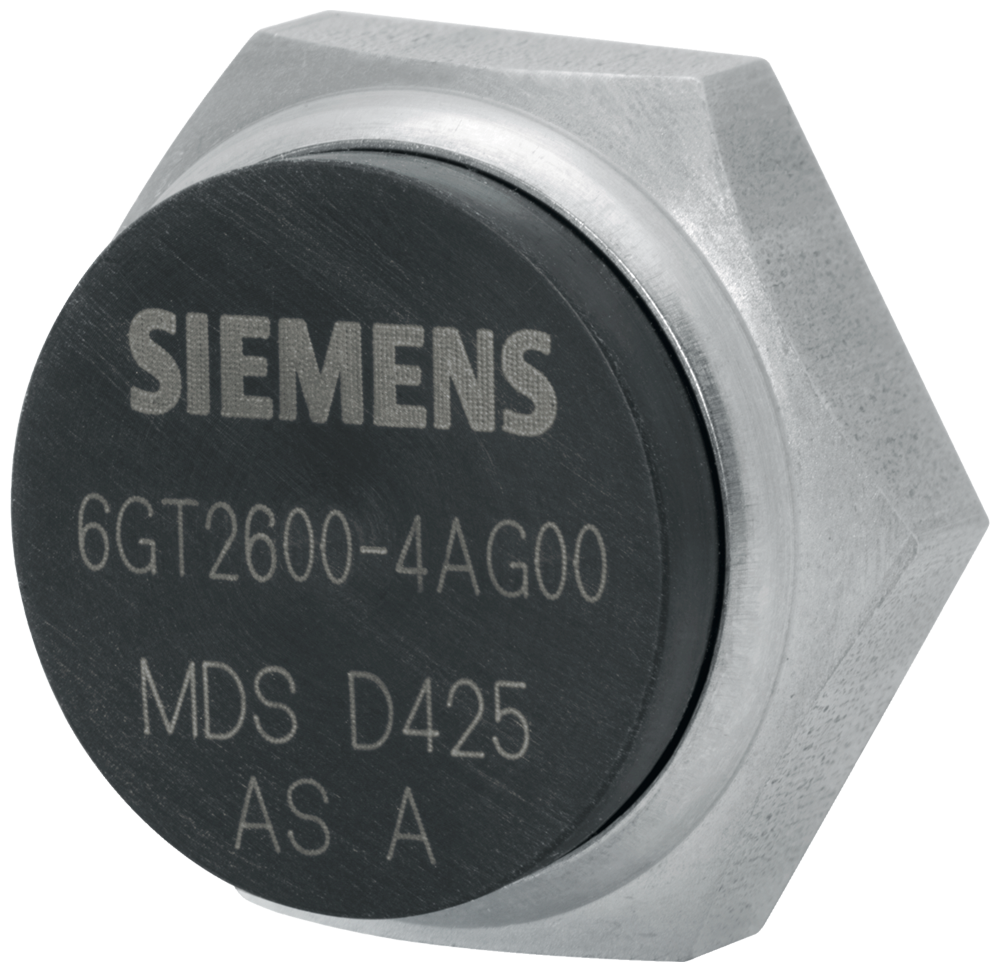

Siemens 6GT2600-4AG00 SIMATIC RF300 MDS D425 ISO 15693 2000 Byte M6 RFID Transponder
ISO 15693 RFID transponder, 2000 byte FRAM, M6 stainless thread, IP68/IPx9K, -40 to +125C.
Description
About the MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units.
About the MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units.
The Siemens 6GT2600-4AG00 MDS D425 is a short M6 screw-in transponder for the SIMATIC RF200/RF300 and MOBY D systems, using the ISO 15693 protocol at 13.56 MHz. It carries 2000 bytes on a Fujitsu MB89R118 FRAM chip in a stainless-steel and PA6.6 GF body, sealed to IP68/IPx9K. At 24 mm diameter and 10 mm height it withstands -40 to +125 degrees C outside the read/write zone.
Certifications & Standards
- EPD
Selection Notes
At 6 N·m max tightening torque, well above the lowest-torque screw-in tag in this range, the stainless-steel M6 thread is the pick where panel space is tight and a smaller screw boss is machined into the fixture. The +125 degrees C outside-zone rating also makes it the better choice near heat sources than the standard-temperature screw-in tags in the same range, while memory and protocol stay identical across the family so no data-handling changes are needed when switching thread size.
Applications
The M6 thread suits compact tool holders, small metal brackets, and machine components in RF200/RF300 or MOBY D installations where a full M20 boss will not fit but the transponder still needs to sit flush against metal.
Specification
Full specification
General 3
| product type designation | MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units. |
|---|---|
| suitability for operation | RF200, RF300 |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 57 specifications ↓ Show less ↑49 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2600-4AG00 |
|---|---|
| Type designation | MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948570760 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | FRAM |
|---|---|
| storage capacity / of the user memory | 2000 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 2000 bytes, configuration memory 40 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+12 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 1E+12 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | Fujitsu MB89R118 |
Mechanical data 4
| material | PA6.6 GF / stainless steel |
|---|---|
| color | black / silver |
| tightening torque / of the screw for securing the equipment / maximum | 6 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Ambient conditions 7
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +125 °C |
| ambient temperature: during storage | -40 ... +125 °C |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 3
| height | 10 mm |
|---|---|
| diameter | 24 mm |
| fastening method | screwing (M6) |
Product features, product functions, product components / general 2
| product feature: silicon-free | Yes |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 2
| certificate of suitability: IECEx | No |
|---|---|
| MTBF | 228 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.93 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.88 kg |
| global warming potential [CO2 eq]: during operation | 0.00041 kg |
| global warming potential [CO2 eq]: after end of life | 0.05 kg |
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 7
| Net weight | 0.02 kg |
|---|---|
| Package dimensions | 24 × 10 × 24 mm |
| Country of origin | DE |
| Shipping weight | 0.52 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2600-4AG00
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units.
What is the HS code of MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units. for customs?
The tariff (HS) code on file for MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units. is 85235200.
What is the EAN of MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units.?
The EAN (GTIN) of MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units. is 4042948570760.
Where does MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units. ship from, and how fast?
MDS D425 transponder Transponder MDS D425 for RF200/RF300 ISO/MOBY D Screw transponder M6 short, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 24x 10 mm (DxH); SW22; minimum order quantity 5 units. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
