- Part number
- 6GT2600-4AE00
- Model no
- MDS D421 transponder Transponder MDS D421 for RF200/RF300 ISO tool pill in metal, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM user memory 10x 4.5 mm (DxH); Minimum order quantity 10 units.

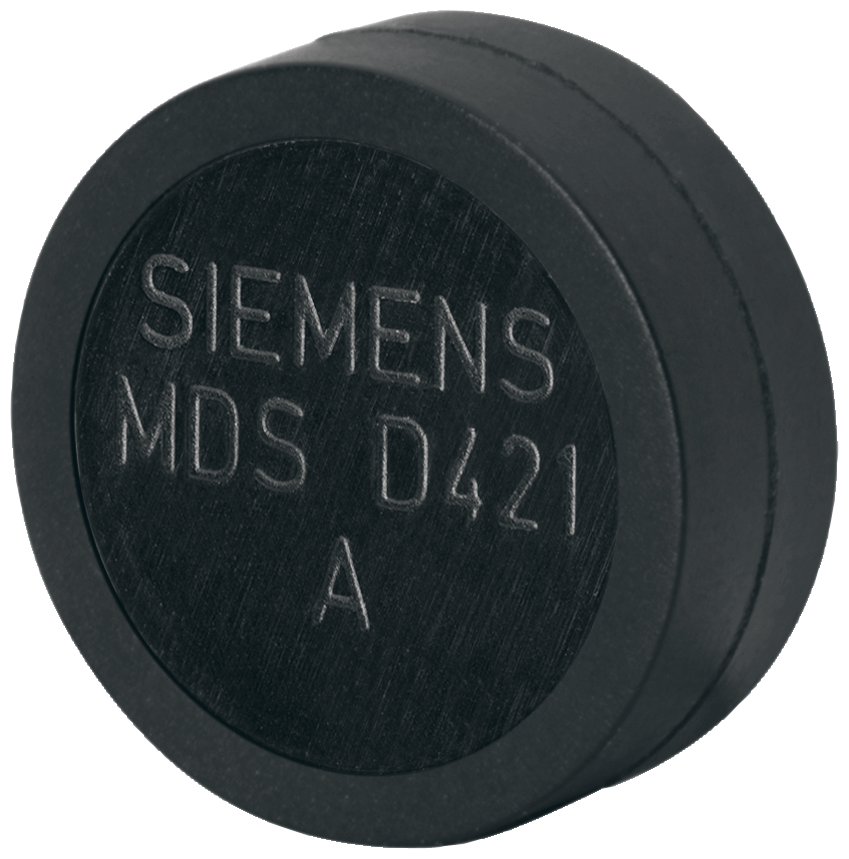

Siemens 6GT2600-4AE00 SIMATIC RF300 MDS D421 ISO 15693 Tool Pill FRAM RFID Transponder
Siemens MDS D421 ISO 15693 tool-pill transponder, 2000-byte FRAM, embeds in metal, IP67.
Description
About the MDS D421 transponder Transponder MDS D421 for RF200/RF300 ISO tool pill in metal, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM user memory 10x 4.5 mm (DxH); Minimum order quantity 10 units.
About the MDS D421 transponder Transponder MDS D421 for RF200/RF300 ISO tool pill in metal, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM user memory 10x 4.5 mm (DxH); Minimum order quantity 10 units.
The Siemens 6GT2600-4AE00 is an MDS D421 tool-pill transponder for the RF200 and RF300 read/write systems, a 10 x 4.5 mm epoxy-resin pill built for embedding in metal tool bodies, with a Fujitsu MB89R118 chip for ISO 15693 operation at 13.56 MHz and 2000 bytes of FRAM user memory. It glues into a drilled pocket with zero recommended clearance from surrounding metal and carries an IP67/IPx9K rating.
Certifications & Standards
- EPD
Selection Notes
At 10 mm diameter with zero mounting clearance, the 6GT2600-4AE00 is built to embed flush in a metal tool holder or cutting tool body, unlike the surface-mounted MDS D460 pill, which needs 10 mm of standoff from metal. It shares the same Fujitsu FRAM chip and 2000-byte memory, so write endurance and capacity are identical between the two; the choice comes down to whether the tag needs to sit on a surface (MDS D460) or inside a metal bore (MDS D421). Without a listed MTBF figure in the source data, plan replacement intervals from the 10-year data retention and the shock/vibration rating instead.
Specification
Full specification
General 3
| product type designation | MDS D421 transponder Transponder MDS D421 for RF200/RF300 ISO tool pill in metal, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM user memory 10x 4.5 mm (DxH); Minimum order quantity 10 units. |
|---|---|
| suitability for operation | RF200, RF300 |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 55 specifications ↓ Show less ↑47 more values in Identification, Memory, Mechanical data, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2600-4AE00 |
|---|---|
| Type designation | MDS D421 transponder Transponder MDS D421 for RF200/RF300 ISO tool pill in metal, ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM user memory 10x 4.5 mm (DxH); Minimum order quantity 10 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948527108 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | FRAM |
|---|---|
| storage capacity / of the user memory | 2000 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 2000 bytes, configuration memory 40 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+12 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 1E+12 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | Fujitsu MB89R118 |
Mechanical data 3
| material | Epoxy resin |
|---|---|
| color | black |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Ambient conditions 10
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +100 °C |
| ambient temperature: during storage | -40 ... +100 °C |
| protection class IP | IP67/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s2 |
| vibrational acceleration design, dimensions and weights | 200 m/s2 |
| height | 4.5 mm |
| diameter | 10 mm |
| fastening method | gluing |
Product features, product functions, product components / general 2
| product feature: silicon-free | Yes |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 1
| certificate of suitability: IECEx | No |
|---|
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.93 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.88 kg |
| global warming potential [CO2 eq]: during operation | 0.00041 kg |
| global warming potential [CO2 eq]: after end of life | 0.05 kg |
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 7
| Net weight | 0.01 kg |
|---|---|
| Package dimensions | 10 × 4 × 10 mm |
| Country of origin | Romania |
| Shipping weight | 0.51 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
