- Part number
- 6GT2600-4AB00
- Model no
- MDS D460 transponder Transponder MDS D460 for RF200/RF300 ISO/MOBY D PILL ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 16x 3 mm (DxH); Minimum order quantity 50 units.

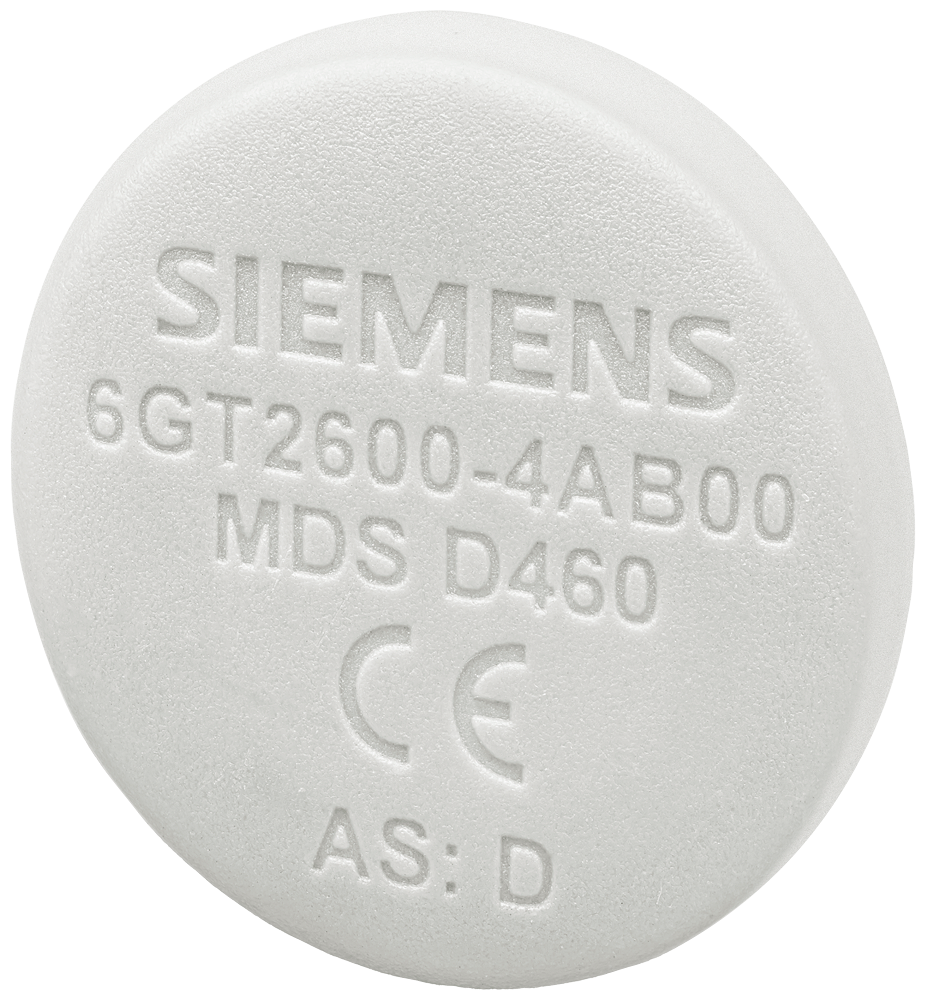

Siemens 6GT2600-4AB00 SIMATIC RF300 MDS D460 ISO 15693 2000-Byte FRAM RFID Transponder
Siemens MDS D460 ISO 15693 pill transponder, 2000-byte FRAM, 1E12 write cycles, IP67.
Description
About the MDS D460 transponder Transponder MDS D460 for RF200/RF300 ISO/MOBY D PILL ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 16x 3 mm (DxH); Minimum order quantity 50 units.
About the MDS D460 transponder Transponder MDS D460 for RF200/RF300 ISO/MOBY D PILL ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 16x 3 mm (DxH); Minimum order quantity 50 units.
The Siemens 6GT2600-4AB00 is an MDS D460 pill-shaped transponder for the RF200, RF300 and MOBY D read/write systems, a 16 x 3 mm PPS body with a Fujitsu MB89R118 chip built for ISO 15693 operation at 13.56 MHz and 2000 bytes of FRAM user memory. FRAM gives it up to 1E+12 write cycles, far beyond the EEPROM-based transponders in this series, and it carries an IP67/IPx9K rating.
Certifications & Standards
- EPD
Selection Notes
The FRAM chip is what sets the 6GT2600-4AB00 apart from the EEPROM-based buttons and labels in this series: 1E+12 write cycles versus the 100000-cycle rating on the MDS D1xx/D3xx parts, so it fits processes that rewrite the same tag on every cycle rather than writing once and reading many times. Its 2000-byte capacity is also the largest in the family, well beyond the 992 bytes on the MDS D324/D339 buttons. At 16 mm diameter and 10 mm minimum metal clearance, it is smaller and needs less standoff than the MDS D339, trading top-end temperature range (85 C read/write, 100 C outside) for size and write endurance.
Specification
Full specification
General 3
| product type designation | MDS D460 transponder Transponder MDS D460 for RF200/RF300 ISO/MOBY D PILL ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 16x 3 mm (DxH); Minimum order quantity 50 units. |
|---|---|
| suitability for operation | RF200, RF300, MOBY D |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 56 specifications ↓ Show less ↑48 more values in Identification, Memory, Mechanical data, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2600-4AB00 |
|---|---|
| Type designation | MDS D460 transponder Transponder MDS D460 for RF200/RF300 ISO/MOBY D PILL ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 16x 3 mm (DxH); Minimum order quantity 50 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169668705 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | FRAM |
|---|---|
| storage capacity / of the user memory | 2000 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 2000 bytes, configuration memory 40 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+12 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 1E+12 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | Fujitsu MB89R118 |
Mechanical data 3
| material | PPS |
|---|---|
| color | black |
| mounting distance / relating to metal surfaces / recommended / minimum | 10 mm |
Ambient conditions 10
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +100 °C |
| ambient temperature: during storage | -40 ... +100 °C |
| protection class IP | IP67/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration design, dimensions and weights | 200 m/s2 |
| height | 3 mm |
| diameter | 16 mm |
| fastening method | patching, gluing |
Product features, product functions, product components / general 1
| product feature: printable | No |
|---|
Standards, specifications, approvals 2
| certificate of suitability: IECEx | No |
|---|---|
| MTBF | 228 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.93 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.88 kg |
| global warming potential [CO2 eq]: during operation | 0.00041 kg |
| global warming potential [CO2 eq]: after end of life | 0.05 kg |
Accessories 1
| accessories | Mounting support and spacer |
|---|
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 7
| Net weight | 3 kg |
|---|---|
| Package dimensions | 16 × 3 × 16 mm |
| Country of origin | Malaysia |
| Shipping weight | 3.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
