- Part number
- 6GT2600-3AC00
- Model no
- MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units.

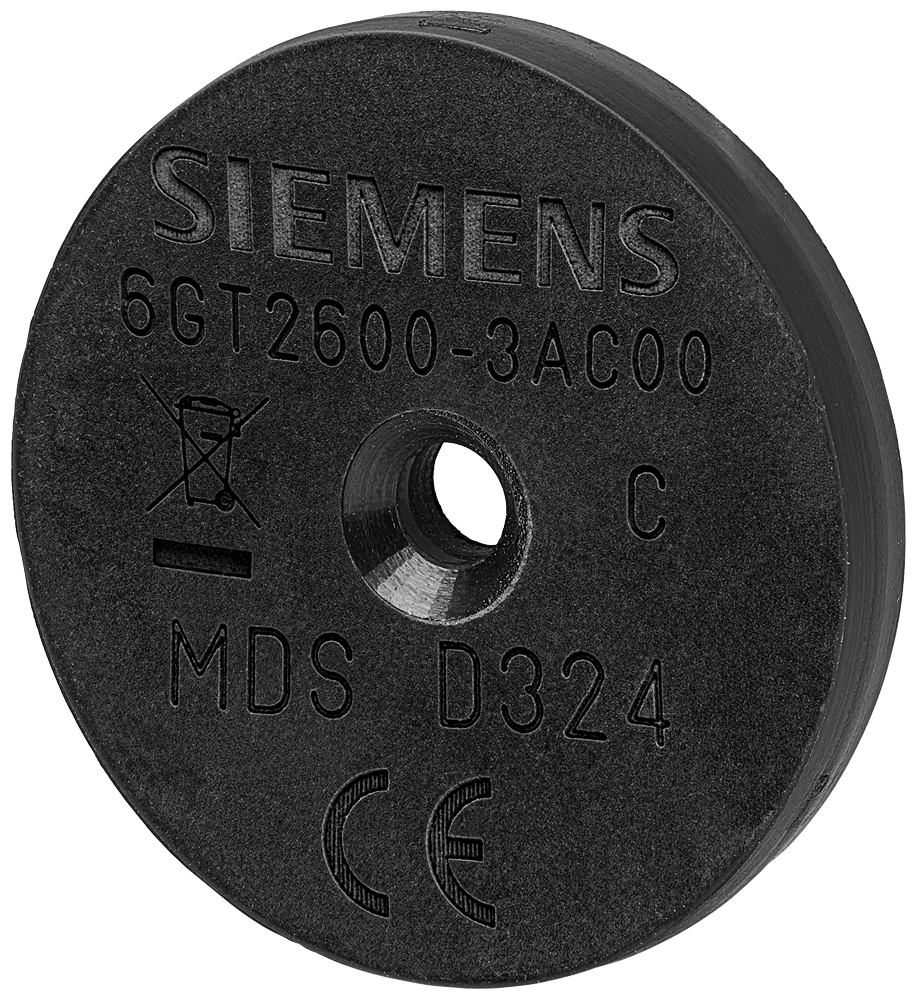

Siemens 6GT2600-3AC00 SIMATIC RF300 MDS D324 ISO 15693 992-Byte RFID Transponder
Siemens MDS D324 ISO 15693 button transponder, 992-byte EEPROM, IP67, heat-rated to 140 C.
Description
About the MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units.
About the MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units.
The Siemens 6GT2600-3AC00 is an MDS D324 transponder for the RF200, RF300 and MOBY D read/write systems, a 27 x 4 mm epoxy-resin button with an Infineon My-D SRF 55V10P chip built for ISO 15693 operation at 13.56 MHz and 992 bytes of EEPROM user memory. It withstands continuous operation up to 125 C, short excursions to 140 C outside the read/write zone, and is IP67 rated.
Certifications & Standards
- EPD
Selection Notes
Same 27 x 4 mm footprint and 992-byte memory as the 6GT2600-3AA10, but the 6GT2600-3AC00 trades the IECEx hazardous-location marking and the 220 C outside-zone rating for a lower 140 C ceiling and an epoxy-resin body rated IP67 rather than IP68/IPx9K. That makes it the standard choice for general machine-building environments that do not require Ex-zone certification, at a simpler build than the hazardous-location variant. Where the installation sits in a classified Ex zone or sees sustained heat above 140 C, the IECEx-rated MDS D339 in this series is the correct part instead.
Specification
Full specification
General 3
| product type designation | MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units. |
|---|---|
| suitability for operation | RF200, RF300, MOBY D |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 58 specifications ↓ Show less ↑50 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2600-3AC00 |
|---|---|
| Type designation | MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948411018 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 992 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 992 bytes, configuration memory 24 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | Infineon My-D SRF 55V10P |
Mechanical data 4
| material | Epoxy resin |
|---|---|
| color | black |
| tightening torque / of the screw for securing the equipment / maximum | 1 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 15 mm |
Ambient conditions 7
| ambient temperature: during read/write access | -25 ... +125 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +140 °C |
| ambient temperature: during storage | -40 ... +140 °C |
| protection class IP | IP67 |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 3
| height | 4 mm |
|---|---|
| diameter | 27 mm |
| fastening method | M3 screw, gluing |
Product features, product functions, product components / general 2
| product feature: silicon-free | Yes |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 2
| certificate of suitability: IECEx | No |
|---|---|
| MTBF | 171 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.93 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.88 kg |
| global warming potential [CO2 eq]: during operation | 0.00041 kg |
| global warming potential [CO2 eq]: after end of life | 0.05 kg |
Accessories 1
| accessories | Mounting support and spacer |
|---|
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 7
| Net weight | 0.02 kg |
|---|---|
| Package dimensions | 27 × 4 × 27 mm |
| Country of origin | DE |
| Shipping weight | 0.52 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2600-3AC00
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units.
What is the HS code of MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units. for customs?
The tariff (HS) code on file for MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units. is 85235200.
What is the EAN of MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units.?
The EAN (GTIN) of MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units. is 4042948411018.
Where does MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units. ship from, and how fast?
MDS D324 transponder Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
