- Part number
- 6GT2600-3AA10
- Model no
- MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units.

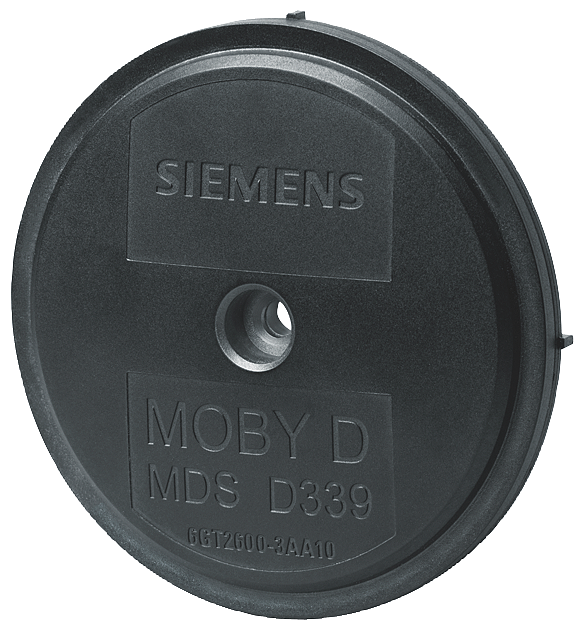

Siemens 6GT2600-3AA10 SIMATIC RF300 MDS D339 ISO 15693 220C Heat-Resistant RFID Transponder
Siemens MDS D339 ISO 15693 button transponder, 992-byte EEPROM, IP68, heat-rated to 220 C.
Description
About the MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units.
About the MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units.
The Siemens 6GT2600-3AA10 is an MDS D339 transponder for the RF200, RF300 and MOBY D read/write systems, an 85 x 15 mm PPS disc with an Infineon My-D SRF 55V10P chip built for ISO 15693 operation at 13.56 MHz and 992 bytes of EEPROM user memory. It withstands continuous operation up to 100 C and short excursions to 220 C outside the read/write zone, with IP68/IPx9K sealing and an IECEx hazardous-location marking.
Certifications & Standards
- IECEx
- EPD
Selection Notes
The 220 C outside-zone rating is the highest in the MDS D3xx button family, well above the 180 C ceiling of the MDS D124, and the IECEx marking (Ex nA II T2, Ex tD A22 IP68 T210) is scoped for Zone 2/22 rather than the Zone 0/20 marking on that smaller unit, so confirm the zone classification matches the installation before ordering. The 992-byte memory is roughly nine times the MDS D124's capacity, useful where the application writes a full process history onto the tag instead of just an ID. The quick-change holder accessory lets the transponder be swapped without redrilling the M5 mount, which matters on fixtures that see frequent tag replacement in the heat-cycling range this part is built for.
Specification
Full specification
General 3
| product type designation | MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units. |
|---|---|
| suitability for operation | RF200, RF300, MOBY D |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 59 specifications ↓ Show less ↑51 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, Logistics.
Identification 10
| Part number | 6GT2600-3AA10 |
|---|---|
| Type designation | MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948601723 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 992 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 992 bytes, configuration memory 24 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | Infineon My-D SRF 55V10P |
Mechanical data 4
| material | PPS |
|---|---|
| color | black |
| tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 30 mm |
Ambient conditions 8
| ambient temperature: during read/write access | -25 ... +100 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +220 °C |
| ambient temperature: during storage | -40 ... +100 °C |
| ambient condition / for operation | Operating temperature permanent up to 100 °C, at 220 °C: up to 2000 hours or 1500 temperature cycles, at 200 °C: up to 5000 hours or 3000 temperature cycles |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 3
| height | 15 mm |
|---|---|
| diameter | 85 mm |
| fastening method | M5 screw |
Product features, product functions, product components / general 2
| product feature: silicon-free | Yes |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 3
| certificate of suitability: IECEx | Yes |
|---|---|
| certificate of suitability: for IECEx / as marking | Ex: II 3 G Ex nA II T2, II 3 D Ex tD A22 IP68 T 210°C |
| MTBF | 228 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.93 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.88 kg |
| global warming potential [CO2 eq]: during operation | 0.00041 kg |
| global warming potential [CO2 eq]: after end of life | 0.05 kg |
Accessories 1
| accessories | Spacer, quick-change holder |
|---|
Logistics 7
| Net weight | 0.05 kg |
|---|---|
| Package dimensions | 85 × 15 × 85 mm |
| Country of origin | DE |
| Shipping weight | 0.55 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2600-3AA10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IECEx
- Environmental Product Declaration
Quick answers
Questions about the MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units.
What is the HS code of MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units. for customs?
The tariff (HS) code on file for MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units. is 85235200.
What is the EAN of MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units.?
The EAN (GTIN) of MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units. is 4042948601723.
Where does MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units. ship from, and how fast?
MDS D339 transponder Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
