- Part number
- 6GT2600-1AD00-0AX0
- Model no
- MDS D200 transponder Transponder MDS D200 for RF200/RF300 ISO/MOBY D, PVC ISO card, ISO 15693, Chip type TI TAGIT HFI, 256-byte user memory; 85x 54x 0.8 mm (LxWxH); Minimum order quantity 250 units.
Siemens 6GT2600-1AD00-0AX0 SIMATIC RF300 MDS D200 ISO 15693 PVC ISO Card Transponder
Siemens MDS D200 ISO 15693 PVC card, 256-byte EEPROM, IP67, printable both sides.
Description
About the MDS D200 transponder Transponder MDS D200 for RF200/RF300 ISO/MOBY D, PVC ISO card, ISO 15693, Chip type TI TAGIT HFI, 256-byte user memory; 85x 54x 0.8 mm (LxWxH); Minimum order quantity 250 units.
About the MDS D200 transponder Transponder MDS D200 for RF200/RF300 ISO/MOBY D, PVC ISO card, ISO 15693, Chip type TI TAGIT HFI, 256-byte user memory; 85x 54x 0.8 mm (LxWxH); Minimum order quantity 250 units.

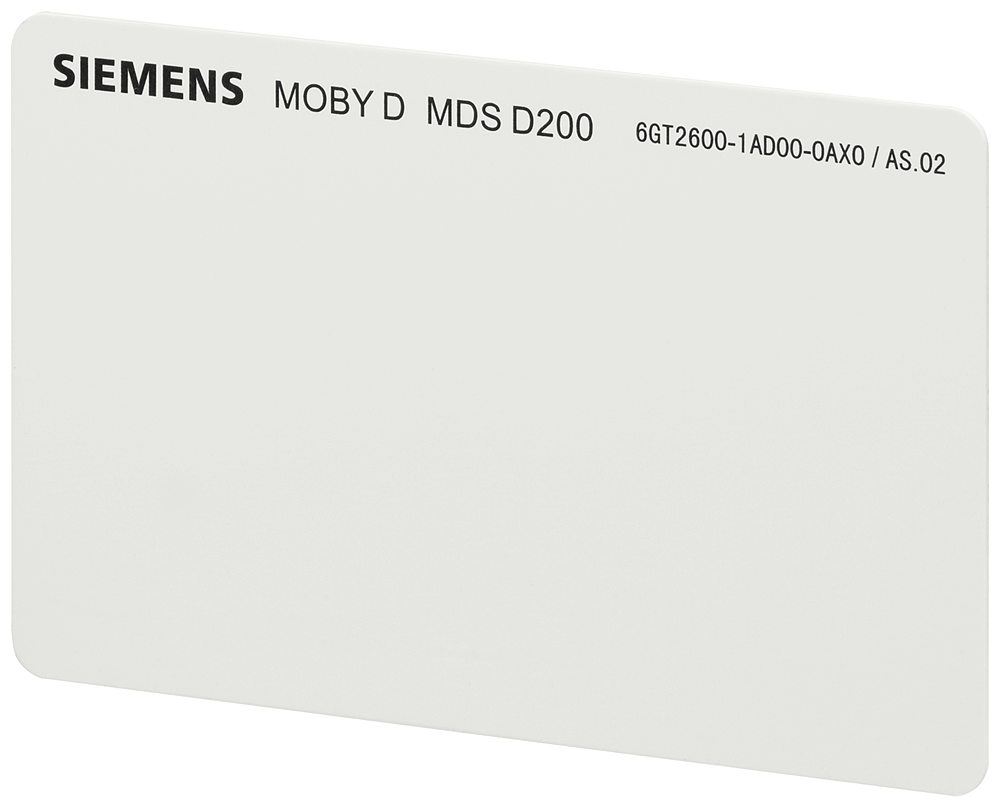

The Siemens 6GT2600-1AD00-0AX0 is an MDS D200 transponder for the RF200, RF300 and MOBY D read/write systems, a credit-card-format PVC ISO card (85 x 54 x 0.8 mm) with a TI Tag-it HFI chip built for ISO 15693 operation at 13.56 MHz and 256 bytes of EEPROM user memory. It is printable on both sides, IP67 rated, and specified for a -20 to +60 C operating range.
Selection Notes
The card format sets the 6GT2600-1AD00-0AX0 apart from the MDS D165/D261 sheet labels in this series: at 0.8 mm thick with 256 bytes of memory, it behaves like an access badge or asset card that a person carries or a fixture holds in a slot, rather than a label stuck onto a surface. Dual-side printing lets a name, ID number, or barcode go on the front while the chip stores the same reference for the reader. The -20 to +60 C range is narrower than the button transponders in this series, so it is meant for indoor, human-handled use rather than harsh machine environments.
Specification
Full specification
General 3
| product type designation | MDS D200 transponder Transponder MDS D200 for RF200/RF300 ISO/MOBY D, PVC ISO card, ISO 15693, Chip type TI TAGIT HFI, 256-byte user memory; 85x 54x 0.8 mm (LxWxH); Minimum order quantity 250 units. |
|---|---|
| suitability for operation | RF200, RF300, MOBY D |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 52 specifications ↓ Show less ↑44 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2600-1AD00-0AX0 |
|---|---|
| Type designation | MDS D200 transponder Transponder MDS D200 for RF200/RF300 ISO/MOBY D, PVC ISO card, ISO 15693, Chip type TI TAGIT HFI, 256-byte user memory; 85x 54x 0.8 mm (LxWxH); Minimum order quantity 250 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209655614 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 256 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 256 bytes, configuration memory 8 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | TI Tag-it HFI |
Mechanical data 3
| material | PVC laminated plastic |
|---|---|
| color | white |
| mounting distance / relating to metal surfaces / recommended / minimum | 25 mm |
Ambient conditions 6
| ambient temperature: during read/write access | -20 ... +60 °C |
|---|---|
| ambient temperature: outside the read/write area | -20 ... +60 °C |
| ambient temperature: during storage | -20 ... +60 °C |
| protection class IP | IP67 |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| resistance to mechanical stress | Shock and vibration according to ISO 10373 / ISO 7810, torsion and twisting according to ISO 10373 / ISO 7816-1 |
Design, dimensions and weights 4
| width | 54 mm |
|---|---|
| height | 0.8 mm |
| depth | 85 mm |
| fastening method | gluing, mounting bag (see accessories) |
Product features, product functions, product components / general 2
| product feature: printable | Yes |
|---|---|
| printing process | Printable on both sides |
Standards, specifications, approvals 2
| certificate of suitability: IECEx | No |
|---|---|
| MTBF | 228 a |
Accessories 1
| accessories | Fixing strap, holder, spacer |
|---|
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 7
| Net weight | 5 kg |
|---|---|
| Package dimensions | 54 × 1 × 86 mm |
| Country of origin | DE |
| Shipping weight | 6.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
