- Part number
- 6GT2600-1AB00-0AX0
- Model no
- Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units.

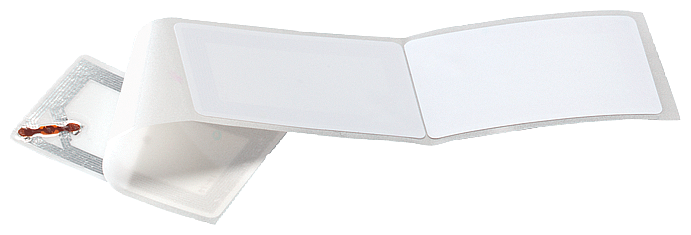

Siemens 6GT2600-1AB00-0AX0 SIMATIC RF300 MDS D165 ISO 15693 86x54mm HF RFID Label
Siemens MDS D165 HF ISO 15693 label, 112-byte EEPROM, 86x54mm PET, thermal-transfer printable.
Description
About the Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units.
About the Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units.
The Siemens 6GT2600-1AB00-0AX0 is an MDS D165 HF label for the RF200, RF300 and MOBY D read/write systems, an 86 x 54 x 0.3 mm adhesive PET label with an NXP I-Code SLI chip built for ISO 15693 operation at 13.56 MHz and 112 bytes of EEPROM user memory. It is printable with a thermal-transfer process, rated IP65, and applies by one-side adhesive to cartons, totes, or flat fixtures.
Selection Notes
At 86 x 54 mm, the 6GT2600-1AB00-0AX0 gives the applicator a larger print and read area than the compact MDS D261 label, which helps when the label also carries a printed barcode or human-readable text alongside the RFID chip. Its 112-byte user memory matches the standard MDS D1xx capacity, so it is the label to pick when a job needs ID-level data rather than the extended memory of the 316-byte MDS D261. Like the other adhesive labels in this series, plan on a 2-year usable storage window before application.
Specification
Full specification
General 3
| product type designation | Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units. |
|---|---|
| suitability for operation | RF200, RF300, MOBY D |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 49 specifications ↓ Show less ↑41 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2600-1AB00-0AX0 |
|---|---|
| Type designation | Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209654785 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 112 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 112 bytes, configuration memory 8 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | NXP I-Code SLI |
Mechanical data 3
| material | Top side + inlay: PET, antenna aluminum |
|---|---|
| color | white |
| mounting distance / relating to metal surfaces / recommended / minimum | 25 mm |
Ambient conditions 5
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -25 ... +85 °C |
| ambient temperature: during storage | 20 ... 30 °C |
| protection class IP | IP65 |
| resistance to mechanical stress | Maximum storage period: 2 years (determined by durability of the adhesive) |
Design, dimensions and weights 4
| width | 54 mm |
|---|---|
| height | 0.3 mm |
| depth | 86 mm |
| fastening method | one-side adhesible |
Product features, product functions, product components / general 2
| product feature: printable | Yes |
|---|---|
| printing process | Thermal transfer process |
Standards, specifications, approvals 1
| certificate of suitability: IECEx | No |
|---|
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 7
| Net weight | 1 kg |
|---|---|
| Package dimensions | 86 × 54 × 1 mm |
| Country of origin | DE |
| Shipping weight | 1.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2600-1AB00-0AX0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units.
What is the HS code of Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units. for customs?
The tariff (HS) code on file for Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units. is 85235200.
What is the EAN of Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units.?
The EAN (GTIN) of Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units. is 4011209654785.
Where does Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units. ship from, and how fast?
Transponder MDS D165 HF label MDS D165 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 86x 54x 0.3 mm (LxWxH); minimum order quantity 1000 units. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
