- Part number
- 6GT2600-1AA01-0AX0
- Model no
- Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units.
Siemens 6GT2600-1AA01-0AX0 SIMATIC RF300 MDS D261 ISO 15693 55x55mm HF RFID Label
Siemens MDS D261 HF ISO 15693 label, 316-byte EEPROM, 55x55mm PET, thermal-transfer printable.
Description
About the Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units.
About the Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units.

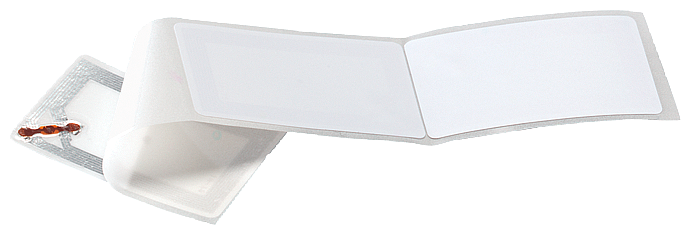

The Siemens 6GT2600-1AA01-0AX0 is an MDS D261 HF label for the RF200, RF300 and MOBY D read/write systems, a 55 x 55 x 0.3 mm adhesive PET label with an STM LRI2K chip built for ISO 15693 operation at 13.56 MHz and 316 bytes (2528 bits) of EEPROM user memory. It is printable with a thermal-transfer process and rated IP65, and it sticks to the target surface by one-side adhesive rather than a mechanical fastener.
Selection Notes
The 316-byte memory on the 6GT2600-1AA01-0AX0 is roughly triple the 112-byte capacity of the standard MDS D1xx labels in this series, which matters when a workflow writes routing or batch data onto the tag instead of just an ID. The tradeoff is shelf life: the label's adhesive is only rated for a 2-year storage period, so it should be applied from stock that turns over, not held as long-term spare inventory. At 55 x 55 mm it needs more surface area than the smaller MDS D165 label, so use it where the mounting surface has room and the extra memory is actually needed.
Specification
Full specification
General 3
| product type designation | Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units. |
|---|---|
| suitability for operation | RF200, RF300, MOBY D |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 49 specifications ↓ Show less ↑41 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2600-1AA01-0AX0 |
|---|---|
| Type designation | Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169669337 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 316 byte |
| type of memory organization | UID (permanently coded) 8 bytes, user memory 316 bytes, configuration memory 8 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | NXP I-Code SLI-x2 |
Mechanical data 3
| material | Top side + inlay: PET, antenna aluminum |
|---|---|
| color | white |
| mounting distance / relating to metal surfaces / recommended / minimum | 25 mm |
Ambient conditions 5
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -25 ... +85 °C |
| ambient temperature: during storage | 20 ... 30 °C |
| protection class IP | IP65 |
| resistance to mechanical stress | Maximum storage period: 2 years (determined by durability of the adhesive) |
Design, dimensions and weights 4
| width | 55 mm |
|---|---|
| height | 0.3 mm |
| depth | 55 mm |
| fastening method | one-side adhesible |
Product features, product functions, product components / general 2
| product feature: printable | Yes |
|---|---|
| printing process | Thermal transfer process |
Standards, specifications, approvals 1
| certificate of suitability: IECEx | No |
|---|
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 7
| Net weight | 1 kg |
|---|---|
| Package dimensions | 55 × 0 × 55 mm |
| Country of origin | DE |
| Shipping weight | 1.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2600-1AA01-0AX0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units.
What is the HS code of Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units. for customs?
The tariff (HS) code on file for Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units. is 85235200.
What is the EAN of Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units.?
The EAN (GTIN) of Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units. is 4019169669337.
Where does Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units. ship from, and how fast?
Transponder MDS D261 HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
