- Part number
- 6GT2600-0AG00
- Model no
- MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units

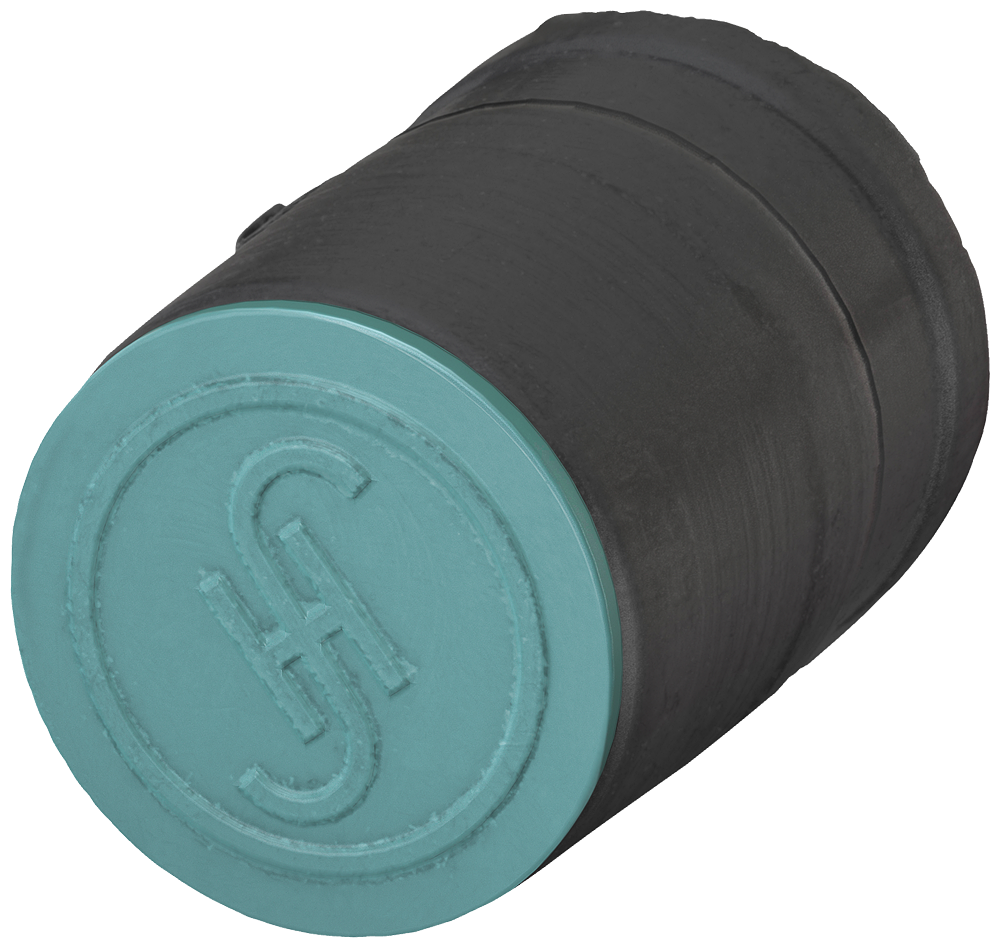

Siemens 6GT2600-0AG00 SIMATIC RF300 MDS D117 ISO 15693 Adhesive On-Metal RFID Transponder
Siemens MDS D117 adhesive on-metal ISO 15693 transponder, 4mm disc, 112-byte EEPROM.
Description
About the MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units
About the MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units
The Siemens 6GT2600-0AG00 is an MDS D117 adhesive on-metal transponder for the RF200 and RF300 read/write systems, a 4 x 5.2 mm PPS disc built for ISO 15693 operation at 13.56 MHz with 112 bytes of EEPROM user memory. It glues directly onto a steel surface with zero recommended clearance and carries an IP68/IPx9K rating, covering -25 to +85 C during read/write access.
Selection Notes
At 4 mm diameter, the 6GT2600-0AG00 is the smallest on-metal disc in the MDS D1xx range, and it is fixed by adhesive only, with no screw option. That makes it the pick for tagging small metal parts or fixtures where a mounting hole is not available, as long as the operating window stays within -25 to +85 C. Where the application needs a wider temperature span or a screw-secured mount, the M6 on-metal transponder in this series covers that case instead.
Specification
Full specification
General 3
| product type designation | MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units |
|---|---|
| suitability for operation | RF200, RF300 |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 49 specifications ↓ Show less ↑41 more values in Identification, Memory, Mechanical data, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GT2600-0AG00 |
|---|---|
| Type designation | MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106024819 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 112 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 112 bytes, configuration memory 8 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | NXP I-Code SLI |
Mechanical data 3
| material | PPS |
|---|---|
| color | black |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Ambient conditions 10
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +125 °C |
| ambient temperature: during storage | -40 ... +125 °C |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s2 |
| vibrational acceleration design, dimensions and weights | 200 m/s2 |
| height | 5.2 mm |
| diameter | 4 mm |
| fastening method | gluing |
Product features, product functions, product components / general 1
| product feature: printable | No |
|---|
Standards, specifications, approvals 2
| certificate of suitability: IECEx | No |
|---|---|
| MTBF | 228 a |
Logistics 7
| Net weight | 1 kg |
|---|---|
| Package dimensions | 4 × 5 × 4 mm |
| Country of origin | DE |
| Shipping weight | 1.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2600-0AG00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units
What is the HS code of MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units for customs?
The tariff (HS) code on file for MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units is 85235200.
What is the EAN of MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units?
The EAN (GTIN) of MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units is 4034106024819.
Where does MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units ship from, and how fast?
MDS D117 transponder transponder MDS D117 for RF200/RF300 ISO on-metal transponder, adhesive ISO 15693, chip type NXP ICODE SLI, 112 byte user memory; 4x 5 mm (DxH); minimum order quantity 10 units ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
