- Part number
- 6GT2600-0AC10
- Model no
- MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units

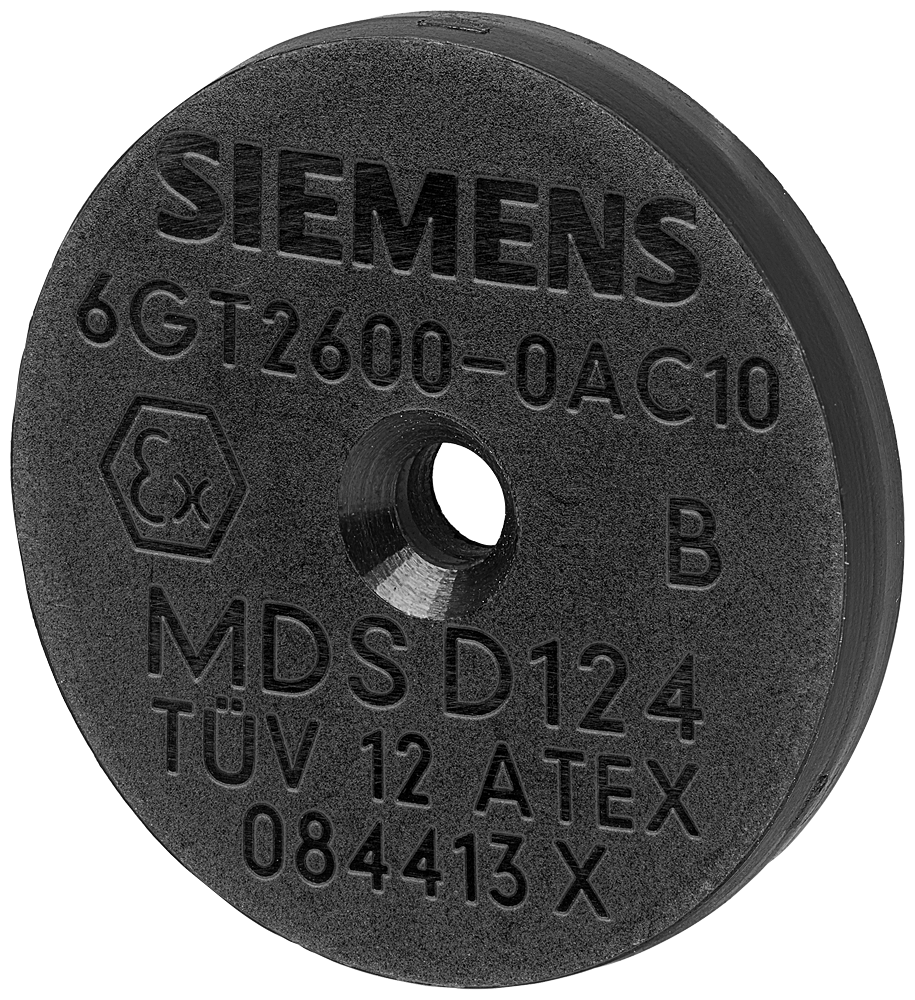

Siemens 6GT2600-0AC10 SIMATIC RF300 MDS D124 ISO 15693 Heat-Resistant RFID Transponder
Siemens MDS D124 ISO 15693 button transponder, 112-byte EEPROM, IP68, heat-rated to 180 C.
Description
About the MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units
About the MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units
The Siemens 6GT2600-0AC10 is an MDS D124 transponder for the RF200, RF300 and MOBY D read/write systems, built for ISO 15693 operation at 13.56 MHz with 112 bytes of EEPROM user memory. Its PPS housing withstands continuous temperatures up to 100 C and short excursions to 180 C outside the read/write zone, with IP68/IPx9K sealing for washdown and harsh-environment mounting.
Certifications & Standards
- IECEx
- EPD
Selection Notes
The 180 C outside-zone rating and IECEx marking (Ex ia IIC T6 to T3 Ga / Ex tD A22 IIIC T80 to T180 Da) separate the 6GT2600-0AC10 from the standard-range button transponders in the MDS D1xx line: it holds up on fixtures that pass through a paint bake, cure oven, or other heat step, and it is rated for mounting inside classified hazardous areas. Where the mount point sits within 15 mm of metal, the recommended clearance applies to keep read range consistent; on non-metal fixtures the transponder can sit closer. For processes that never see temperatures above 100 C and do not need Ex approval, the lower-cost standard-range button in this series is the better fit.
Specification
Full specification
General 3
| product type designation | MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units |
|---|---|
| suitability for operation | RF200, RF300, MOBY D |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 59 specifications ↓ Show less ↑51 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, Logistics.
Identification 10
| Part number | 6GT2600-0AC10 |
|---|---|
| Type designation | MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948517512 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 112 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 112 bytes, configuration memory 8 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | NXP I-Code SLI |
Mechanical data 4
| material | PPS |
|---|---|
| color | black |
| tightening torque / of the screw for securing the equipment / maximum | 1 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 15 mm |
Ambient conditions 8
| ambient temperature: during read/write access | -25 ... +125 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +180 °C |
| ambient temperature: during storage | -40 ... +125 °C |
| ambient condition / for operation | Operating temperature permanent up to 100 °C, at 180 °C: up to 5000 hours or 3000 temperature cycles |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 3
| height | 4 mm |
|---|---|
| diameter | 27 mm |
| fastening method | M3 screw, gluing |
Product features, product functions, product components / general 2
| product feature: silicon-free | Yes |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 3
| certificate of suitability: IECEx | Yes |
|---|---|
| certificate of suitability: for IECEx / as marking | Ex: II 1 G Ex ia IIC T6 to T3 Ga / II 1 D Ex ia IIIC T80 °C to T180 °C Da |
| MTBF | 171 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.93 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.88 kg |
| global warming potential [CO2 eq]: during operation | 0.00041 kg |
| global warming potential [CO2 eq]: after end of life | 0.05 kg |
Accessories 1
| accessories | Mounting support and spacer |
|---|
Logistics 7
| Net weight | 5 kg |
|---|---|
| Package dimensions | 85 × 54 × 1 mm |
| Country of origin | DE |
| Shipping weight | 6.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2600-0AC10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IECEx
- Environmental Product Declaration
Quick answers
Questions about the MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units
What is the HS code of MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units for customs?
The tariff (HS) code on file for MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units is 85235200.
What is the EAN of MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units?
The EAN (GTIN) of MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units is 4042948517512.
Where does MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units ship from, and how fast?
MDS D124 transponder transponder MDS D124 for RF200/RF300 ISO/MOBY D button heat-resistant up to +180 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 27x 4 mm (DxH); minimum order quantity 20 units ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
