- Part number
- 6GT2600-0AB10
- Model no
- MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units

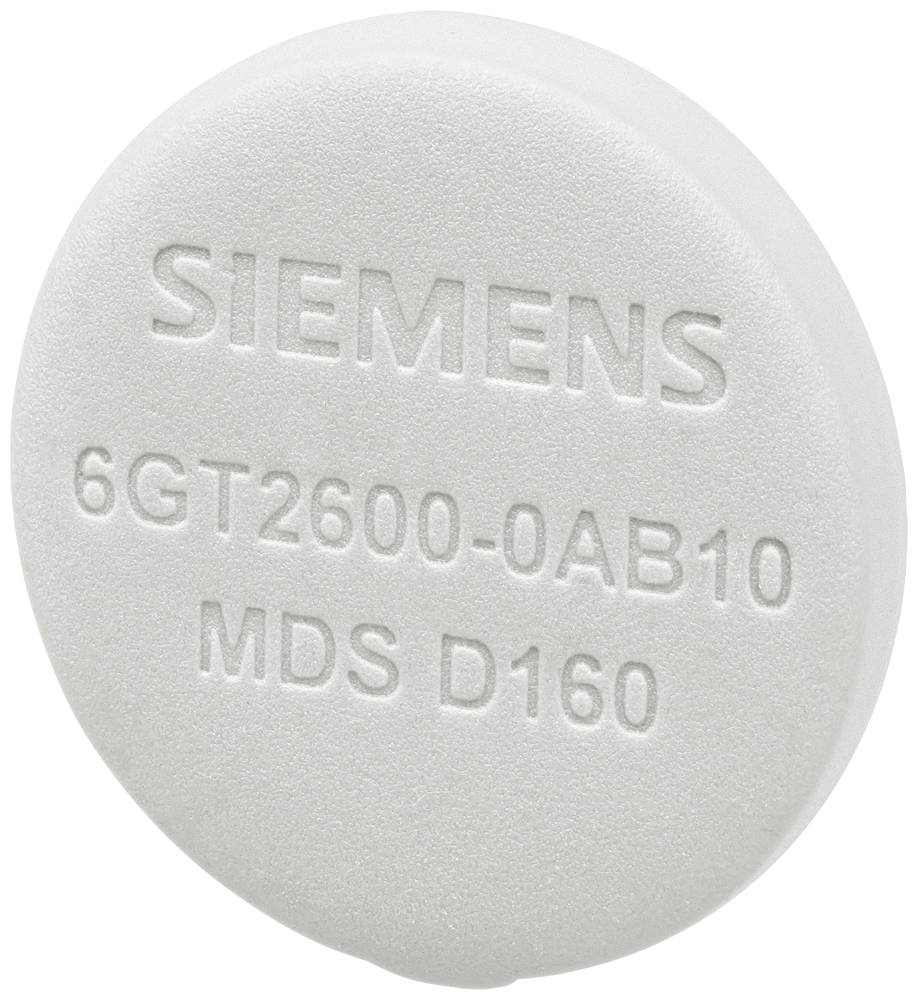

Siemens 6GT2600-0AB10 MOBY D MDS D160 Transponder ISO 15693 112 Byte RFID Transponder
MDS D160 transponder, ISO 15693, 13.56MHz, 112 byte memory, heat-resistant to 175C.
Description
About the MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units
About the MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units
The Siemens 6GT2600-0AB10 MDS D160 transponder works with RF200, RF300, and MOBY D readers using the ISO 15693 protocol at 13.56 MHz. It carries an NXP I-Code SLI chip with 112 bytes of user memory, withstands continuous exposure up to +175C, and ships in minimum order quantities of 100 units.
Certifications & Standards
- EPD
Selection Notes
The 112-byte user memory and 100,000-cycle write endurance suit reusable asset tags cycled through a wash or heat-treat process, since the tag tolerates +175C for at least 100 washing cycles and a one-time spike to +220C for 30 seconds. Mount it at least 10 mm from metal surfaces to avoid detuning, and plan orders around the 100-unit minimum quantity.
Specification
Full specification
General 3
| product type designation | MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units |
|---|---|
| suitability for operation | RF200, RF300, MOBY D |
| product brand name | SIMATIC RF |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 57 specifications ↓ Show less ↑49 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2600-0AB10 |
|---|---|
| Type designation | MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209681255 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 112 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 112 bytes, configuration memory 8 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | NXP I-Code SLI |
Mechanical data 3
| material | PPS |
|---|---|
| color | beige |
| mounting distance / relating to metal surfaces / recommended / minimum | 10 mm |
Ambient conditions 8
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +175 °C |
| ambient temperature: during storage | -25 ... +100 °C |
| ambient condition / for operation | Operating temperature permanent up to 100 °C, up to 175 °C min. 100 washing cycles, one time up to 220 °C for 30 s |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 400 m/s2 |
| vibrational acceleration | 100 m/s2 |
Design, dimensions and weights 3
| height | 3 mm |
|---|---|
| diameter | 16 mm |
| fastening method | patch, sewing, gluing |
Product features, product functions, product components / general 1
| product feature: printable | No |
|---|
Standards, specifications, approvals 2
| certificate of suitability: IECEx | No |
|---|---|
| MTBF | 228 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.93 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.88 kg |
| global warming potential [CO2 eq]: during operation | 0.00041 kg |
| global warming potential [CO2 eq]: after end of life | 0.05 kg |
Accessories 1
| accessories | Mounting support and spacer |
|---|
General Product Approval 1
| China RoHS Manufacturer Declara- Miscellaneous | tion |
|---|
Logistics 7
| Net weight | 1.2 kg |
|---|---|
| Package dimensions | 86 × 54 × 0 mm |
| Country of origin | Malaysia |
| Shipping weight | 1.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2600-0AB10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units
What is the HS code of MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units for customs?
The tariff (HS) code on file for MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units is 85235200.
What is the EAN of MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units?
The EAN (GTIN) of MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units is 4011209681255.
Where does MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units ship from, and how fast?
MDS D160 transponder transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
