- Part number
- 6GT2190-0AB00
- Model no
- fastening clip MOBY D/ E, RF300

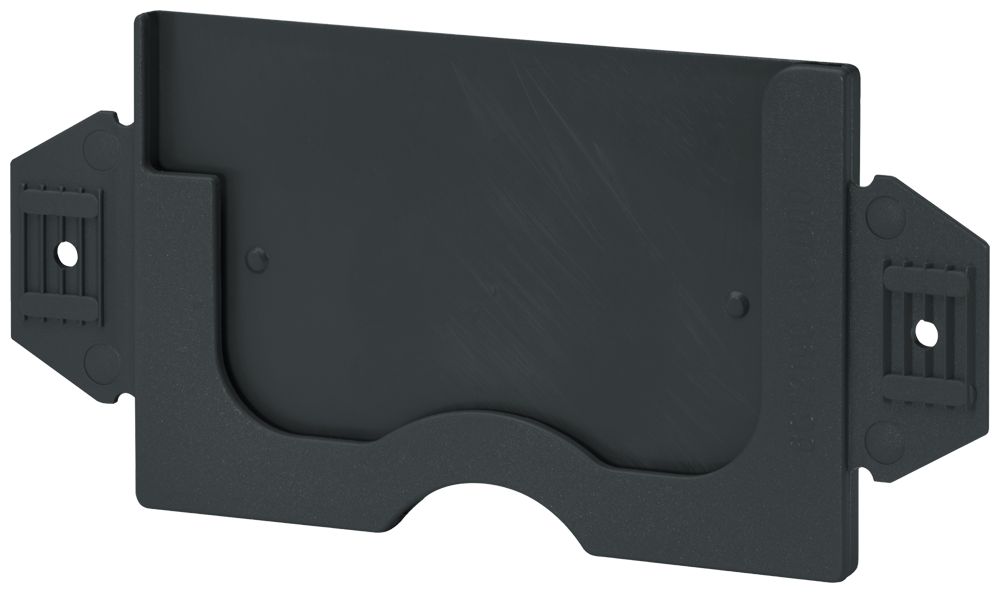

Siemens 6GT2190-0AB00 MOBY/RF300 Fixing Strap for Smartcard Transponders RFID Component
Fixing strap for credit-card-format transponders, MOBY D/E and RF300, PA6, 57x5x121mm.
Description
About the fastening clip MOBY D/ E, RF300
About the fastening clip MOBY D/ E, RF300
The Siemens 6GT2190-0AB00 is a fixing strap that holds a credit-card-format transponder for MOBY D/E, RF300, and RF600 systems, molded from anthracite PA 6 plastic. It screws directly onto non-metallic surfaces or clips into the separate 6GT2190-0AA00 spacer, measures 57 x 5 x 121 mm, and operates from -25 to +75C.
Selection Notes
Choose this strap when mounting a transponder directly to non-metallic equipment; pair it with the 6GT2190-0AA00 spacer instead when the mounting surface is metal, since the transponder needs standoff distance to avoid detuning. It fits the RF360T, RF610T, and MDS D100/D200/D400 transponder range.
Specification
Full specification
General 5
| product type designation | fastening clip MOBY D/ E, RF300 |
|---|---|
| product description | Fixing pocket for inserting a transponder with the dimensions of a credit card MOBY D/E/RF300/RF600; Fixing lug for MDS E600/611/MDS D100, D200 RF360T/RF610T; in connection With spacer 6GT2190-0AA00. |
| product brand name | SIMATIC RF |
| suitability for use | Can be screwed directly onto non-metallic surfaces or plugged into the spacer 6GT2190-0AA00 |
| suitability for operation | for holding the transponders RF360T, RF610T, MDS D100/D200/D400 |
Mechanical data 2
| material | PA 6 |
|---|---|
| color | anthracite |
Ambient conditions 3
| ambient temperature: during operation | -25 ... +75 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
Show all 30 specifications ↓ Show less ↑20 more values in Identification, Design, dimensions and weights, Logistics.
Identification 10
| Part number | 6GT2190-0AB00 |
|---|---|
| Type designation | fastening clip MOBY D/ E, RF300 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209654495 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Design, dimensions and weights 3
| width | 57 mm |
|---|---|
| height | 5 mm |
| depth | 121 mm |
Logistics 7
| Net weight | 0.012 kg |
|---|---|
| Package dimensions | 10 × 28 × 50 mm |
| Country of origin | DE |
| Shipping weight | 0.512 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2190-0AB00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the fastening clip MOBY D/ E, RF300
What is the HS code of fastening clip MOBY D/ E, RF300 for customs?
The tariff (HS) code on file for fastening clip MOBY D/ E, RF300 is 39269097.
What is the EAN of fastening clip MOBY D/ E, RF300?
The EAN (GTIN) of fastening clip MOBY D/ E, RF300 is 4011209654495.
Where does fastening clip MOBY D/ E, RF300 ship from, and how fast?
fastening clip MOBY D/ E, RF300 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
