Siemens 6GT2091-4LN10 SIMATIC RF Cable RS422 Sub-D/M12 10 m RFID Cable

% $-114.84
Siemens 6GT2091-4LN10 SIMATIC RF cable RS422 Sub-D/M12 - 10 m RFID cable
Siemens 6GT2091-4LN10 SIMATIC RF cable RS422 Sub-D/M12 - 10 m RFID cable

Siemens 6GT2091-4LN10 SIMATIC RF Cable RS422 Sub-D/M12 10 m RFID Cable

Brand: Siemens
Reference No: 6GT2091-4LN10
Catalog No: 6GT2091-4LN10
Series: SIMATIC RFID
Tariff Code (HS): 85444290
Rated Voltage: 300 V
Communication: RS422
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$114.84

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

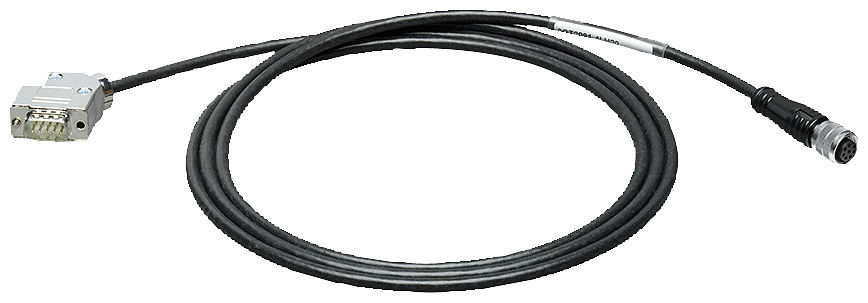

The Siemens 6GT2091-4LN10 is a pre-assembled SIMATIC RF connection cable that links a reader to the RF120C communication module over a 10 m run. It terminates in a 9-pin Sub-D male connector at 45 degrees and an 8-pin M12 female connector, carries 6 cores rated to 300 V maximum, and uses a PUR outer sheath rated -30...+80 C for trailing applications.

Technical Specifications

SKU 6GT2091-4LN10
Brand Siemens
Series SIMATIC RF
Product Type Designation Cable RS422, Sub-D / M12
Cable Designation L-YC11Y 6x1x0.25 6x24AWG CM
Suitability for Use Plug-in cable for connecting a reader to the RF120C communication module
Wire Length 10 m
Number of Electrical Connections 2
Type of Electrical Connection Sub-D (male, 9 pin, 45 degrees) / M12 (female, 8 pin, straight)
Loop Resistance per Length (max) 160 mOhm/m
Insulation Resistance Coefficient 20 GOhm x m
Max Operating Voltage 300 V
Number of Electrical Cores 6
Shield Design Braided shield made of tin-plated copper wires
Outer Diameter of Cable Sheath 5.4 mm (+/- 0.2 mm)
Material of Wire Insulation PVC
Material of Cable Sheath PUR
Color of Data Wire Insulation DIN 47100
Color of Cable Sheath Black
Bending Radius, Single Bend (min) 21.6 mm
Bending Radius, Multiple Bends (min) 43 mm
Bending Radius, Continuous Bending 75 mm
Number of Bending Cycles 3,000,000
Max Tensile Load 200 N
Weight per Length 45 kg/km
Ambient Temperature, Operation/Storage/Transport/Installation -30 ... +80 C
Fire Behavior Flame resistant per IEC 60332-1-2
Burning Behavior Class (EN 13501-6) Eca
Chemical Resistance to Mineral Oil Resistant
Chemical Resistance to Grease Resistant
UV Resistance Resistant
Silicon-Free Yes
UL/ETL Listing (300 V rating) Yes, CM (cable without plug only)
Country of Origin DE
Net Weight 0.523 kg

Certifications & Standards

  • EAC

Selection Notes

This 10 m length covers longer runs between the reader and the RF120C module than the 5 m variant, without exceeding the 200 N tensile rating when routed through a drag chain. Choose the shorter cable when the reader mounts within a few meters of the module, since excess slack in a fixed installation adds no benefit and increases loop resistance along the RS422 line.

Technical Details

Short Description
SIMATIC RF connection cable, RS422 Sub-D/M12, 10 m, PUR sheath, 300 V max.
Rated Voltage (VAC)
300 V
Catalog No
6GT2091-4LN10
Standards
EAC approval
Delivery Date (Days)
10-15 days
Model Number
6GT2091-4LN10
Tariff Code
85444290
