- Part number
- 6GT2003-0FA00
- Model no
- RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station.

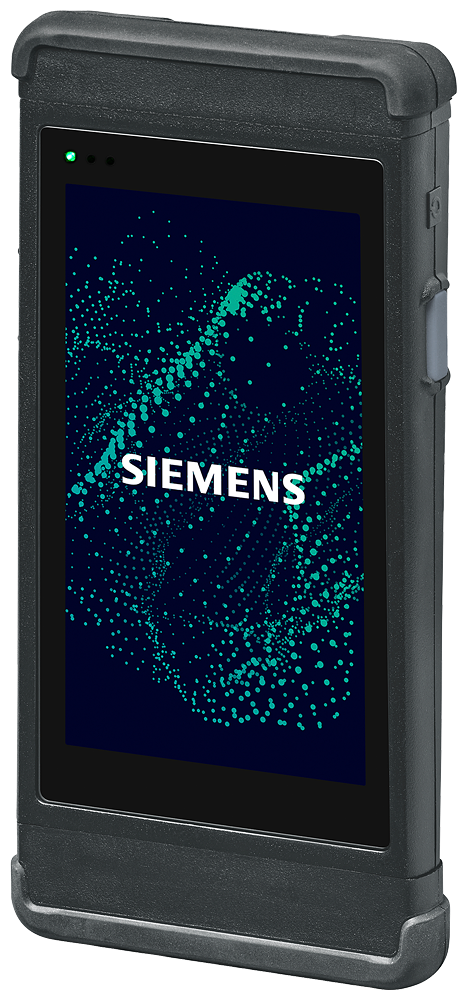

Siemens 6GT2003-0FA00 SIMATIC RF160B Mobile HF/UHF RFID Handheld Reader Basic Device
SIMATIC RF160B mobile handheld RFID reader basic device, HF/UHF, Android 9, IP65, no docking station.
Description
About the RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station.
About the RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station.
The Siemens 6GT2003-0FA00 RF160B is a mobile handheld RFID reader basic device for the RF360H and RF660H modules, covering both RF200/300 HF and RF600 UHF tags from one terminal. It runs a modified Android 9.0 with a 4.8-inch, 1280x720 TFT touch display, carries IP65 protection, and ships with a rechargeable lithium-ion battery rated for about 9.5 hours; the charging/docking station is sold separately.
Selection Notes
This is the basic device only - it does not include the charging/docking station, spare battery, or pistol handle, which are ordered separately as accessories. Because it covers both HF (RF200/300 via RF360H) and UHF (RF600 via RF660H) modules from the same terminal, it suits mixed-tag environments where a fixed reader per frequency band would otherwise be needed at each checkpoint.
Specification
Full specification
General 3
| product type designation | RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | for RFID modules RF360H/RF660H |
Optical data 5
| design of image sensor / of the camera | OV5645 (5 MP) |
|---|---|
| fastening method / of lens | Integrated |
| type of light source | LED |
| picture recording frequency / maximum | 60 Hz |
| type of focusing | autofocus |
Supply voltage, current consumption, power loss 5
| type of current supply | Battery operation or mains operation via docking station |
|---|---|
| type of battery | Lithium ion accumulator, fast charging capability |
| type of battery / as back-up battery / integrated | supercapacitor; 10 F; 2.7 V |
| battery capacity | 6 A·h |
| operating period / with standard battery / typical | 9.5 h |
Show all 50 specifications ↓ Show less ↑37 more values in Identification, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Standards, specifications, approvals, Accessories, Radio Equipment Type Approval Certificate Dangerous goods, Logistics.
Identification 10
| Part number | 6GT2003-0FA00 |
|---|---|
| Type designation | RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106026738 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Ambient conditions 5
| ambient temperature: during operation | -20 ... +50 °C |
|---|---|
| ambient temperature: during storage | -20 ... +60 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 90 % |
| height of fall / maximum | 1.2 m |
| protection class IP | IP65 |
Design, dimensions and weights 3
| width | 82 mm |
|---|---|
| height | 174 mm |
| depth | 28 mm |
Product features, product functions, product components / general 6
| design of the display | 4.8" TFT color display with LED backlight, 1280 x 720 pixels |
|---|---|
| operator element version | 2 keys and touch display |
| design of acoustic signaling element | micro speaker |
| design of the interface | WLAN, USB and Ethernet via charging station |
| storage capacity: of the RAM | 2000 Mibyte |
| storage capacity: of the data and program memory | 16000 Mibyte |
Product functions / management, configuration, engineering 3
| operating system / pre-installed | Android 9.0, modified |
|---|---|
| product function / of the software | App for RFID functionality HF+UHF |
| type of programming | API available |
Standards, specifications, approvals 1
| certificate of suitability | RE Directive 2014/53/EU |
|---|
Accessories 1
| accessories | charging/docking station with USB and Ethernet interface, spare battery , pistol handle |
|---|
Radio Equipment Type Approval Certificate Dangerous goods 1
| Industry Canada (IC) Miscellaneous Dangerous goods in- | formation |
|---|
Logistics 7
| Net weight | 0.4 kg |
|---|---|
| Package dimensions | 230 × 150 × 63 mm |
| Country of origin | DE |
| Shipping weight | 0.9 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2003-0FA00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station.
What is the HS code of RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station. for customs?
The tariff (HS) code on file for RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station. is 84713000.
What is the EAN of RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station.?
The EAN (GTIN) of RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station. is 4034106026738.
Where does RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station. ship from, and how fast?
RF160B mobile handheld terminal (basic device) SIMATIC RF160B RFID mobile reader basic device for RF200/300 (HF) and RF600 (UHF) with user software and rechargeable battery; without charging/docking station. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
