- Part number
- 6GT2002-0JE40
- Model no
- RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300)
Siemens has announced the end of 6GT2002-0JE40
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

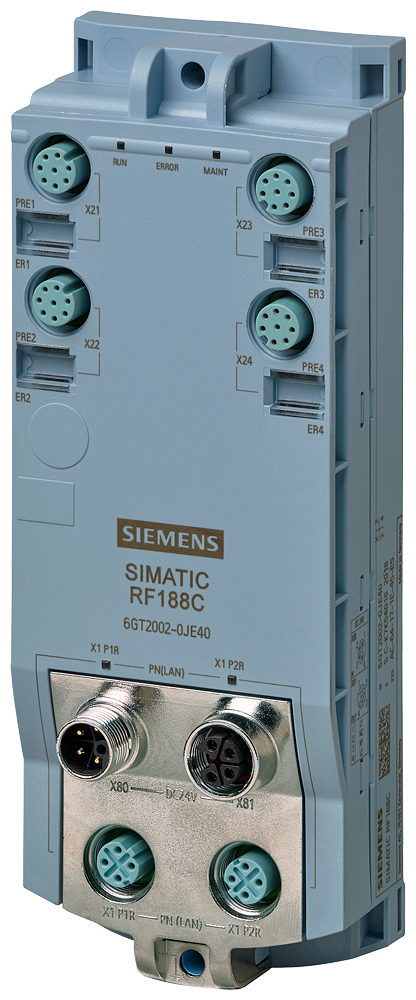

Siemens 6GT2002-0JE40 SIMATIC RFID RF188C PROFINET Communication Module 4 Readers
SIMATIC RFID RF188C communication module, 4 readers, PROFINET/EtherNet-IP/OPC UA, IP67.
Description
About the RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300)
About the RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300)
The Siemens 6GT2002-0JE40 RF188C is an RFID communication module that connects 4 RF200/300/1000 or MV300/400/500 readers to PROFINET, EtherNet/IP, or OPC UA over Industrial Ethernet at 100 Mbit/s. It also provides an RS422/RS232 point-to-point serial link at up to 921.6 kbit/s per reader channel and carries IP67 protection for direct field mounting close to the read points.
Certifications & Standards
- EPD
Selection Notes
Four reader ports make the RF188C the node to choose for a multi-lane sorting or tracking station, since one module and one PROFINET connection replace what would otherwise take two RF186C nodes. Up to two of the four ports can drive an RF1000 or MV300 reader instead of RF200/300; plan port assignment accordingly if the application mixes reader families on the same node.
Specification
Full specification
General 3
| product type designation | RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300) |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | IE / PN network together with RF200/300/1000 MV300/400/500 |
Transfer rate 2
| transfer rate / for Industrial Ethernet | 100 Mbit/s |
|---|---|
| transfer rate / at the point-to-point connection / serial / maximum | 921.6 kbit/s |
Interfaces 7
| design of the interface / for point-to-point connection | RS422/RS232 |
|---|---|
| number of readers / connectable | 4 |
| type of electrical connection: of Industrial Ethernet interface | M12, d-coded |
| type of electrical connection: for supply voltage | M12, L-coded |
| design of the interface / to the reader / for communication | M12, 8-pin |
| number of digital inputs | 0 |
| number of digital outputs | 0 |
Show all 75 specifications ↓ Show less ↑63 more values in Identification, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GT2002-0JE40 |
|---|---|
| Type designation | RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047623410126 |
| ETIM class | EC001604 |
| eCl@ss | 27242608 |
Mechanical data 3
| material | Thermoplastic (Valox 467, fiberglass reinforced) |
|---|---|
| color | Al-grey 2001 |
| tightening torque / of the screw for securing the equipment / maximum | 3 N·m |
Supply voltage, current consumption, power loss 5
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20.4 ... 28.8 V |
| consumed current: at DC / at 24 V / without connected devices / typical | 0.13 A |
| consumed current: from supply voltage 1L+ / maximum | 4 A |
| continuous current / for loop-through to further bus nodes / at DC / maximum | 12 A |
Ambient conditions 12
| ambient temperature: during operation | -25 ... +55 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| protection class IP | IP67 |
| shock resistance | according to IEC 60068-2-27 and IEC 60068-2-6 |
| shock acceleration | 300 m/s2 |
| vibrational acceleration design, dimensions and weights | 40 m/s2 |
| width | 60 mm |
| height | 45 mm |
| depth | 165 mm |
| fastening method | 2 M4 screws |
| wire length / for RS 422 interface / maximum | 1000 m |
Product features, product functions, product components / general 14
| display version | 2 LEDs per reader connection, 3 LEDs for device status, 2 LEDs for Ethernet ports |
|---|---|
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| product function / of the PROFINET IO device / is supported / H-Sync forwarding | No |
| product function / addressable transponder file handler | No |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: PROFINET IO protocol | Yes |
| protocol / is supported: TCP/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | No |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: EtherNet/IP protocol | Yes |
| protocol / is supported: OPC UA | Yes |
| product feature / silicon-free | Yes |
Product functions / management, configuration, engineering 3
| type of parameterization | HSP, GSDML, EDS, TO, WBM |
|---|---|
| type of programming | ID profile, library with functions, FB 45, OPC UA, XML |
| type of computer-switched communication | acyclic communication, communication via process image, TCP/IP |
Standards, specifications, approvals 4
| certificate of suitability | CE, FCC, cULus, PNO: Conformance Class B, Netload Class (SL1) III, OPC UA: Embedded UA Server Profile |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 70 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 101.43 kg |
| global warming potential [CO2 eq]: during manufacturing | 16 kg |
| global warming potential [CO2 eq]: during operation | 85.3 kg |
| global warming potential [CO2 eq]: after end of life | 0.13 kg |
Logistics 7
| Net weight | 0.294 kg |
|---|---|
| Package dimensions | 182 × 90 × 50 mm |
| Country of origin | DE |
| Shipping weight | 0.794 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2002-0JE40
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300)
What is the rated current of RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300)?
The rated current of RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300) is 0.13 A.
Which supply voltage is RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300) rated for?
The rated operational voltage of RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300) is 24 V AC.
What is the HS code of RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300) for customs?
The tariff (HS) code on file for RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300) is 85176200.
What is the EAN of RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300)?
The EAN (GTIN) of RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300) is 4047623410126.
Where does RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300) ship from, and how fast?
RF188C communication module RFID communication module RF188C for PROFINET, Ethernet, EtherNet/IP, OPC/UA, 4 readers can be connected (of which max. 2 - RF1000 / MV300) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
