Part number: 6GT2002-0GA10
Model no: ASM 475 communication module ********** spare part ********* MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector).

$1,558.25 Critical stock Dispatch 12 Nov · From Türkiye

Manufacturer phase-out

Siemens has announced the end of 6GT2002-0GA10

Once production ends, supply depends on remaining stock.

No replacement announced yet. Tell us the application and we will propose an alternative.

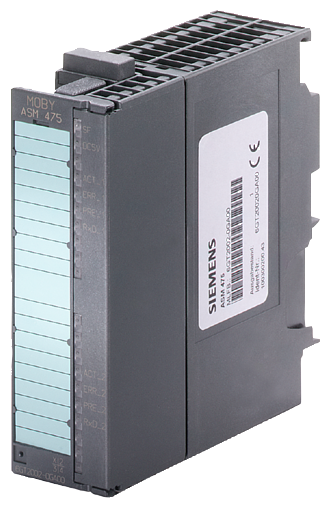

Siemens 6GT2002-0GA10 ASM 475 MOBY RFID communication module S7-300 ET200M

SIMATIC RFID

Siemens 6GT2002-0GA10 SIMATIC RFID ASM 475 MOBY Communication Module for S7-300 ET200M

ASM 475 MOBY communication module for SIMATIC S7-300/ET200M, 2 reader ports, RS422, 24 V DC.

Ratings Full specification ↓

Rated current: 0.1 A
Rated operational voltage: 24 V AC
Communication: RS422 point-to-point, 115.2 kbit/s, S7 communication
Display: 4 LEDs per reader connection, 2 LEDs device status
EAN: 4025515142690

$1,558.25

Critical stock

StatusPhase-out

ConditionNew, factory sealed

Dispatch 12 Nov 2026

Ships fromTürkiye

Get a Quote WhatsApp

Genuine Siemens parts

Factory sealed, manufacturer warranty. Sourced from Siemens and authorised distributors. How we source

Express door-to-door

FedEx from Türkiye, with tracking. Duties and taxes paid on arrival.Shipping & duties

14-day returns

Unused, in original packaging. Return costs apply unless the fault is ours.Return policy

Sold and shipped by Kraftek, Türkiye

Description

About the ASM 475 communication module ** spare part * MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector).

The Siemens 6GT2002-0GA10 ASM 475 is a MOBY communications module that connects up to two RF200, RF300, MV400/500, or MOBY D/E/I/U readers to a SIMATIC S7-300 or ET200M station over an RS422 point-to-point interface at up to 115.2 kbit/s. It is powered from 20-30 V DC, mounts in the S7-300 rack, and is supplied as a parameterizable spare-part module without a front connector.

Certifications & Standards

Selection Notes

The ASM 475 accepts two reader connections per module, so it consolidates two MOBY or RF200/300 read points onto one S7-300 or ET200M slot instead of using two single-reader modules. Its 0...+60 degrees C operating range is narrower than many S7-300 peripheral modules, so panel ambient temperature needs checking before it is placed next to heat-generating equipment. It ships without the front connector, which is a separate accessory required before wiring the reader and supply connections.

Applications

RFID tag reading for conveyor tracking, pallet and container identification, and asset tracking on production lines built around SIMATIC S7-300 or ET200M with RF200, RF300, or MOBY D/E/I/U readers.

Specification

Full specification

58 values · Last verified 01 Nov 2026

General 3

product type designation	ASM 475 communication module ******** spare part ******* MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector).
product brand name	SIMATIC RF
suitability for operation	SIMATIC S7-300, ET200M together with RF200/300, MV400/500, MOBY D/E/I/U

Transfer rate 1

transfer rate / at the point-to-point connection / serial / maximum	115.2 kbit/s

Interfaces 7

design of the interface / for point-to-point connection	RS422
number of readers / connectable	2
type of electrical connection: of the backplane bus	S7-300 backplane bus
type of electrical connection: of the PROFIBUS interface	(according to the head module)
type of electrical connection: of Industrial Ethernet interface	(according to the head module)
type of electrical connection: for supply voltage	Screw-type or spring-loaded terminals
design of the interface / to the reader / for communication	Screw-type or spring-loaded terminals

Show all 58 specifications ↓ Show less ↑47 more values in Identification, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, Logistics.

Identification 8

Part number	6GT2002-0GA10
Type designation	ASM 475 communication module ******** spare part ******* MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector).
Brand	Siemens
Condition	New, factory sealed
Source	Siemens and its authorised distributors
Warranty	Manufacturer warranty
Lifecycle status	Phase-out announced by the manufacturer
EAN	4025515142690

Mechanical data 2

material	Noryl
color	anthracite

Supply voltage, current consumption, power loss 4

supply voltage / at DC: rated value	24 V
supply voltage / at DC: ●	20 ... 30 V
consumed current: at DC / at 24 V / without connected devices / typical	0.1 A
consumed current: from supply voltage 1L+ / maximum	1 A

Ambient conditions 7

ambient temperature: during operation	0 ... 60 °C
ambient temperature: during storage	-40 ... +70 °C
ambient temperature: during transport	-40 ... +70 °C
protection class IP	IP20
shock resistance	According to IEC 61131-2
shock acceleration	150 m/s2
vibrational acceleration	10 m/s2

Design, dimensions and weights 5

width	40 mm
height	125 mm
depth	120 mm
fastening method	S7-300 rack
wire length / for RS 422 interface / maximum	1000 m

Product features, product functions, product components / general 3

display version	4 LEDs per reader connection, 2 LEDs for device status
product function / addressable transponder file handler	Yes
protocol / is supported: S7 communication	Yes

Product functions / management, configuration, engineering 3

type of parameterization	Object manager, GSD
type of programming	FB 45, FB 55, FC 56 (FC 45/55 with limited functionality)
type of computer-switched communication	acyclic communication

Standards, specifications, approvals 2

certificate of suitability	CE, FCC, UL/CSA
product function / is supported / identification link	No

Standards, specifications, approvals / Environmental Product Declaration 5

Environmental Product Declaration	Yes
global warming potential [CO2 eq]: total	81.81 kg
global warming potential [CO2 eq]: during manufacturing	16 kg
global warming potential [CO2 eq]: during operation	65.68 kg
global warming potential [CO2 eq]: after end of life	0.13 kg

Accessories 1

accessories	Front connector with screw-type or spring-loaded terminals

Logistics 7

Net weight	0.35 kg
Package dimensions	20 × 75 × 75 mm
Country of origin	DE
Shipping weight	0.85 kg
Ships from	Türkiye
Dispatch	12 Nov
Stock	Critical stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6GT2002-0GA10

No documents are on file for this part yet.

Ask us for the datasheet

Certifications

Certifications and standards

CE
Environmental Product Declaration

Quick answers

Questions about the ASM 475 communication module ** spare part * MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector).

What is the rated current of ASM 475 communication module ** spare part * MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector).?

The rated current of ASM 475 communication module ********** spare part ********* MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector). is 0.1 A.

Which supply voltage is ASM 475 communication module ** spare part * MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector). rated for?

The rated operational voltage of ASM 475 communication module ********** spare part ********* MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector). is 24 V AC.

What is the HS code of ASM 475 communication module ** spare part * MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector). for customs?

The tariff (HS) code on file for ASM 475 communication module ********** spare part ********* MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector). is 85176200.

What is the EAN of ASM 475 communication module ** spare part * MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector).?

The EAN (GTIN) of ASM 475 communication module ********** spare part ********* MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector). is 4025515142690.

Where does ASM 475 communication module ** spare part * MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector). ship from, and how fast?

ASM 475 communication module ********** spare part ********* MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector). ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
