- Part number
- 6GF3326-0HT01
- Model no
- MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325.
Siemens has announced the end of 6GF3326-0HT01
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

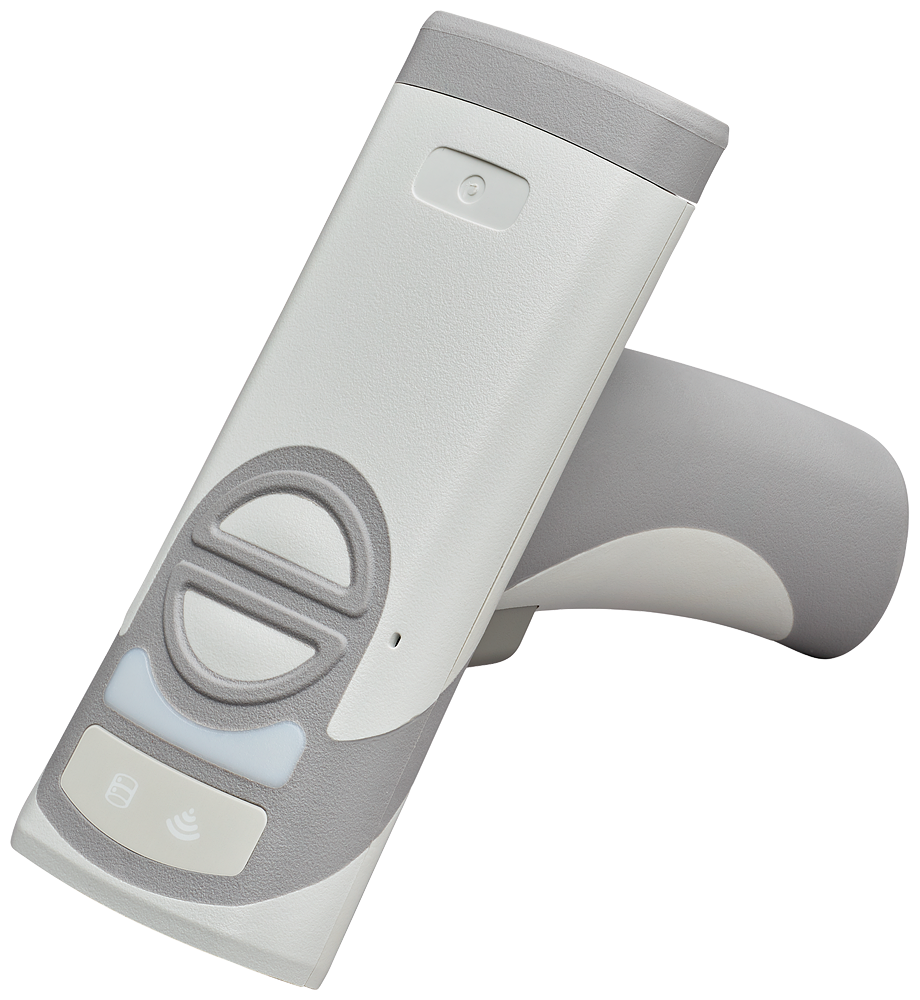

Siemens 6GF3326-0HT01 SIMATIC MV326 Bluetooth Handheld 20-375 mm Optical Code Reader
Siemens 6GF3326-0HT01 SIMATIC MV326 Bluetooth handheld 1D/2D optical reader, 20-375 mm range, 12h battery.
Description
About the MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325.
About the MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325.
The Siemens 6GF3326-0HT01 is a SIMATIC MV326 Bluetooth handheld optical reader for 1D barcodes and 2D codes such as Data Matrix and QR Code, reading medium-to-high contrast codes from 20 mm to 375 mm depending on code type and size. It connects wirelessly over Bluetooth Class 2 with a USB-based charging station, and runs about 12 hours per charge on its 1.3 A-h lithium-ion battery.
Selection Notes
The MV326's Bluetooth Class 2 link and 1.3 A-h battery, good for about 12 hours per charge, suit mobile picking or receiving stations where a USB tether is impractical; the charging station also acts as the Bluetooth access point, so no separate wireless infrastructure is needed. A corded USB reader remains the better fit for a fixed workstation where continuous uptime without battery swaps matters more than mobility.
Specification
Full specification
General 5
| product type designation | MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325. |
|---|---|
| product brand name | SIMATIC MV |
| suitability for operation | 1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code, 128, Interleaved 2 of 5, GS1 DataBar (RSS), Maxtrix 2of5, MSI Plessey, Plessey, Straight 2of5, Trioptic, UPC/EAN/JAN, Stacked 1D: GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417, 2D: Aztec Code, Data Matrix, Micro QR Code, QR Code, Han Xin |
| range | 20 ... 375 mm |
| range / note | Code-dependent |
Optical data 5
| design of image sensor / of the camera | CMOS 1280 x 960, image resolution 960 x 640 |
|---|---|
| fastening method / of lens | Integrated |
| type of light source | Lighting system comprising incident light (red) |
| picture recording frequency / maximum | 10 Hz |
| type of focusing | Fixed focus, optimum focal point at 6.3 mm |
Supply voltage, current consumption, power loss 4
| type of current supply | Battery operation |
|---|---|
| type of battery | Lithium ion accumulator, fast charging capability |
| battery capacity | 1.3 A·h |
| operating period / with standard battery / typical | 12 h |
Show all 45 specifications ↓ Show less ↑31 more values in Identification, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Accessories, Logistics.
Identification 10
| Part number | 6GF3326-0HT01 |
|---|---|
| Type designation | MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4034106024666 |
| ETIM class | EC002999 |
| eCl@ss | 27280103 |
Ambient conditions 4
| ambient temperature: during operation | -20 ... +55 °C |
|---|---|
| ambient temperature: during storage | -30 ... +65 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| height of fall / maximum | 1.8 m |
Design, dimensions and weights 3
| width | 135 mm |
|---|---|
| height | 51 mm |
| depth | 130 mm |
Product features, product functions, product components / general 4
| design of the display | 6 LEDs |
|---|---|
| operator element version | Trigger in handle |
| design of acoustic signaling element | Vibration alarm, audible signal |
| design of the interface | Bluetooth Class 2, USB |
Product functions / management, configuration, engineering 2
| product function / of the software | Read, display, save, transfer codes |
|---|---|
| type of programming | Optical parameterization or via configuration software |
Accessories 1
| accessories | Changeable accumulator for 50000 readings (Lion 3.7 V / 1.3 Ah), external charging station (power supply via USB) incl. Bluetooth Accesspoint |
|---|
Logistics 7
| Net weight | 0.18 kg |
|---|---|
| Package dimensions | 130 × 135 × 51 mm |
| Country of origin | Malaysia |
| Shipping weight | 0.68 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GF3326-0HT01
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325.
What is the HS code of MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325. for customs?
The tariff (HS) code on file for MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325. is 84718000.
What is the EAN of MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325.?
The EAN (GTIN) of MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325. is 4034106024666.
Where does MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325. ship from, and how fast?
MV326 optical hand-held reader SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Siemens SIMATIC MV326
- Brand
- Siemens
- Series
- SIMATIC MV326
