Siemens 6FX5002-8QN04-1AF0 SINAMICS S210 One Cable Connection Assembly M12 Servo Cable

% $-138.97
Siemens 6FX5002-8QN04-1AF0 SINAMICS S210 One Cable Connection assembly Servo Cable
Siemens 6FX5002-8QN04-1AF0 SINAMICS S210 One Cable Connection assembly Servo Cable

Siemens 6FX5002-8QN04-1AF0 SINAMICS S210 One Cable Connection Assembly M12 Servo Cable

Brand: Siemens
Reference No: 6FX5002-8QN04-1AF0
Catalog No: 6FX5002-8QN04-1AF0
Series: SINAMICS/SIMOTICS
Tariff Code (HS): 85444290
Communication: IX (One Cable Connection data interface)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$138.97

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

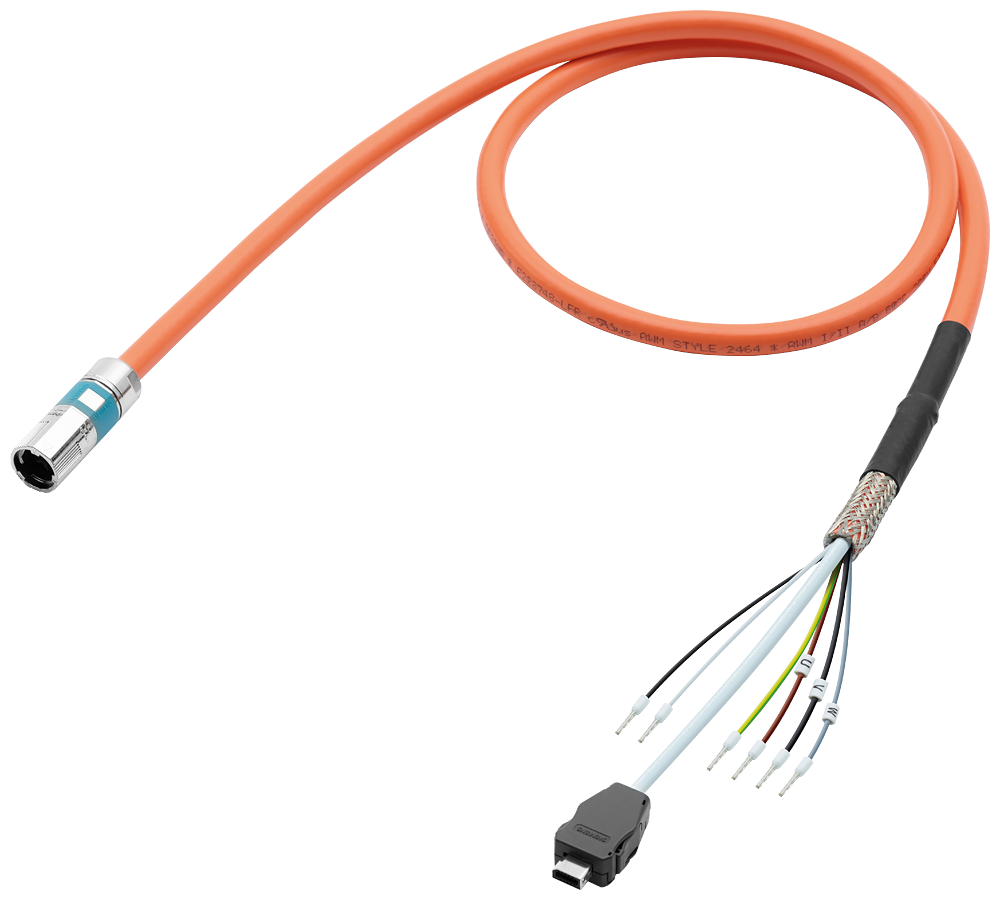

The Siemens 6FX5002-8QN04-1AF0 is a One Cable Connection assembly in the MOTION-CONNECT 500 class, combining 4G0.38+2x0.38+4x0.2 mm² power and signal cores in a single prefabricated cable with a Speed-Connect M12 connector and an IX data connector for SINAMICS S210 servo wiring. Cores are fitted with end sleeves, and the cable has a maximum outer diameter of 9.7 mm and weighs 0.8 kg.

Technical Specifications

Order No. (MLFB) 6FX5002-8QN04-1AF0
EAN 4042948678787
Brand Siemens
Series SINAMICS S210
Product type Servo Cable (One Cable Connection assembly)
Core configuration 4G0.38 + 2x0.38 + 4x0.2 mm² (Type C)
Connector Speed-Connect M12 connector; data cable with IX connector
Core termination Cores with end sleeve
MOTION-CONNECT class 500
Maximum outer diameter (Dmax) 9.7 mm
Net weight 0.8 kg
Country of origin Slovakia (SK)

Selection Notes

This One Cable Connection assembly carries both power and encoder/data signal in one jacket via the M12 Speed-Connect and IX connectors, so it replaces separate power and signal cables on a SINAMICS S210 axis. Confirm the drive and motor sides both use the M12/IX OCC interface before ordering, since the core configuration (4G0.38+2x0.38+4x0.2 mm²) is fixed for this part number and is not compatible with separate-cable S120 booksize wiring.

Technical Details

Short Description
Siemens 6FX5002-8QN04-1AF0 SINAMICS S210 One Cable Connection assembly, M12/IX connectors, Dmax 9.7 mm, 0.8 kg.
Catalog No
6FX5002-8QN04-1AF0
Delivery Date (Days)
10-15 days
Model Number
6FX5002-8QN04-1AF0
Tariff Code
85444290
