Schneider Electric VW3M8A11R05 BCH16 shielded encoder cable 5m plastic connector

Schneider Electric VW3M8A11R05 Lexium 16 BCH16 Encoder Cable 5 m Shielded Plastic Connector Servo Cable

Name: Schneider Electric VW3M8A11R05 Lexium 16 BCH16 Encoder Cable 5 m Shielded Plastic Connector Servo Cable
Brand: Schneider Electric
SKU: VW3M8A11R05
Price: 105.27 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: VW3M8A11R05

Catalog No: VW3M8A11R05

Series: Lexium

Tariff Code (HS): 854442

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$105.27

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

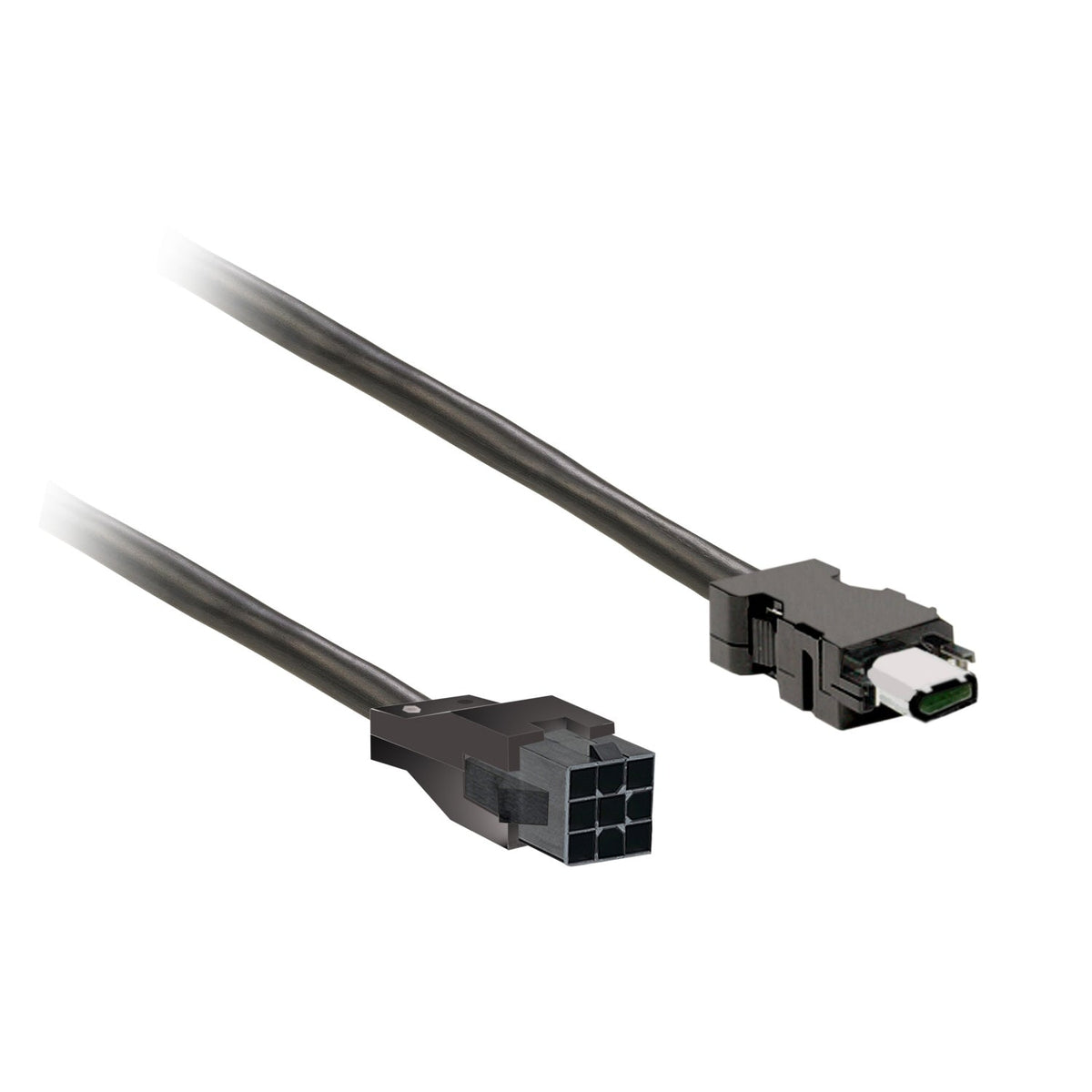

The Schneider Electric VW3M8A11R05 is a 5 m shielded encoder cable for the Easy Lexium 16 range, linking a BCH16 servo motor to its LXM16D drive with a 9-position TE connector and a 10-pin Firewire connector. Its 3 x (2 x 0.2 mm²) + 2 x 0.5 mm² composition suits BCH16 motors from 0.1 to 0.75 kW.

Technical Specifications

Reference	VW3M8A11R05
Brand	Schneider Electric
Range	Easy Lexium 16
Product Type	Encoder cable
Accessory Type	Connection accessory
Destination	From servo motor to servo drive
Cable Composition	3 x (2 x 0.2 mm²) + 2 x 0.5 mm²
Cable Type	Shielded
Cable Length	5 m
Electrical Connection	9-position TE connector, 10-pin Firewire connector
Compatible Motors	BCH16 servo motor, 0.1-0.75 kW
Compatible Drives	LXM16D servo drive, 0.1-0.75 kW, 200...230 V
Net Weight	0.32 kg
Package Quantity	1 (box of 10)

Selection Notes

VW3M8A11R05's shielded construction and plastic TE/Firewire connector pair suit the small-frame BCH16 motors (0.1-0.75 kW) rather than the larger 0.85-1.5 kW frames that use the military connection kit. Shielding reduces encoder-signal noise on runs alongside power cabling, which matters more on feedback wiring than on the unshielded power cable in the same range.

Technical Details

Short Description

5 m shielded encoder cable, TE/Firewire connectors, for BCH16 servo motors 0.1-0.75 kW.

Catalog No

VW3M8A11R05

Delivery Date (Days)

30 days

Model Number

BCH16 Encoder Cable

Tariff Code

854442
