Schneider Electric VW3M5B03R05 Easy Lexium 18 BCH18 Power Cable 4G0.34mm² 5 m PS0 Connector Servo Cable

% $-23.55

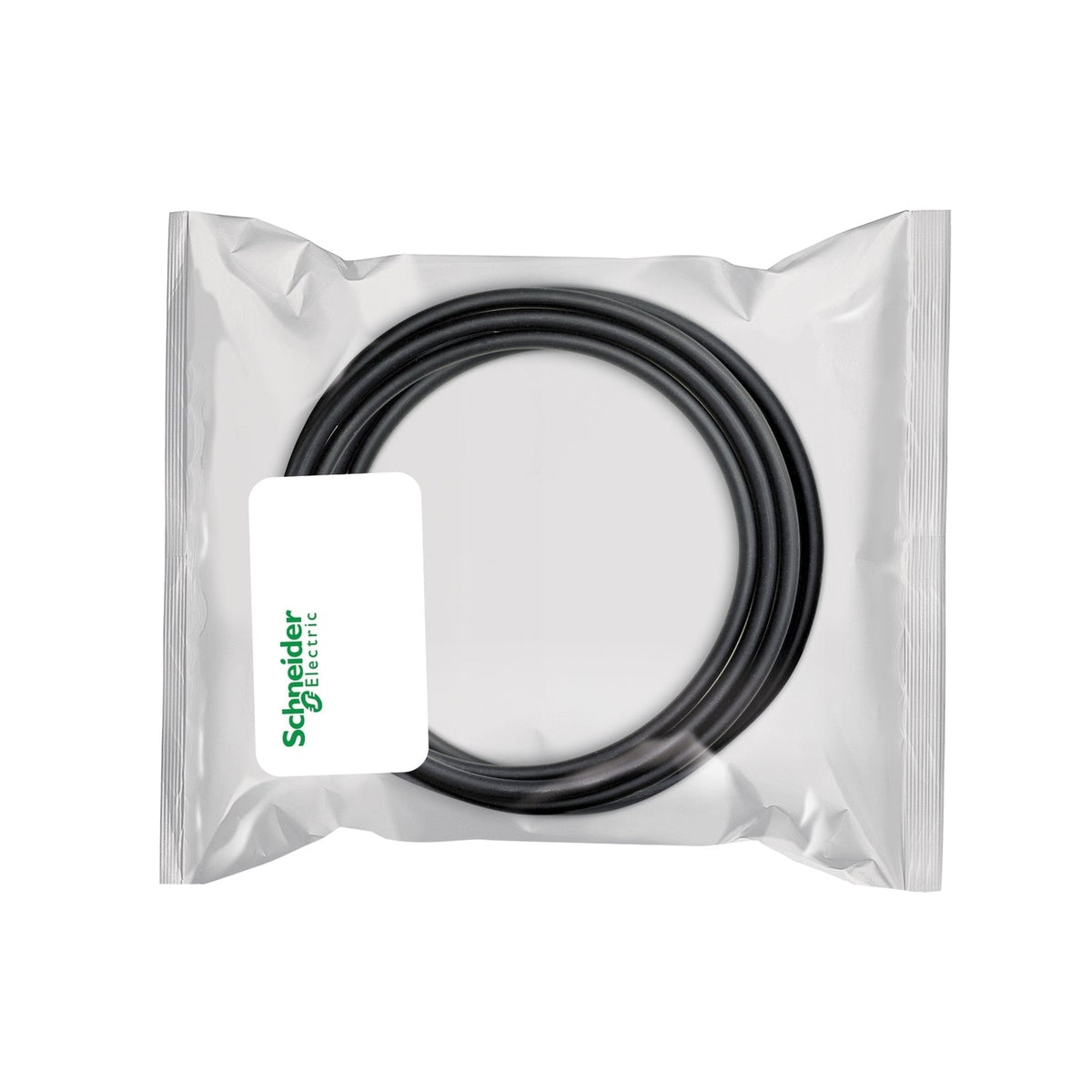

Schneider Electric VW3M5B03R05 Easy Lexium 18 BCH18 power cable 4G0.34mm² 5m
Schneider Electric VW3M5B03R05 Easy Lexium 18 BCH18 power cable 4G0.34mm² 5m

Schneider Electric VW3M5B03R05 Easy Lexium 18 BCH18 Power Cable 4G0.34mm² 5 m PS0 Connector Servo Cable

Brand: Schneider Electric
Reference No: VW3M5B03R05
Catalog No: VW3M5B03R05
Series: Lexium 18
Tariff Code (HS): 854442
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$23.55

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3M5B03R05 is a 5 m power cable in the Easy Lexium 18 range, wiring a BCH18 servo motor into its drive with a 4 x 0.34 mm² conductor set and a PS0 connector on the back-exit side. At 0.193 kg, it is the lighter, lower-cross-section version used for small-frame BCH18 motors.

Technical Specifications

Reference VW3M5B03R05
Brand Schneider Electric
Range Easy Lexium 18
Product Type Power cable
Accessory Type Cabling accessory, connection accessories
Cable Composition 4 x 0.34 mm²
Cable Exit Back
Connector Type PS0
Cable Length 5 m
Compatible Motors BCH18 servo motor
Net Weight 0.193 kg
Package Quantity 1 (box of 60)

Selection Notes

VW3M5B03R05's 4 x 0.34 mm² conductor set and back-exit PS0 connector match the lighter BCH18 motor variants rather than the heavier-gauge cable used on higher-current frames. Where panel routing needs the cable to exit from the connector side instead of the rear, a different exit variant in the same Easy Lexium 18 range applies instead.

Technical Details

Short Description
5 m power cable, 4G0.34mm², PS0 back-exit connector, for BCH18 servo motors.
Catalog No
VW3M5B03R05
Delivery Date (Days)
30 days
Model Number
BCH18 Power Cable
Tariff Code
854442
