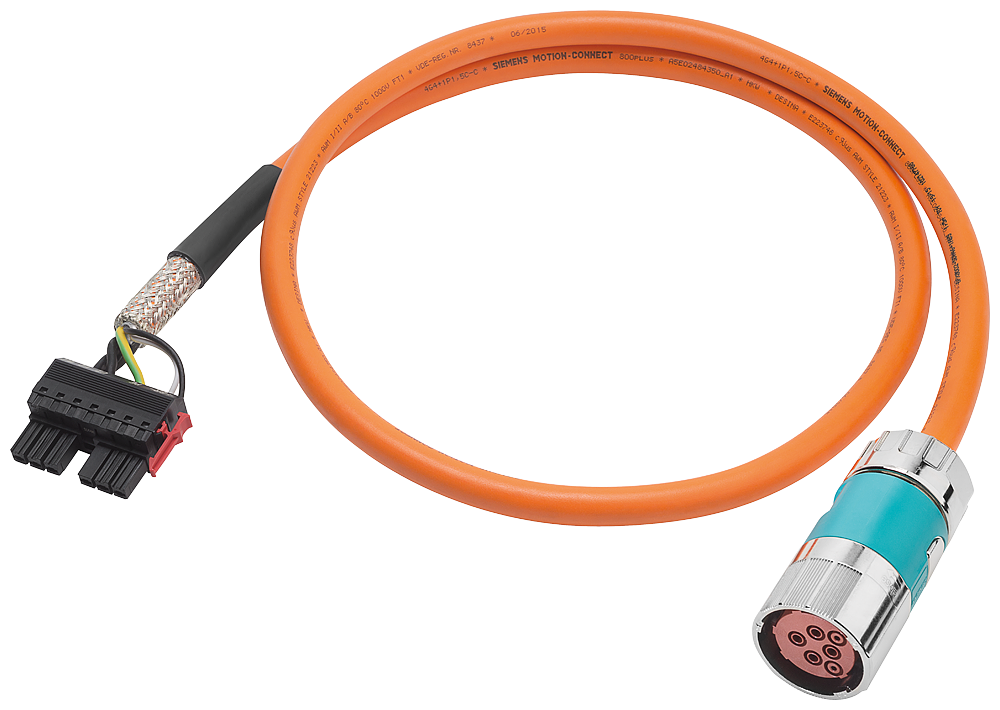

Siemens 6FX5002-5CN66-1AF0 SINAMICS S120 power cable 4x10mm² Servo Cable

Siemens 6FX5002-5CN66-1AF0 SINAMICS S120 Power Cable Preassembled 4x10mm² SC1.5 Servo Cable

Name: Siemens 6FX5002-5CN66-1AF0 SINAMICS S120 Power Cable Preassembled 4x10mm² SC1.5 Servo Cable
Brand: Siemens
SKU: 6FX5002-5CN66-1AF0
Price: 192.14 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 6FX5002-5CN66-1AF0

Catalog No: 6FX5002-5CN66-1AF0

Series: SINAMICS S120

Tariff Code (HS): 85444290

Stock: 0

Delivery time: 10-15 business day(s)

Shipping Origin: Türkiye EXW

$192.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 6FX5002-5CN66-1AF0 is a preassembled power cable in the MOTION-CONNECT 500 class, built with a 4 x 10 mm² conductor and a Speed-Connect size 1.5 connector for SINAMICS S120 booksize Motor Module (C-/D-types). Rated for a torsional load of 30°/m and an operating temperature range of -20… 70°C, the cable has a maximum outer diameter of 20 mm and weighs 3.956 kg.

Technical Specifications

Order No. (MLFB)	6FX5002-5CN66-1AF0
Brand	Siemens
Series	SINAMICS S120
Product type	Servo Cable (preassembled power cable)
Conductor configuration	4 x 10 mm² (Type C)
Connector	Speed-Connect size 1.5
Application	SINAMICS S120 booksize Motor Module (C-/D-types)
MOTION-CONNECT class	500
Permissible torsion (Absolute)	30°/m
Operating temperature range (module-end power connector)	0 … 55°C
Operating temperature range (module-end power connector)	-20 … 70°C
Cable jacket	PVC, DESINA orange (RAL 2003)
Maximum outer diameter (Dmax)	20 mm
Net weight	3.956 kg
Country of origin	Slovakia (SK)

Selection Notes

Choose the 4x10mm² conductor size to match the connected motor's rated current on the SINAMICS S120 booksize Motor Module (C-/D-types). The Speed-Connect size 1.5 connector must match the Speed-Connect socket on the target booksize Motor Module — a size 1.5 plug does not mate with a differently sized socket. This is the largest cross-section in the Speed-Connect size 1.5 line; step down to the 6 mm² variant for motors drawing less current.

Technical Details

Short Description

Siemens 6FX5002-5CN66-1AF0 MOTION-CONNECT 500 power cable, 4x10mm², SC1.5, Dmax 20 mm, 3.956 kg.

Catalog No

6FX5002-5CN66-1AF0

Delivery Date (Days)

10-15 days

Model Number

6FX5002-5CN66-1AF0

Tariff Code

85444290
