Siemens 6FX5002-5CG10-1AF0 MOTION-CONNECT 500 SPEED-CONNECT Power Cable 4x1.5mm² Servo Cable

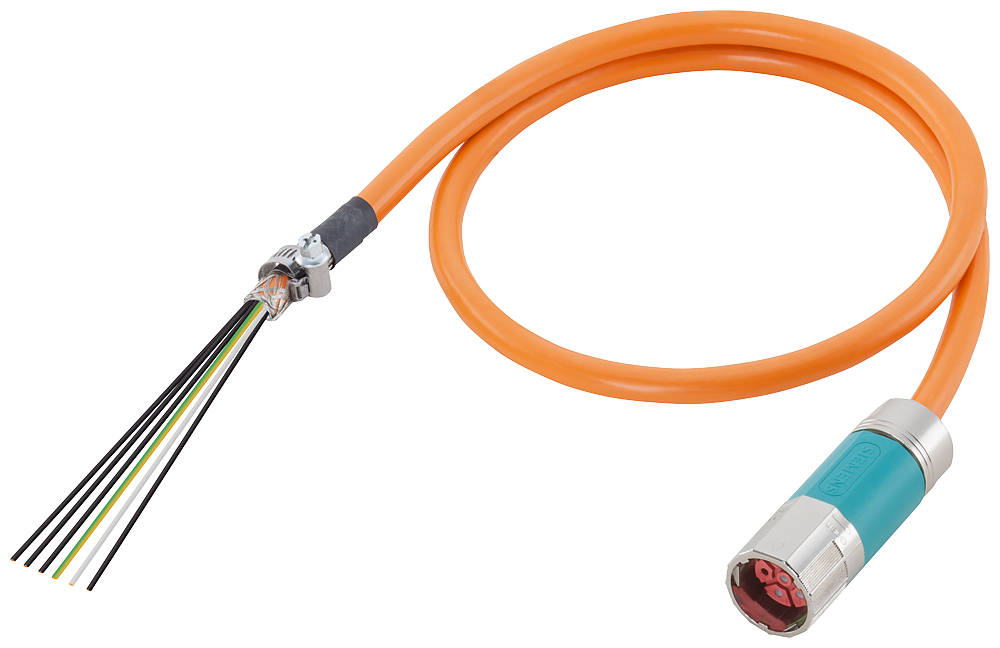

The Siemens SINAMICS MOTION-CONNECT 500 power cable 6FX5002-5CG10-1AF0 is a pre-assembled 4x1.5mm² motor power cable terminated with a Size 1 SPEED-CONNECT connector for SINAMICS AC drives, rated for UL/CSA and DESINA compliance with an orange PVC jacket (RAL 2003). It has a minimum bend radius of 30° per meter and weighs 0.844 kg.

Technical Specifications

Selection Notes

The Size 1 SPEED-CONNECT termination and MOTION-CONNECT 500 rating tie this cable to SINAMICS drive installations using that connector family and duty class — confirm the drive-side connector size before ordering, since SPEED-CONNECT cables come in multiple sizes that are not interchangeable. The 30°-per-meter minimum bend radius is a cable-carrier (drag chain) rating, relevant when the cable moves with an axis rather than sitting fixed in a cabinet.

Applications

Power feed cable between a SINAMICS AC drive module and a SIMOTICS motor in installations using the SPEED-CONNECT quick-connect system, including moving-axis applications routed through a cable carrier.
