Siemens 6FX3502-5CL02-1AF0 SINAMICS S200 Power Cable 5m 1FL2 Servo Cable

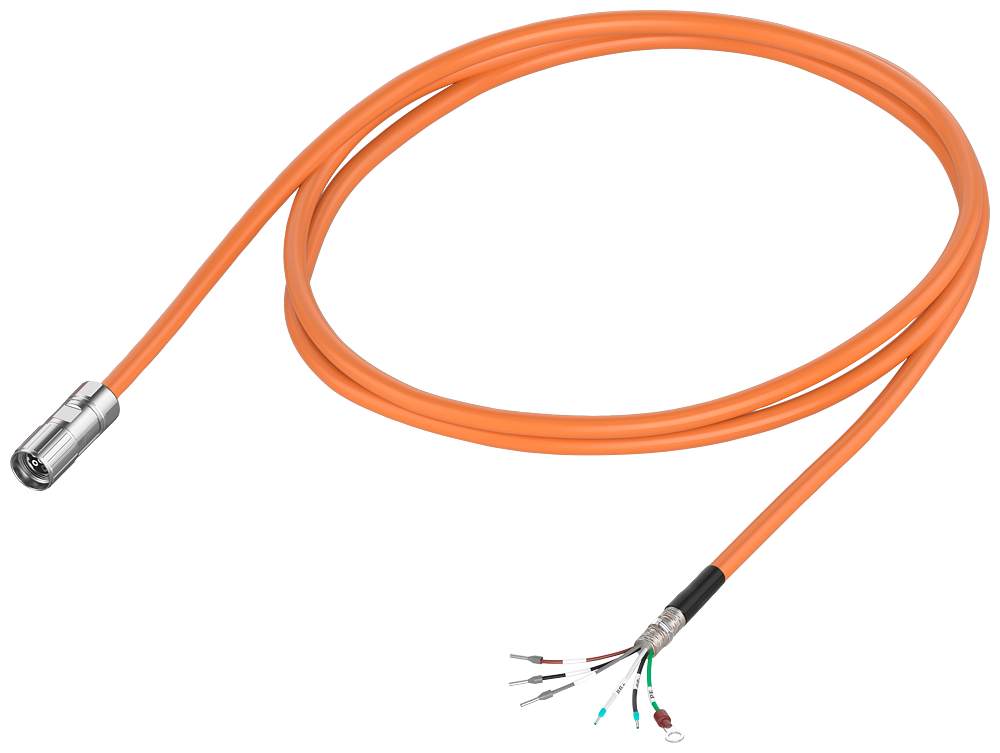

The Siemens 6FX3502-5CL02-1AF0 is a preassembled 4x1.5 mm² power cable that connects a SIMOTICS S-1FL2 SH45/65/90 servo motor without holding brake to a SINAMICS S200 drive. It is part of the MOTION-CONNECT 350 cable family, supplied in a fixed 5 m length with a maximum outer diameter of 7.8 mm and a rated 1 million bending cycles for use in cable carriers.

Technical Specifications

Selection Notes

Choose the 6FX3502-5CL02-1AF0 when the S-1FL2 motor has no holding brake — a braked motor needs the equivalent cable variant with the extra brake conductors, not this one. The 5 m fixed length and 1 million bending-cycle rating make it suited to a cable carrier (drag chain) on an axis with moderate travel; longer runs or continuous flexing at higher cycle counts call for a different MOTION-CONNECT length or duty-cycle class.

Applications

Power connection between a SINAMICS S200 drive and a SIMOTICS S-1FL2 servo motor on machine axes such as conveyors, pick-and-place units, and packaging equipment.
