Siemens 6FX3502-2XB12-1AF0 MOTION-CONNECT 350 5m Encoder Servo Cable

% $-99.92

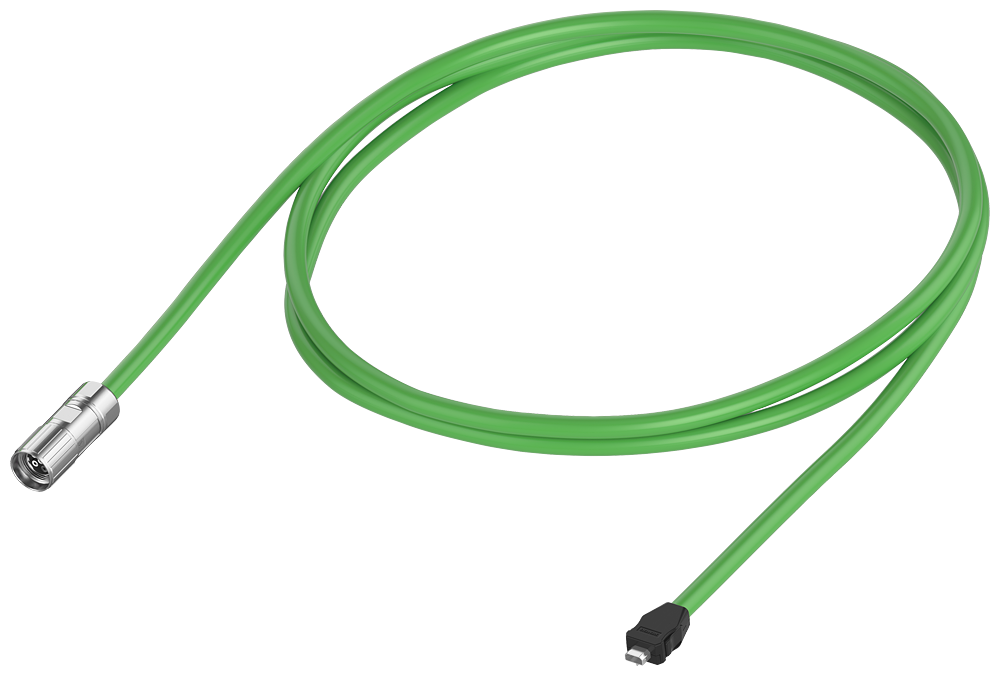

Siemens 6FX3502-2XB12-1AF0 MOTION-CONNECT 350 5m preassembled encoder cable for S-1FL2
Siemens 6FX3502-2XB12-1AF0 MOTION-CONNECT 350 5m preassembled encoder cable for S-1FL2

Siemens 6FX3502-2XB12-1AF0 MOTION-CONNECT 350 5m Encoder Servo Cable

Brand: Siemens
Reference No: 6FX3502-2XB12-1AF0
Catalog No: 6FX3502-2XB12-1AF0
Series: SINAMICS/SIMOTICS
Tariff Code (HS): 85444290
Communication: Absolute encoder signal
Stock: 117
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$99.92

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6FX3502-2XB12-1AF0 is a preassembled MOTION-CONNECT 350 encoder cable, 5 m long, for connecting SIMOTICS S-1FL2 SH45/65/90 servo motors to a SINAMICS S200 drive. It has a 3x2x0.25 mm² conductor set, a 7.0 mm maximum encoder-side connector diameter, and is rated for 1 million bending cycles in cable-carrier use.

Technical Specifications

SKU 6FX3502-2XB12-1AF0
Brand Siemens
Series MOTION-CONNECT 350
Product designation Encoder cable, preassembled
For motor SIMOTICS S-1FL2 SH45/65/90
For drive SINAMICS S200
Length 5 m
Conductor configuration 3x2x0.25 mm²
Max. encoder-side connector diameter 7.0 mm
Bending cycles rating 1,000,000
Torsion/bend spec Absolute: 30 deg/m
Net weight 0.546 kg
Country of origin CN

Selection Notes

This is the 5 m length option in the MOTION-CONNECT 350 range for SH45/65/90 frame S-1FL2 motors on SINAMICS S200; pick a shorter or longer preassembled length from the same family to match the physical distance between motor and drive rather than field-terminating a bulk cable. The 1 million bending-cycle rating suits cable-carrier (drag chain) installations rather than only fixed routing.

Applications

Connecting SIMOTICS S-1FL2 servo motor encoders to SINAMICS S200 drives in machine axes with moving cable runs.

Technical Details

Short Description
MOTION-CONNECT 350 preassembled encoder cable, 5m, for SIMOTICS S-1FL2 with SINAMICS S200.
Catalog No
6FX3502-2XB12-1AF0
Delivery Date (Days)
1-2 days
Model Number
6FX3502-2XB12-1AF0
Tariff Code
85444290
