Siemens 6FX3502-2XB11-1AF0 MOTION-CONNECT 350 Encoder Cable 5m for S-1FL2 Servo Cable

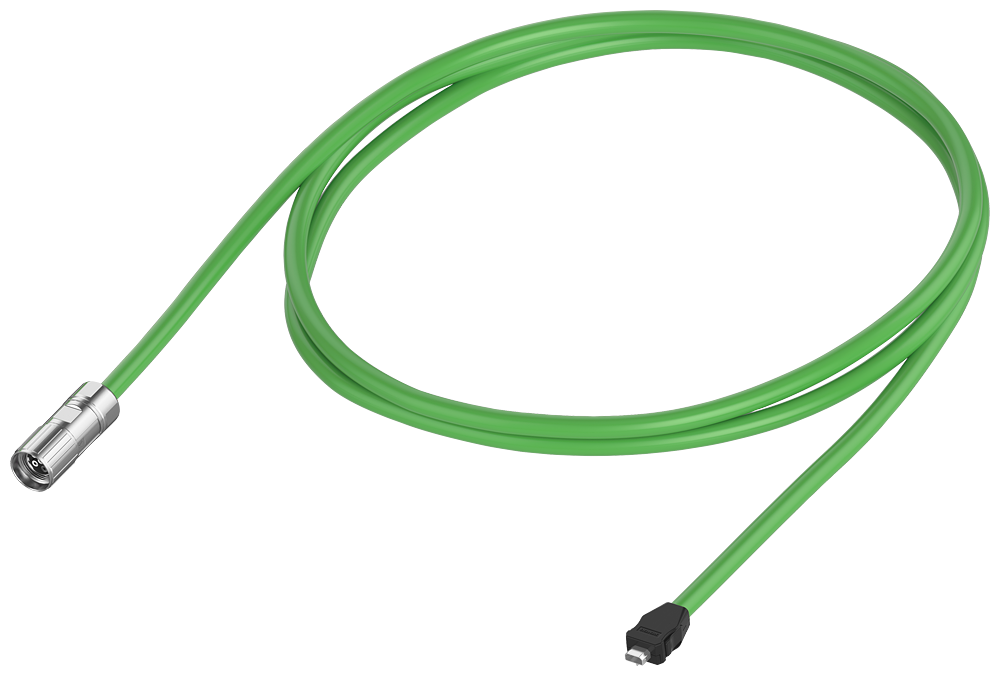

The Siemens 6FX3502-2XB11-1AF0 is a preassembled MOTION-CONNECT 350 encoder cable, 5 m long, matched to S-1FL2 SH48/52 servo motors on a SINAMICS S200 drive. Its 3x2x0.25 mm2 conductor set and 7.0 mm max. connector diameter support 1 million bending cycles for moving cable-carrier applications, transmitting encoder feedback without a separate junction box.

Technical Specifications

Selection Notes

MOTION-CONNECT 350 rates this cable for continuous flexing in a cable carrier or drag chain, unlike a fixed-installation cable class, so it fits moving-axis routing rather than static wiring. Confirm the target motor is the S-1FL2 SH48/52 frame this cable is preassembled for - the connector will not fit a different frame size or motor series - and that the 5 m length covers the motor-to-drive run, since preassembled connector cables are not field-length-adjustable.

Applications

Encoder feedback wiring between an S-1FL2 SH48/52 servo motor and a SINAMICS S200 drive, particularly on axes where the cable travels in a drag chain and needs the MOTION-CONNECT 350 bending-cycle rating.
