SINAMICS/SIMOTICSSiemens 6FX3002-5CL12-1AF0 MOTION-CONNECT 300 4x2.5mm² 5m Servo Cable
MOTION-CONNECT 300 power cable, 4x2.5mm², 5m, straight connector, for S-1FL6 servo motors, V70/V90 frame B/C.
Description
About the 6FX3002-5CL12-1AF0
About the 6FX3002-5CL12-1AF0

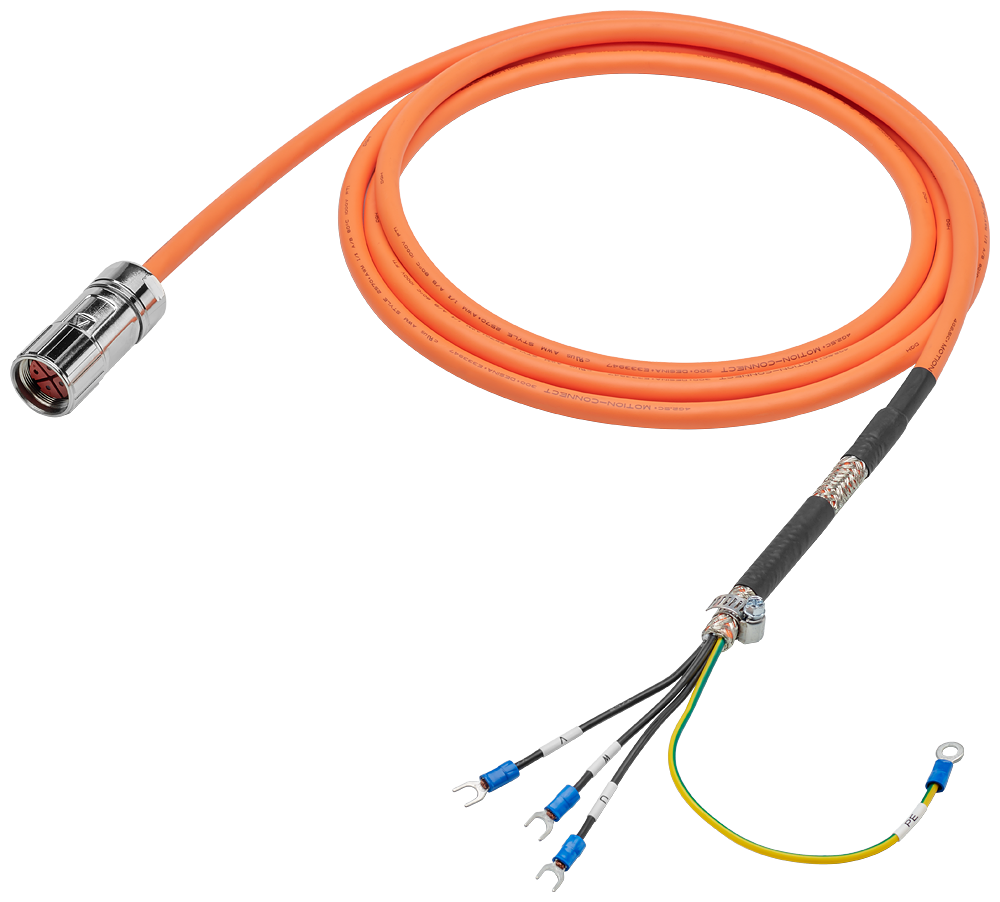

The Siemens 6FX3002-5CL12-1AF0 is a MOTION-CONNECT 300 pre-assembled power cable, 4x2.5mm² conductors, 5m length, with a straight connector on the motor side for S-1FL6 servo motors in V70/V90 frame size B or C at 400V. Net weight is 1.02 kg, the motor-side connector accepts a maximum cable diameter of 9.7 mm, and no UL listing applies to this variant.
Selection Notes
This is the 5m straight-connector version for S-1FL6 servo motors in V70/V90 frame sizes B and C — confirm frame size and connector orientation, straight vs. angled, against the motor before ordering, since MOTION-CONNECT 300 cables are frame- and orientation-specific. No UL listing applies to the motor-side connector on this variant, so it is not suited for machines requiring fully UL-listed cabling.
Applications
Power wiring between a SINAMICS/SIMOTICS drive and an S-1FL6 servo motor in V70/V90 frame size B or C, 400V machine builds.
Specification
Full specification
| Part number | 6FX3002-5CL12-1AF0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4042948696620 |
| Rated operational voltage | 400 V AC |
|---|
| Shipping weight | 1.52 kg |
|---|
| HS code | 85444290 |
|---|---|
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
| Series | MOTION-CONNECT 300 |
|---|---|
| Cable Type | Pre-assembled power cable, 4x2.5mm² |
| Length | 5 m |
| Connector (Motor Side) | Straight, max. 9.7 mm cable diameter |
| Compatible Motors | S-1FL6, V70/V90 frame size B or C, 400V |
| UL Listing | No UL for motor-side connector |
| Country of Origin | CN |
| Net Weight | 1.02 kg |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6FX3002-5CL12-1AF0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6FX3002-5CL12-1AF0
Which supply voltage is 6FX3002-5CL12-1AF0 rated for?
The rated operational voltage of 6FX3002-5CL12-1AF0 is 400 V AC.
What is the HS code of 6FX3002-5CL12-1AF0 for customs?
The tariff (HS) code on file for 6FX3002-5CL12-1AF0 is 85444290.
What is the EAN of 6FX3002-5CL12-1AF0?
The EAN (GTIN) of 6FX3002-5CL12-1AF0 is 4042948696620.
Where does 6FX3002-5CL12-1AF0 ship from, and how fast?
6FX3002-5CL12-1AF0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
