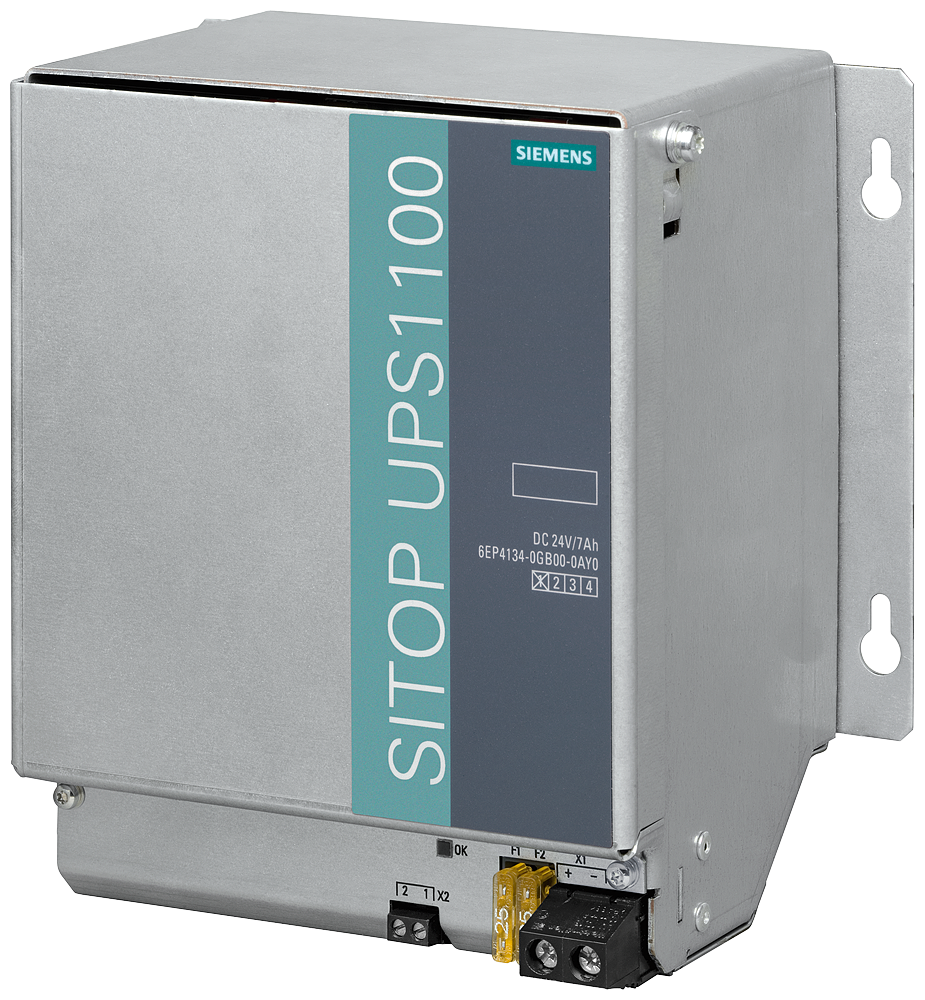

Siemens 6EP4134-0GB00-0AY0 SITOP UPS1100 24V DC 7Ah Battery Module DC UPS Module
Siemens 6EP4134-0GB00-0AY0 SITOP UPS1100 battery module, 24V DC, 7Ah lead-acid, 40A output, IP20, 5.5 kg.
Description
About the UPS1100
About the UPS1100
The Siemens 6EP4134-0GB00-0AY0 SITOP UPS1100 battery module supplies 7 Ah of maintenance-free sealed lead-acid backup capacity at 24 V DC for SITOP DC UPS modules. It delivers up to 40 A of buffering current, 120 A for 30 ms peak, and communicates battery status over its built-in interface, in an IP20, Class III enclosure rated for -15 to +50 degC operation.
Certifications & Standards
- CE
- cURus
- EAC
- ABS
- DNV
Selection Notes
Service life drops sharply with ambient temperature: rated 4 years typical at 20 degC, but only 1 year at 40 degC and 0.5 years at 50 degC, so cabinet ventilation directly affects replacement interval. The 40 A output current and 120 A/30 ms peak rating size this module for higher-current DC UPS loads rather than small single-PLC backup, where a lower-capacity battery module would be adequate. It connects to the SITOP UPS1100 host module via screw terminals (0.5-16 mm² for +BAT/-BAT), not a plug-in system.
Applications
Provides ride-through backup for 24 V DC control systems, PLCs, and drives during mains interruptions in SITOP UPS1100-based installations, sized for loads that need sustained 40 A buffering current rather than momentary support.
Specification
Full specification
General information 5
| product brand name | SITOP |
|---|---|
| product type designation | UPS1100 |
| product designation | Battery module 7 Ah |
| type of battery | maintenance-free lead-acid batteries |
| product version | Extension module/battery module |
Electrical data 6
| end-of-charge voltage at DC: at -10 °C recommended | 28 V |
|---|---|
| end-of-charge voltage at DC: at 0 °C recommended | 28 V |
| end-of-charge voltage at DC: at 20 °C recommended | 27.3 V |
| end-of-charge voltage at DC: at 30 °C recommended | 26.8 V |
| end-of-charge voltage at DC: at 40 °C recommended | 26.6 V |
| end-of-charge voltage at DC: at 50 °C recommended | 26.3 V |
Output 6
| battery capacity | 7 A·h |
|---|---|
| output current rated value | 40 A |
| output current in buffering mode maximum | 40 A |
| peak current | 120 A; for 30 ms |
| charging current maximum | 1.75 A |
| output voltage at DC rated value | 24 V |
Show all 80 specifications ↓ Show less ↑63 more values in Identification, Interfaces, Protection and monitoring, Safety, Standards, specifications, approvals, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Service life, Connection method, Mechanical data, Accessories, Version Classification, Logistics.
Identification 10
| Part number | 6EP4134-0GB00-0AY0 |
|---|---|
| Type designation | UPS1100 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4025515154303 |
| ETIM class | EC000357 |
| eCl@ss | 27050403 |
Interfaces 1
| communication function | Yes |
|---|
Protection and monitoring 3
| design of short-circuit protection | Battery fuse 2x 25 A/32 V (solid-state circuitry blade-type fuse + support) |
|---|---|
| design of the overload protection | Valve control |
| display version for normal operation | LED green: Battery OK; LED flashing green: Error or warning; OFF: No communication |
Safety 2
| operating resource protection class | Class III |
|---|---|
| protection class IP | IP20 |
Standards, specifications, approvals 4
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cURus-Recognized (UL 1778, CSA C22.2 No. 107.1), File E219627 |
| certificate of suitability: EAC approval | Yes |
| standards, specifications, approvals hazardous environments certificate of suitability: ATEX | No |
Standards, specifications, approvals marine classification 3
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 21.816 kg |
| global warming potential [CO2 eq]: during manufacturing | 13.865 kg |
| global warming potential [CO2 eq]: during operation | 5.658 kg |
| global warming potential [CO2 eq]: after end of life | 0.545 kg |
Ambient conditions 5
| ambient condition | For storage, mounting and operation of lead-acid batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. You must ensure that the battery site is sufficiently ventilated. Possible sources of ignition must be at least 50 cm away. |
|---|---|
| ambient temperature: during operation | -15 ... +50 °C |
| ambient temperature: during transport | -20 ... +50 °C |
| ambient temperature: during storage | -20 ... +40 °C |
| relative temporary capacity loss at 20 °C in a month typical | 3% |
Service life 6
| service life of energy storage: typical | capacity falls to 80 % of original capacity (according to EUROBAT) |
|---|---|
| service life of energy storage: at 20 °C typical | 4 a |
| service life of energy storage: at 30 °C typical | 2 a |
| service life of energy storage: at 40 °C typical | 1 a |
| service life of energy storage: at 50 °C typical | 0.5 a |
| note | Along with the storage and operating temperature, other factors such as the duration of the storage period and the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, and within the temperature range 0 to +20 °C. |
Connection method 3
| type of electrical connection | screw terminal |
|---|---|
| for UPS module | 1 screw terminal each for 0.5 ... 16 mm2 for + BAT and - BAT |
| for control circuit and status message | 1 screw terminal each for 0.14 ... 4 mm2 |
Mechanical data 11
| width × height × depth of the enclosure | 186 × 186 × 110 mm |
|---|---|
| installation width × mounting height | 186 mm × 201 mm |
| required spacing: top | 15 mm |
| required spacing: bottom | 0 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | can be screwed onto flat surface (keyhole mounting for hooking in to M4 screws) |
| DIN-rail mounting | No |
| S7 rail mounting | No |
| wall mounting | Yes |
| number of cells | 12 |
Accessories 1
| product component included | Accessories pack with solid-state circuitry fuse 25 A |
|---|
Version Classification 3
| eClass | 16 27-05-04-03 |
|---|---|
| ETIM | 10 EC000357 |
| UNSPSC | 15 26-11-17-01 |
Logistics 6
| Net weight | 5.5 kg |
|---|---|
| Country of origin | Austria |
| Shipping weight | 6.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
