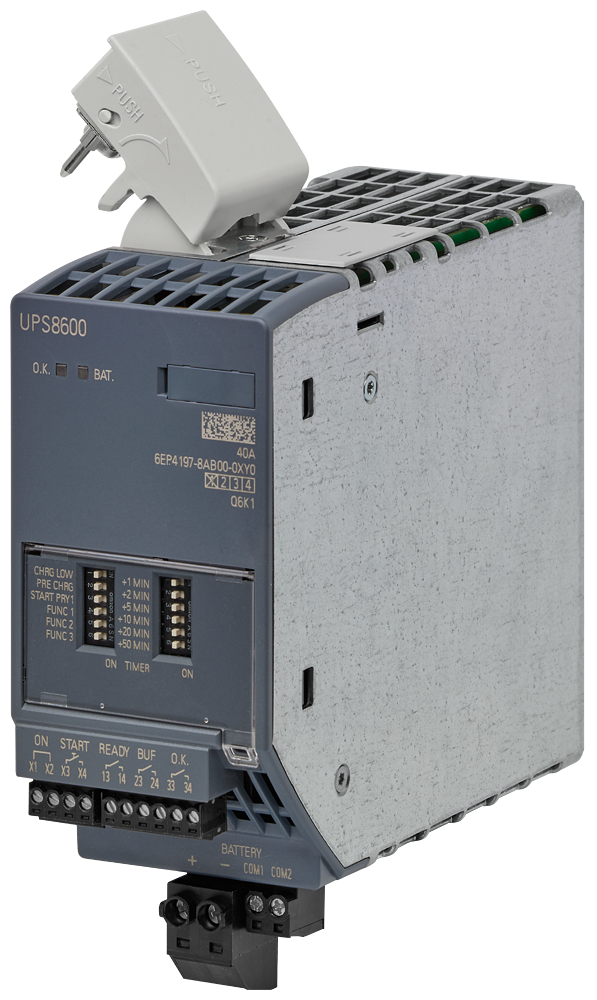

Siemens 6EP4197-8AB00-0XY0 SITOP UPS8600 48V/960W PSU8600 UPS Power Supply Module
SITOP UPS8600 module for PSU8600, 48V DC, 960W buffer power, 120W charging
Description
About the UPS8600
About the UPS8600
The Siemens 6EP4197-8AB00-0XY0 is a SITOP UPS8600 UPS module that plugs into a SITOP PSU8600 power supply and buffers its 48 V DC output at up to 960 W using external BAT8600 battery modules. Its charger delivers up to 120 W to recharge the batteries, and buffer time is set from 1 to 88 minutes by DIP switch or until the batteries are discharged.
Certifications & Standards
- CE
- EAC
- CB
- Shipbuilding
- ABS
- DNV
- EPD
Selection Notes
Buffer time is set from 1 to 88 minutes by DIP switch, or the module can be left to run until the attached BAT8600 batteries are fully discharged, so the same hardware covers both a short controlled-shutdown bridge and an extended runtime application depending only on switch position and battery count. It draws power through the PSU8600's integrated connector rather than separate input terminals, and supports up to two expansion modules for additional output capacity, so it fits installations already built around the PSU8600 rack rather than a standalone 24 V bus.
Specification
Full specification
General information 3
| product brand name | SITOP |
|---|---|
| product type designation | UPS8600 |
| type of current supply | 960 W |
Memory 2
| type of energy storage | External battery module |
|---|---|
| design of the mains power cut bridging-connection | Buffer time limit 1 ... 88 min. can be set with DIP switches or until the connected battery modules are discharged |
Output 4
| output voltage: in normal operation at DC rated value | 48 V |
|---|---|
| property of the output short-circuit proof | Yes |
| charging current | 1.25 A, 2.5 A |
| type of signal at output | relay contacts (NO contact, contact rating DC 60 V/0.3 A) for "sufficient buffer readiness", "buffer mode" and "battery circuit fault" |
Show all 79 specifications ↓ Show less ↑70 more values in Identification, Efficiency, Protection and monitoring, Interfaces, Safety, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Connection method, Mechanical data, Accessories, Version Classification, Logistics.
Identification 10
| Part number | 6EP4197-8AB00-0XY0 |
|---|---|
| Type designation | UPS8600 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515155102 |
| ETIM class | EC000382 |
| eCl@ss | 27040705 |
Efficiency 3
| efficiency in percent: in case of operation on rechargeable battery typical | 99 % |
|---|---|
| power loss [W]: in case of operation on rechargeable battery typical | 10 W |
| supplied active power typical | 960 W |
Protection and monitoring 4
| product function: reverse polarity protection against energy storage unit polarity reversal | Yes |
|---|---|
| display version | Three-color LED for operating state of module, three-color LED for status of battery circuit |
| for normal operation | LED green for "buffer standby exist" |
| in buffering mode | LED yellow for "buffered mode" |
Interfaces 2
| product function communication function | Yes |
|---|---|
| design of the interface | Ethernet/PROFINET via power supply unit PSU8600 |
Safety 7
| operating resource protection class | Class III |
|---|---|
| protection class IP | IP20 |
| standard: for emitted interference | EN 55022 Class B |
| standard: for interference immunity | EN 61000-6-2 |
| standards, specifications, approvals certificate of suitability: CE marking | Yes |
| type of certification CB-certificate | Yes |
| MTBF at 40 °C | 405 763 h |
Standards, specifications, approvals hazardous environments 1
| certificate of suitability: ATEX | No |
|---|
Standards, specifications, approvals marine classification 3
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 292.2 kg |
| global warming potential [CO2 eq]: during manufacturing | 36.9 kg |
| global warming potential [CO2 eq]: during operation | 254.3 kg |
| global warming potential [CO2 eq]: after end of life | 0.68 kg |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C; with natural convection |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 8
| type of electrical connection | Plug-in terminals with screwed connection |
|---|---|
| for rechargeable battery module | +, -: plug-in terminals each with 1 screw terminal for 0.2 ... 10 mm2 |
| for data cable | COM1, COM2: 2 plug-in terminals each with a screw terminal for 0.2 ... 2.5 mm2 |
| for auxiliary contacts | X1, X2, X3, X3 (control contacts): plug-in terminal with one screw-type terminal each for 0.14 ... 1.5 mm2 |
| for signaling contact | 13, 14, 23, 24, 33, 34 (signaling contacts): plug-in terminal with one screw-type terminal each for 0.14 ... 1.5 mm2 |
| suitability for interaction modular system | Yes |
| type of connection to system components | Via integrated connector |
| number of expansion modules maximum | 2 |
Mechanical data 11
| width × height × depth of the enclosure | 60 × 125 × 150 mm |
|---|---|
| installation width × mounting height | 60 mm × 225 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Accessories 2
| electrical accessories | Battery module BAT8600 |
|---|---|
| mechanical accessories | Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20 |
Version Classification 4
| eClass | 16 27-04-07-05 |
|---|---|
| ETIM | 10 EC000382 |
| IDEA | 4 4149 |
| UNSPSC | 15 39-12-10-11 |
Logistics 6
| Net weight | 0.8 kg |
|---|---|
| Country of origin | Romania |
| Shipping weight | 1.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
