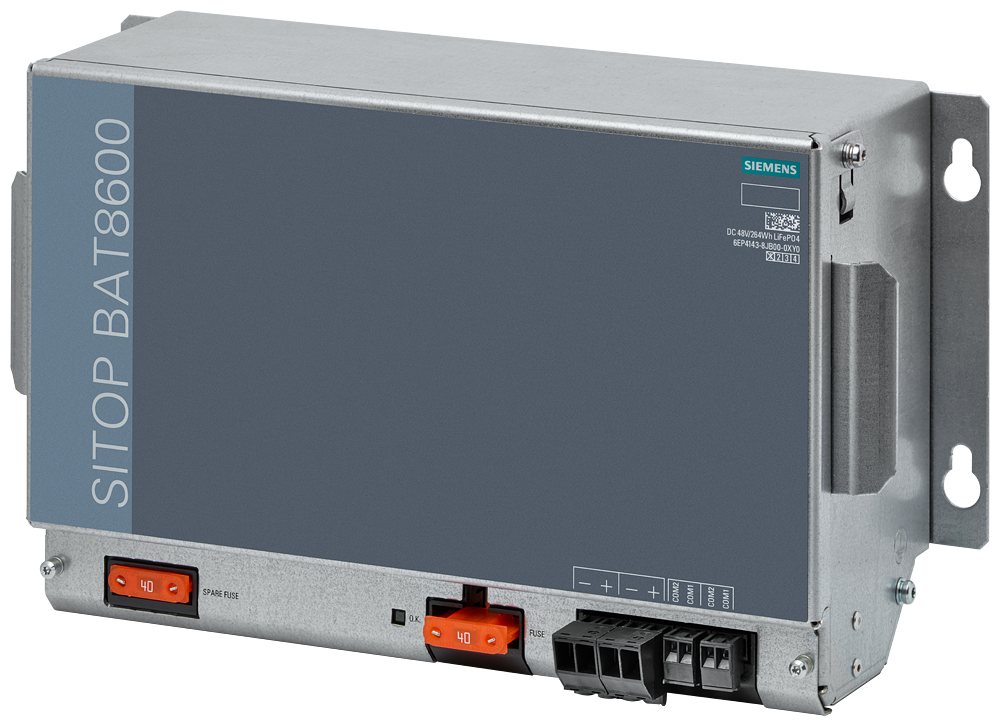

Siemens 6EP4143-8JB00-0XY0 SITOP BAT8600 LiFePO4 48V/358Wh Battery DC UPS Module
SITOP BAT8600 LiFePO4 battery module, 48V/358Wh, 20A, for UPS8600 backup power
Description
About the BAT8600
About the BAT8600
The Siemens 6EP4143-8JB00-0XY0 is a SITOP BAT8600 LiFePO4 battery module that stores 358 W-h at 48 V DC for the SITOP UPS8600 uninterruptible power system, delivering 20 A rated output current. Its maintenance-free lithium iron phosphate cells bridge roughly 21 minutes at a 960 W system load, and up to five modules can be paralleled to extend backup time.
Certifications & Standards
- CE
- EAC
- CB
- Shipbuilding
- ABS
- DNV
- EPD
Selection Notes
Service life falls sharply with ambient temperature: 15 years at 10 C drops to 2 years at 50 C, so cabinet ventilation and mounting location drive the replacement interval more than the headline capacity rating does. At a 960 W system load the module bridges about 21 minutes; halving the load to 480 W nearly doubles that to 42 minutes, which matters when sizing a controlled-shutdown window against the actual downstream draw. Up to five BAT8600 modules can be paralleled on the same UPS8600 bus to extend runtime without changing the charger or communication wiring.
Specification
Full specification
General information 5
| product brand name | SITOP |
|---|---|
| product type designation | BAT8600 |
| product designation | Battery module 358 Wh |
| type of battery | maintenance-free LiFePO4 rechargeable battery |
| product version | Extension module/battery module |
Output 5
| energy content of energy storage | 358 W·h |
|---|---|
| output current rated value | 20 A |
| output voltage at DC rated value | 48 V |
| design of the mains power cut bridging-connection | typ. 21 min at 960 W system load, typ. 42 min at 480 W system load (applies to new, fully charged battery module at ambient temperature 25°C) |
| number of parallel-switched equipment resources for increasing the power | 5 |
Interfaces 1
| communication function | Yes |
|---|
Show all 75 specifications ↓ Show less ↑64 more values in Identification, Protection and monitoring, Safety, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Service life, Connection method, Mechanical data, Accessories, Additional information, Version Classification, Logistics.
Identification 10
| Part number | 6EP4143-8JB00-0XY0 |
|---|---|
| Type designation | BAT8600 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515155096 |
| ETIM class | EC000357 |
| eCl@ss | 27050403 |
Protection and monitoring 3
| design of short-circuit protection | Blade-type fuse 40 A, 58 V DC |
|---|---|
| design of the overload protection | Valve control |
| display version for normal operation | 3-color LED for operating state module |
Safety 2
| operating resource protection class | Class III |
|---|---|
| protection class IP | IP20 |
Standards, specifications, approvals 4
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus (UL 61010-1 3rd Ed., UL 61010-2-201 2nd Ed.) |
| certificate of suitability: EAC approval | Yes |
| type of certification CB-certificate | Yes |
Standards, specifications, approvals hazardous environments 1
| certificate of suitability: ATEX | No |
|---|
Standards, specifications, approvals marine classification 3
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 65.113 kg |
| global warming potential [CO2 eq]: during manufacturing | 61.5 kg |
| global warming potential [CO2 eq]: during operation | 0.402 kg |
| global warming potential [CO2 eq]: after end of life | 1.172 kg |
Ambient conditions 4
| ambient condition | For storage, mounting and operation of batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. |
|---|---|
| ambient temperature: during operation | -10 ... +50 °C |
| ambient temperature: during transport | -30 ... +70 °C |
| ambient temperature: during storage | -20 ... +35 °C |
Service life 7
| service life of energy storage: typical | capacity falls to 80 % of original capacity (according to EUROBAT) |
|---|---|
| service life of energy storage: at 10 °C typical | 15 a |
| service life of energy storage: at 20 °C typical | 13 a |
| service life of energy storage: at 30 °C typical | 8 a |
| service life of energy storage: at 40 °C typical | 4 a |
| service life of energy storage: at 50 °C typical | 2 a |
| note | In addition to the storage temperature, additional factors, such as storage duration and charging status during storage, have a major impact on the potential service life. This means batteries should preferably be stored fully charged for short periods of time in a dry, cool and frost-proof (temperature range 0 to +20 °C) location. |
Connection method 3
| type of electrical connection | Plug-in terminals with screwed connection |
|---|---|
| for UPS module | +, -: 2 plug-in terminals with 1 screwed connection each for 0.2 ... 10 mm2 |
| for data cable | COM1, COM2: 2 plug-in terminals with 1 screwed connection each for 0.2 ... 2.5 mm2 |
Mechanical data 11
| width × height × depth of the enclosure | 322 × 187 × 110 mm |
|---|---|
| installation width × mounting height | 322 mm × 207 mm |
| required spacing: top | 20 mm |
| required spacing: bottom | 0 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Keyhole mounting for hooking in to M4 screws |
| DIN-rail mounting | No |
| S7 rail mounting | No |
| wall mounting | Yes |
| number of batteries | 4 |
Accessories 1
| product component included | 2x blade-type fuse 40 A, 58 V DC |
|---|
Additional information 1
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|
Version Classification 3
| eClass | 16 27-05-04-03 |
|---|---|
| ETIM | 10 EC000357 |
| UNSPSC | 15 26-11-17-01 |
Logistics 6
| Net weight | 6 kg |
|---|---|
| Country of origin | Austria |
| Shipping weight | 7.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6EP4143-8JB00-0XY0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- EAC
- CE marking
- EAC approval
- type of certification CB-certificate
- shipbuilding approval
- American Bureau of Shipping Europe Ltd. (ABS)
- Det Norske Veritas (DNV)
- Environmental Product Declaration
Quick answers
Questions about the BAT8600
What is the rated current of BAT8600?
The rated current of BAT8600 is 20 A.
What is the HS code of BAT8600 for customs?
The tariff (HS) code on file for BAT8600 is 85076000.
What is the EAN of BAT8600?
The EAN (GTIN) of BAT8600 is 4025515155096.
Where does BAT8600 ship from, and how fast?
BAT8600 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
