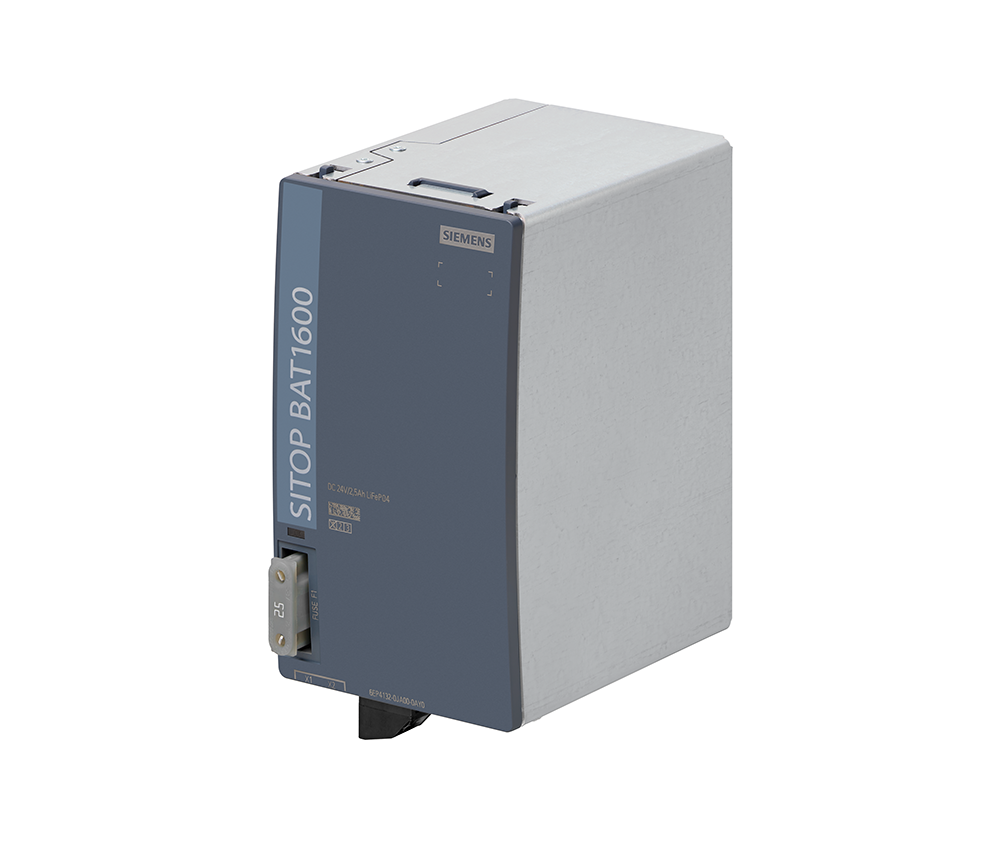

Siemens 6EP4132-0JA00-0AY0 SITOP BAT1600 24V/2.5Ah LiFePO4 Battery Module
SITOP BAT1600 24V DC 2.5Ah LiFePO4 lithium battery module, IP20, DIN rail/wall mount
Description
About the BAT1600
About the BAT1600
The Siemens 6EP4132-0JA00-0AY0 is a SITOP BAT1600 battery module with a maintenance-free LiFePO4 lithium cell rated 24 V DC at 2.5 Ah, built for the SITOP UPS1600 platform. It supplies a rated output current of 10 A and a peak current of 45 A for 30 ms during buffering, with a single cell inside a 2 kg enclosure.
Certifications & Standards
- CE
- UKCA
- CB
- ABS
Selection Notes
The single-cell LiFePO4 pack gives an 11-year typical service life at 20 degrees C versus a lead-acid module's 10 years, and it holds that life better up to 40 degrees C (8 years) where lead-acid degrades faster. The 10 A rated output current sizes this module for the lower-current SITOP UPS1600 units rather than the higher-current variants, which need a higher-capacity battery. Not approved for air freight, which affects logistics planning for remote installations.
Specification
Full specification
General information 5
| product brand name | SITOP |
|---|---|
| product type designation | BAT1600 |
| product designation | 2.5 Ah Li |
| type of battery | maintenance-free LiFePO4 rechargeable battery |
| product version | Extension module/battery module |
Electrical data 6
| end-of-charge voltage at DC: at -10 °C recommended | 28.8 V |
|---|---|
| end-of-charge voltage at DC: at 0 °C recommended | 28.8 V |
| end-of-charge voltage at DC: at 20 °C recommended | 28.8 V |
| end-of-charge voltage at DC: at 30 °C recommended | 28.8 V |
| end-of-charge voltage at DC: at 40 °C recommended | 28.8 V |
| end-of-charge voltage at DC: at 50 °C recommended | 28.8 V |
Output 6
| battery capacity | 2.5 A·h |
|---|---|
| output current rated value | 10 A |
| output current in buffering mode maximum | 10 A |
| peak current | 45 A; for 30 ms |
| charging current maximum | 3 A |
| output voltage at DC rated value | 24 V |
Show all 81 specifications ↓ Show less ↑64 more values in Identification, Interfaces, Protection and monitoring, Safety, Standards, specifications, approvals, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Service life, Connection method, Mechanical data, Accessories, Version Classification, Logistics.
Identification 10
| Part number | 6EP4132-0JA00-0AY0 |
|---|---|
| Type designation | BAT1600 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515155843 |
| ETIM class | EC000357 |
| eCl@ss | 27050403 |
Interfaces 1
| communication function | Yes |
|---|
Protection and monitoring 2
| design of short-circuit protection | 25A / 32V Maxi flat fuse |
|---|---|
| display version for normal operation | Three-color: green = Buffer ready; yellow = Buffer endangered; red = Buffer not possible |
Safety 2
| operating resource protection class | Class III |
|---|---|
| protection class IP | IP20 |
Standards, specifications, approvals 5
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 61010-1, UL61010-2-201 , CSA C22.2 No. 61010-1, CSA C22.2 NO 61010-2-201), File E143289 |
| certificate of suitability: UKCA marking | Yes |
| type of certification CB-certificate standards, specifications, approvals hazardous environments | Yes |
| certificate of suitability: ATEX | No |
Standards, specifications, approvals marine classification 3
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: Det Norske Veritas (DNV) | in preparation |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 21.638 kg |
| global warming potential [CO2 eq]: during manufacturing | 20.5 kg |
| global warming potential [CO2 eq]: during operation | 0.067 kg |
| global warming potential [CO2 eq]: after end of life | 0.391 kg |
Ambient conditions 5
| ambient condition | For storage, mounting and operation of batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. |
|---|---|
| ambient temperature: during operation | -20 ... +50 °C |
| ambient temperature: during transport | -30 ... +70 °C |
| ambient temperature: during storage | -20 ... +35 °C |
| relative temporary capacity loss at 20 °C in a month typical | 1% |
Service life 7
| service life of energy storage: typical | capacity falls to 80 % of original capacity (according to EUROBAT) |
|---|---|
| service life of energy storage: at 20 °C typical | 11 a |
| service life of energy storage: at 30 °C typical | 11 a |
| service life of energy storage: at 40 °C typical | 8 a |
| service life of energy storage: at 50 °C typical | 6 a |
| service life of energy storage: at 60 °C typical | 2 a |
| note | Along with the storage and operating temperature, other factors such as the duration of the storage period and the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, and within the temperature range 0 to +20 °C. |
Connection method 3
| type of electrical connection | screw terminal |
|---|---|
| for UPS module | 1 screw terminal each for 0.5 ... 10 mm2 for + BAT and - BAT |
| for control circuit and status message | 1 screw terminal each for 0.2 ... 2.5 mm2 |
Mechanical data 11
| width × height × depth of the enclosure | 89 × 156 × 129 mm |
|---|---|
| installation width × mounting height | 89 mm × 256 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | snaps onto DIN rail EN 60715 35x15 or wall mounting with accessories wall mounting set 6EP4990-0MK00-0XU0 |
| DIN-rail mounting | Yes |
| S7 rail mounting | Yes |
| wall mounting | Yes |
| number of cells | 1 |
Accessories 2
| product component included | 2x Maxi Fuse 25 A/32 V |
|---|---|
| mechanical accessories | BAT1600 wall mounting kit 6EP4990-0MK00-0XU0 |
Version Classification 2
| eClass | 16 27-05-04-03 |
|---|---|
| ETIM | 10 EC000357 |
Logistics 6
| Net weight | 2 kg |
|---|---|
| Country of origin | Austria |
| Shipping weight | 2.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
