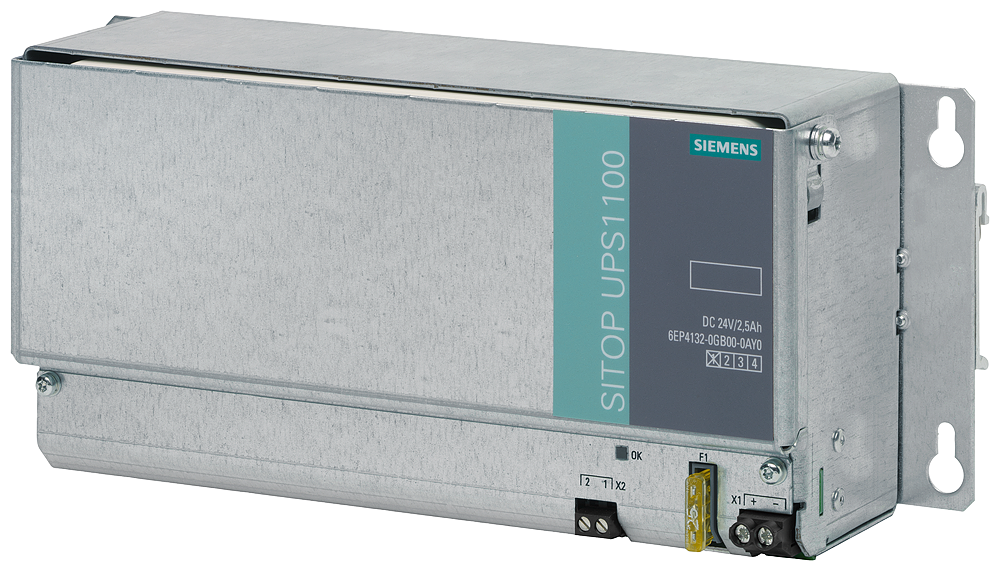

Siemens 6EP4132-0GB00-0AY0 SITOP UPS1100 24V/2.5Ah Pure Lead Battery Module
SITOP UPS1100 24V DC 2.5Ah pure lead-acid battery module, IP20, DIN rail/wall mount
Description
About the UPS1100
About the UPS1100
The Siemens 6EP4132-0GB00-0AY0 is a SITOP UPS1100 battery module with a maintenance-free, sealed pure lead-acid cell rated 24 V DC at 2.5 Ah. It extends the buffering time of a SITOP DC UPS module and delivers a peak current of 60 A for 30 ms during load transients. It snaps onto a DIN rail or mounts to a wall and weighs 3.7 kg.
Certifications & Standards
- CE
- cURus
- EAC
- ABS
- DNV
- EPD
Selection Notes
The 2.5 Ah capacity and 20 A rated output current pair this module with lower-current SITOP DC UPS units rather than 40 A loads, where a higher-capacity battery module would be needed. Service life drops sharply with heat, from 10 years typical at 20 degrees C to 1 year at 60 degrees C, so mounting location and cabinet ventilation matter more than the buffering time spec alone. DIN-rail snap-on or keyhole wall mounting gives two installation options in the same footprint.
Specification
Full specification
General information 5
| product brand name | SITOP |
|---|---|
| product type designation | UPS1100 |
| product designation | Battery module 2.5 Ah |
| type of battery | maintenance-free pure lead batteries |
| product version | Extension module/battery module |
Electrical data 7
| end-of-charge voltage at DC: at -10 °C recommended | 28 V |
|---|---|
| end-of-charge voltage at DC: at 0 °C recommended | 28 V |
| end-of-charge voltage at DC: at 20 °C recommended | 27.3 V |
| end-of-charge voltage at DC: at 30 °C recommended | 26.8 V |
| end-of-charge voltage at DC: at 40 °C recommended | 26.6 V |
| end-of-charge voltage at DC: at 50 °C recommended | 26.3 V |
| end-of-charge voltage at DC: at 60 °C recommended | 26 V |
Output 6
| battery capacity | 2.5 A·h |
|---|---|
| output current rated value | 20 A |
| output current in buffering mode maximum | 20 A |
| peak current | 60 A; for 30 ms |
| charging current maximum | 5 A |
| output voltage at DC rated value | 24 V |
Show all 82 specifications ↓ Show less ↑64 more values in Identification, Interfaces, Protection and monitoring, Safety, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Service life, Connection method, Mechanical data, Accessories, Version Classification, Logistics.
Identification 10
| Part number | 6EP4132-0GB00-0AY0 |
|---|---|
| Type designation | UPS1100 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515154280 |
| ETIM class | EC000357 |
| eCl@ss | 27050403 |
Interfaces 1
| communication function | Yes |
|---|
Protection and monitoring 3
| design of short-circuit protection | Battery fuse 25 A/32 V (solid-state circuitry blade-type fuse + support) |
|---|---|
| design of the overload protection | Valve control |
| display version for normal operation | LED green: Battery OK; LED flashing green: Error or warning; OFF: No communication |
Safety 2
| operating resource protection class | Class III |
|---|---|
| protection class IP | IP20 |
Standards, specifications, approvals 3
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cURus-Recognized (UL 1778, CSA C22.2 No. 107.1), File E219627 |
| certificate of suitability: EAC approval | Yes |
Standards, specifications, approvals hazardous environments 1
| certificate of suitability: ATEX | No |
|---|
Standards, specifications, approvals marine classification 3
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 12.888 kg |
| global warming potential [CO2 eq]: during manufacturing | 9.327 kg |
| global warming potential [CO2 eq]: during operation | 2.021 kg |
| global warming potential [CO2 eq]: after end of life | 0.366 kg |
Ambient conditions 5
| ambient condition | For storage, mounting and operation of lead-acid batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. You must ensure that the battery site is sufficiently ventilated. Possible sources of ignition must be at least 50 cm away. |
|---|---|
| ambient temperature: during operation | -40 ... +60 °C |
| ambient temperature: during transport | -40 ... +60 °C |
| ambient temperature: during storage | -40 ... +60 °C |
| relative temporary capacity loss at 20 °C in a month typical | 3% |
Service life 7
| service life of energy storage: typical | capacity falls to 80 % of original capacity (according to EUROBAT) |
|---|---|
| service life of energy storage: at 20 °C typical | 10 a |
| service life of energy storage: at 30 °C typical | 7 a |
| service life of energy storage: at 40 °C typical | 3 a |
| service life of energy storage: at 50 °C typical | 1.5 a |
| service life of energy storage: at 60 °C typical | 1 a |
| note | Along with the storage and operating temperature, other factors such as the duration of the storage period and the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, and within the temperature range 0 to +20 °C. |
Connection method 3
| type of electrical connection | screw terminal |
|---|---|
| for UPS module | 1 screw terminal each for 0.2 ... 6 mm2 for + BAT and - BAT |
| for control circuit and status message | 1 screw terminal each for 0.14 ... 4 mm2 |
Mechanical data 11
| width × height × depth of the enclosure | 265 × 115 × 76 mm |
|---|---|
| installation width × mounting height | 265 mm × 130 mm |
| required spacing: top | 15 mm |
| required spacing: bottom | 0 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | snaps onto DIN rail EN 60715 35x7.5/15 or keyhole mounting for hooking in to M4 screws |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | Yes |
| number of cells | 12 |
Accessories 1
| product component included | Accessories pack with solid-state circuitry fuse 25 A |
|---|
Version Classification 3
| eClass | 16 27-05-04-03 |
|---|---|
| ETIM | 10 EC000357 |
| UNSPSC | 15 26-11-17-01 |
Logistics 6
| Net weight | 3.7 kg |
|---|---|
| Country of origin | Austria |
| Shipping weight | 4.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6EP4132-0GB00-0AY0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE marking
- EAC approval
- shipbuilding approval
- American Bureau of Shipping Europe Ltd. (ABS)
- Det Norske Veritas (DNV)
- Environmental Product Declaration
Quick answers
Questions about the UPS1100
What is the rated current of UPS1100?
The rated current of UPS1100 is 20 A.
What is the HS code of UPS1100 for customs?
The tariff (HS) code on file for UPS1100 is 85072080.
What is the EAN of UPS1100?
The EAN (GTIN) of UPS1100 is 4025515154280.
Where does UPS1100 ship from, and how fast?
UPS1100 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
