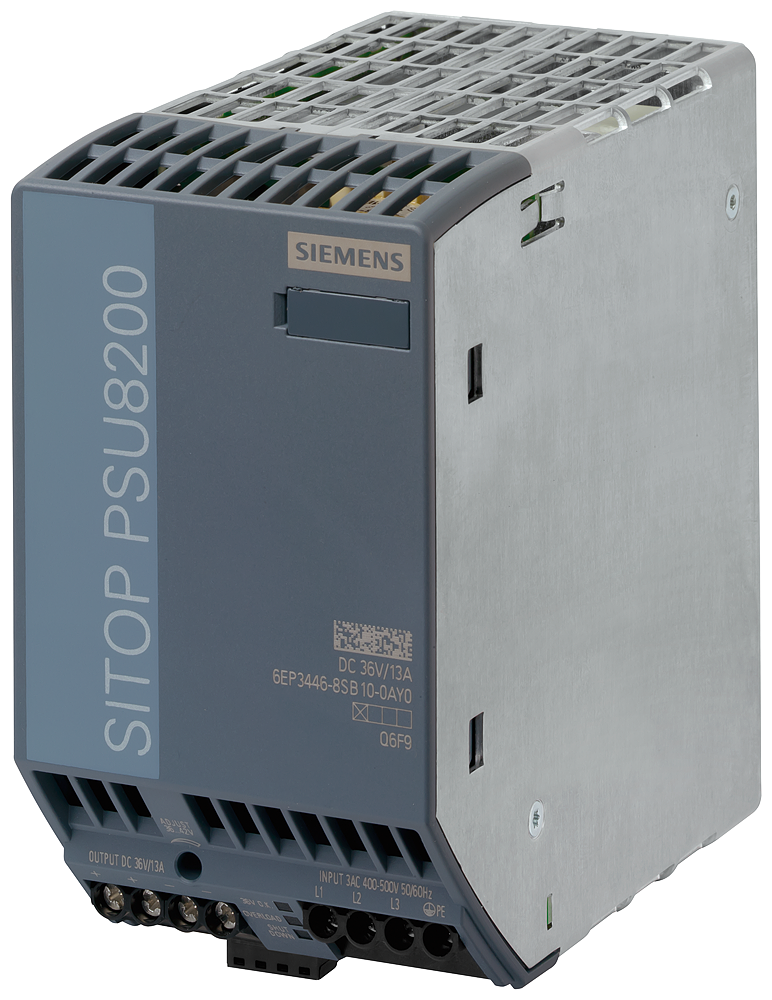

SITOP PSU8200Siemens 6EP3446-8SB10-0AY0 SITOP PSU8200 3AC 36V/13A DIN Rail Power Supply
SITOP PSU8200 three-phase power supply, 400-500V AC input, 36V DC/13A output, IP20, compact 70x125x125mm.
Description
About the PSU8200
About the PSU8200
The Siemens 6EP3446-8SB10-0AY0 is a SITOP PSU8200 three-phase power supply that takes 400-500 V AC input and delivers a stabilized, adjustable 36 V DC output rated at 13 A (468 W), with soft-start switch-on, 94% efficiency, a relay contact for 36 V OK signaling, and a compact 70x125x125 mm DIN-rail enclosure.
Certifications & Standards
- CE
- cULus
- EAC
- RCM
- SEMI F47
- CB
- Shipbuilding Approval
- DNV
- EPD
Selection Notes
The 6EP3446-8SB10-0AY0 is the 36 V/13 A member of the compact PSU8200 family, sized for 36 V DC circuits found in some battery-backed or telecom-derived control systems rather than the more common 24 V or 48 V rails. It shares its 70 x 125 x 125 mm enclosure, input range, and mounting method with the 48 V/10 A PSU8200 sibling, so the two can be mixed on the same DIN rail layout without redesigning the cabinet. Choose the 48 V/10 A variant instead when the downstream load runs on a 48 V rail; this 36 V/13 A model's 468 W output is close to the other unit's 480 W, so the choice between them is driven by required output voltage rather than available power.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU8200 |
| product designation | Power supply SITOP modular |
| type of current supply | 36 V/13 A |
Input 19
| type of the power supply network | 3-phase AC |
|---|---|
| phase number | 3 |
| voltage curve at input | AC |
| supply voltage at AC: minimum rated value | 400 V |
| supply voltage at AC: maximum rated value | 500 V |
| supply voltage at AC: initial value | 320 V |
| supply voltage at AC: full-scale value | 575 V |
| supply voltage: at 50 Hz | 400 V |
| supply voltage: at 60 Hz | 500 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 15 ms |
| operating condition of the mains buffering | at Vin = 400 V |
| input current: at rated input voltage 400 V | 1.2 A |
| input current: at rated input voltage 500 V | 1 A |
| current limitation of inrush current at 25 °C maximum | 16 A |
| I2t value maximum | 0.8 A2·s |
| fuse protection type | none |
| fuse protection type in the feeder | Required: 3-pole connected miniature circuit breaker 6 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) |
Output 25
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 36 V |
| output voltage: at output 1 at DC rated value | 36 V |
| output voltage: at output 1 at DC | 36 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 36 ... 42 V; max. 480 W |
| relative overall tolerance of the voltage | 3% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.1 % |
| residual ripple: maximum | 100 mV |
| voltage peak: maximum | 200 mV |
| display version for normal operation | Green LED for 36 V OK |
| type of signal at output | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for 36 V OK |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 2.5 s |
| voltage increase time of the output voltage: maximum | 500 ms |
| output current: rated value | 13 A |
| output current: rated range | 0 ... 13 A; +60 ... +70 °C: Derating 2%/K |
| supplied active power typical | 468 W |
| short-term overload current: at short-circuit during operation typical | 39 A |
| duration of overloading capability for excess current: at short-circuit during operation | 25 ms |
| constant overload current: on short-circuiting during the start-up typical | 14 A |
| bridging of equipment | Yes; switchable characteristic |
| number of parallel-switched equipment resources for increasing the power | 2 |
Show all 135 specifications ↓ Show less ↑87 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Connection method, Mechanical data, Accessories, Further information internet links, Additional information, Approvals Certificates, Logistics.
Identification 10
| Part number | 6EP3446-8SB10-0AY0 |
|---|---|
| Type designation | PSU8200 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515154716 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 2
| efficiency in percent | 94 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 30 W |
Closed-loop control 8
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.1 % |
|---|---|
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 1% |
| setting time: load step 50 to 100% typical | 0.2 ms |
| setting time: load step 100 to 50% typical | 0.2 ms |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 2% |
| setting time: load step 10 to 90% typical | 0.2 ms |
| setting time: load step 90 to 10% typical | 0.2 ms |
| setting time: maximum | 10 ms |
Protection and monitoring 13
| design of the overvoltage protection | < 48 V |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Alternatively, constant current characteristic approx. 14 A or latching shutdown |
| typical | 14 A |
| overcurrent overload capability: in normal operation | overload capability 150 % Iout rated up to 5 s/min |
| enduring short circuit current RMS value: typical | 14 A |
| display version for overload and short circuit safety | LED yellow for "overload", LED red for "latching shutdown" |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current: maximum | 3.5 mA |
| leakage current: typical | 0.9 mA |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 55022 Class B |
|---|---|
| standard: for mains harmonics limitation | EN 61000-3-2 |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability: NEC Class 2 | No |
| certificate of suitability: SEMI F47 | Yes |
| type of certification: CB-certificate | Yes |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 789.2 kg |
| global warming potential [CO2 eq]: during manufacturing | 28.7 kg |
| global warming potential [CO2 eq]: during operation | 759.9 kg |
| global warming potential [CO2 eq]: after end of life | 0.24 kg |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C; with natural convection |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 4
| type of electrical connection | screw terminal |
|---|---|
| at input | L1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm2 single-core/finely stranded |
| at output | +, -: 2 screw terminals each for 0.2 ... 4 mm2 |
| for auxiliary contacts | 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm2; 15, 16 (Remote): 1 screw terminal each for 0.14 ... 1.5 mm2 |
Mechanical data 11
| width × height × depth of the enclosure | 70 × 125 × 125 mm |
|---|---|
| installation width × mounting height | 70 mm × 225 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Accessories 1
| mechanical accessories | Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20 |
|---|
Further information internet links 1
| identification link | Yes; acc. to IEC 61406-1:2022 |
|---|
Additional information 1
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 28.7 kg |
|---|
Logistics 7
| Net weight | 1.1 kg |
|---|---|
| Package dimensions | 133 × 130 × 74 mm |
| Country of origin | Romania |
| Shipping weight | 1.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
