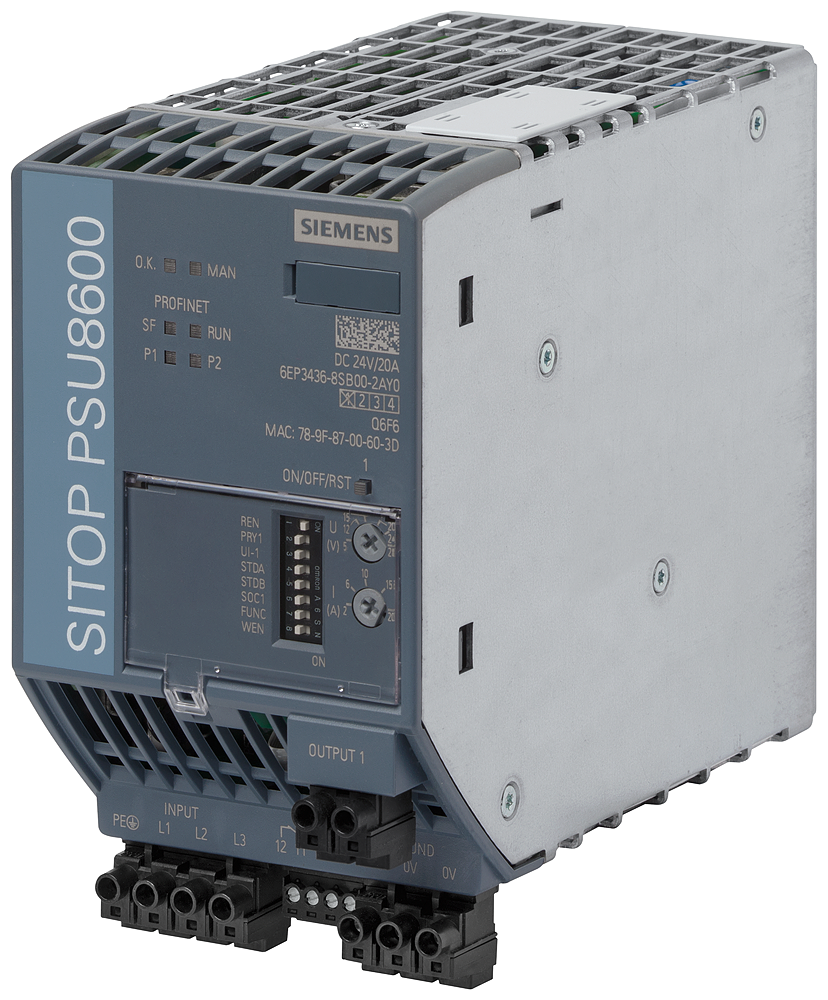

SITOP PSU8600Siemens 6EP3436-8SB00-2AY0 SITOP PSU8600 3AC 24V/20A PN Power Supply
SITOP PSU8600 power supply, 400-500V 3AC input, 24V DC/20A output, PROFINET and OPC UA server, IP20.
Description
About the PSU8600
About the PSU8600
The Siemens 6EP3436-8SB00-2AY0 is a SITOP PSU8600 single-output power supply that delivers a stabilized 24 V DC output rated at 20 A (480 W) from a 400-500 V 3AC input, featuring an integrated PROFINET interface, a built-in web server, and an OPC UA server for remote monitoring, diagnostics, and configuration.
Certifications & Standards
- CE
- cULus
- EAC
- SEMI F47
- BIS
- CB
- Shipbuilding Approval
- ABS
- DNV
- EPD
Selection Notes
The 6EP3436-8SB00-2AY0 is the single-output 20 A member of the PSU8600 PROFINET family, suited to a machine section running off one shared 24 V DC bus rather than several independently supervised circuits. Compared to the 4x5 A variant in the same series, this model trades per-branch fault isolation for a simpler single-loop wiring scheme at the same 480 W total power. The PROFINET connection with built-in web server and OPC UA server reports output voltage, current, and DC-OK state without separate signal wiring back to the controller, and the remote-reset input lets a fault be cleared from the PLC program instead of a cabinet visit. Where four separately monitored 24 V branches are needed instead, the 8MB00 4x5 A model in the same PSU8600 family covers that requirement in a similar footprint.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU8600 |
| product designation | Power supply SITOP PSU8600 |
| type of current supply | 24 V/20 A |
Input 20
| type of the power supply network | 3-phase AC |
|---|---|
| phase number | 3 |
| voltage curve at input | AC |
| supply voltage at AC: minimum rated value | 400 V |
| supply voltage at AC: maximum rated value | 500 V |
| supply voltage at AC: initial value | 320 V |
| supply voltage at AC: full-scale value | 575 V |
| supply voltage at AC | Derating 320 ... 360 and 530 ... 575 V |
| supply voltage: at 50 Hz | 400 V |
| supply voltage: at 60 Hz | 500 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 15 ms |
| operating condition of the mains buffering | at Vin = 400 V; Prioritized supply of the output in case of power failure selectable via DIP switch (only in conjunction with CNX8600 expansion module) |
| input current: at rated input voltage 400 V | 1.4 A |
| input current: at rated input voltage 500 V | 1.1 A |
| current limitation of inrush current at 25 °C maximum | 14 A |
| I2t value maximum | 1.2 A2·s |
| fuse protection type | none |
| fuse protection type in the feeder | Required: 3-pole connected miniature circuit breaker 6 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) |
Output 28
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| number of outputs | 1 |
| output voltage at DC rated value | 24 V |
| output voltage: at output 1 at DC rated value | 24 V |
| output voltage: at output 1 at DC | 5 ... 24 V |
| output voltage adjustable | Yes; via potentiometer or IE/PN interface |
| adjustable output voltage | 4 ... 28 V; Derating > 24 V: 4%/V; max. 480 W overall system |
| relative overall tolerance of the voltage | 3% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.2 % |
| residual ripple: maximum | 100 mV |
| voltage peak: maximum | 200 mV |
| display version for normal operation | 3-color LED for operating state device; LED for operating mode manual/remote; 4 LEDs for communication PROFINET; 3-color LED for operating state output |
| type of signal at output | Relay contact (changeover contact, contact current capacity DC 60 V/0.3 A) for "Operating state OK" |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 1 s |
| type of outputs connection | simultaneous switch-on of all outputs after device power-up or delay time of 25 ms, 100 ms, or "load-optimized" for sequential switch-on of the outputs via DIP switch configurable (only in connection with expansion module CNX8600) |
| voltage increase time of the output voltage: maximum | 500 ms |
| output current: rated value | 20 A |
| output current: per output | 20 A |
| output current: at output 1 rated value | 20 A |
| output current: rated range | 0 ... 20 A; +50 ... +60 °C: Derating 2.5%/K; no derating in connection with expansion module CNX8600 and total load of the outputs at the basic device max. 240 W |
| supplied active power typical | 480 W |
| short-term overload current: at short-circuit during operation typical | 60 A; only in operation without CNX8600 extension module |
| duration of overloading capability for excess current: at short-circuit during operation | 25 ms |
| bridging of equipment | Yes; suitable output characteristics via DIP switch can be selected |
| number of parallel-switched equipment resources for increasing the power | 2 |
Show all 150 specifications ↓ Show less ↑98 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, Interfaces, Safety, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Connection method, Mechanical data, Accessories, Additional information, Version Classification, Logistics.
Identification 10
| Part number | 6EP3436-8SB00-2AY0 |
|---|---|
| Type designation | PSU8600 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515154617 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 3
| efficiency in percent | 93 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 34 W |
| power loss [W]: during no-load operation maximum | 12 W |
Closed-loop control 3
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.1 % |
|---|---|
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 0.4 % |
| setting time: maximum | 10 ms |
Protection and monitoring 11
| design of the overvoltage protection | max. 35 V (max. 500 ms) |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Electronic overload shutdown; optional constant-current operation can be selected via DIP switch |
| adjustable current response value current of the current-dependent overload release | 2 ... 20 A |
| type of response value setting | via potentiometer or IE/PN interface |
| switching characteristic: of the excess current | Ia >1.0...<1.5 x Ia threshold for 5 s permissible; Ia limit (= 1.5 x Ia threshold) for 200 ms permissible |
| switching characteristic: of the current limitation | Ia limit (= 1.5 x Ia threshold) permissible for 5 s, afterwards Ia threshold continuous |
| overcurrent overload capability: in normal operation | Total system overloadable 150% Ia rated to 5 s/min |
| display version for overload and short circuit | 3-color LED for operating state device; 3-color LED for operating state output |
| design of the reset device/resetting mechanism | via sensor or IE/PN interface |
| remote reset function | non-isolated 24 V input (signal level "high" at > 15 V) |
Interfaces 4
| product function communication function | Yes |
|---|---|
| design of the interface | Ethernet/PROFINET |
| design of the interface PROFINET protocol | Yes |
| protocol is supported: OPC UA | Yes |
Safety 5
| galvanic isolation between input and output | Yes |
|---|---|
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current: maximum | 3.5 mA |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 55022 Class B |
|---|---|
| standard: for mains harmonics limitation | EN 61000-3-2 |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: NEC Class 2 | No |
| certificate of suitability: SEMI F47 | Yes |
| type of certification: BIS | Yes; R-41188271 |
| type of certification: CB-certificate | Yes |
| MTBF at 40 °C | 298 979 h |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 904.9 kg |
| global warming potential [CO2 eq]: during manufacturing | 43.1 kg |
| global warming potential [CO2 eq]: during operation | 861 kg |
| global warming potential [CO2 eq]: after end of life | 0.36 kg |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +60 °C; with natural convection |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 9
| type of electrical connection | Plug-in terminals with screwed connection |
|---|---|
| at input | L1, L2, L3, PE: Plug-in terminal with 1 screwed connection each for 0.2 ... 4 mm2 single-wire / fine stranded |
| at output | Output: plug-in terminals with 2 screw connectors for 0.2 ... 4 mm2; 0 V: screw terminal with 3 screw connectors for 0.2 ... 4 mm2 |
| for auxiliary contacts | RST (Reset): Plug-in terminal (together with alarm signal) with 1 screwed connection for 0.2 ... 1.5 mm2 |
| for signaling contact | 11, 12, 14 (alarm signal): Plug-in terminal (together with Reset) with 1 screwed connection each for 0.2 ... 1.5 mm2 |
| removable terminal at input | Yes |
| removable terminal at output | Yes |
| design of the interface for communication | PROFINET/Ethernet: two RJ45 sockets (2-port switch) |
| suitability for interaction modular system | Yes |
Mechanical data 11
| width × height × depth of the enclosure | 80 × 125 × 150 mm |
|---|---|
| installation width × mounting height | 80 mm × 225 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Accessories 2
| electrical accessories | Expansion modules CNX8600, buffer modules BUF8600, module UPS8600 |
|---|---|
| mechanical accessories | Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20 |
Additional information 1
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|
Version Classification 4
| eClass | 16 27-04-07-01 |
|---|---|
| ETIM | 10 EC002540 |
| IDEA | 4 4130 |
| UNSPSC | 15 39-12-10-04 |
Logistics 6
| Net weight | 1.8 kg |
|---|---|
| Country of origin | Romania |
| Shipping weight | 2.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
