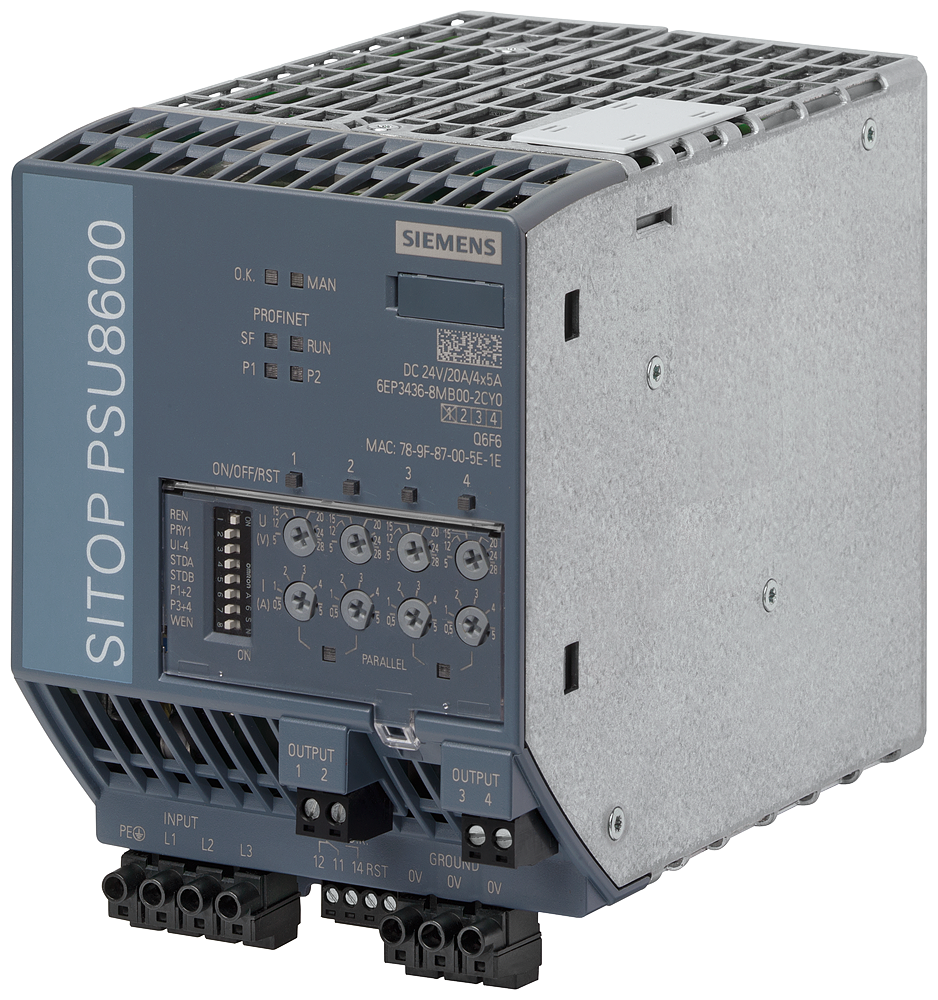

SITOP PSU8600Siemens 6EP3436-8MB00-2CY0 SITOP PSU8600 3AC 24V 20A/4x5A PN Power Supply
SITOP PSU8600 power supply, 400-500V 3AC input, 4x 24V DC/5A outputs, PROFINET and OPC UA server, IP20.
Description
About the PSU8600
About the PSU8600
The Siemens 6EP3436-8MB00-2CY0 is a SITOP PSU8600 power supply with four independently monitored 24 V DC outputs rated 5 A each (20 A / 480 W total system power), taking 400-500 V 3AC input and offering an integrated PROFINET interface with a built-in web server and OPC UA server for remote diagnostics.
Certifications & Standards
- CE
- cULus
- EAC
- SEMI F47
- BIS
- CB
- Shipbuilding Approval
- ABS
- DNV
- EPD
Selection Notes
The 6EP3436-8MB00-2CY0 is the 4x5 A PROFINET variant of the PSU8600 family, built for machines where several 24 V DC circuits (sensors, I/O groups, valve banks) need to be monitored and reset independently rather than sharing a single output. Each output can be paired via DIP switch (1 with 2, or 3 with 4) when a section needs more than 5 A, up to the 480 W system ceiling. The integrated web server and OPC UA server expose per-output voltage, current, and fault status over the same PROFINET connection used for control traffic, removing the need for separate analog wiring back to the PLC for power monitoring. For a single higher-current 24 V rail instead of four independent ones, the 8SB00 single-output PSU8600 variant in the same family is the better fit; for double the per-output current, the 4x10 A 8437 model steps up within the same footprint class.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU8600 |
| product designation | Power supply SITOP PSU8600 |
| type of current supply | 24 V/20 A/4x 5 A |
Input 20
| type of the power supply network | 3-phase AC |
|---|---|
| phase number | 3 |
| voltage curve at input | AC |
| supply voltage at AC: minimum rated value | 400 V |
| supply voltage at AC: maximum rated value | 500 V |
| supply voltage at AC: initial value | 320 V |
| supply voltage at AC: full-scale value | 575 V |
| supply voltage at AC | Derating 320 ... 360 and 530 ... 575 V |
| supply voltage: at 50 Hz | 400 V |
| supply voltage: at 60 Hz | 500 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 15 ms |
| operating condition of the mains buffering | at Vin = 400 V; Prioritized supply of Output 1 in case of power failure selectable via DIP switch |
| input current: at rated input voltage 400 V | 1.4 A |
| input current: at rated input voltage 500 V | 1.1 A |
| current limitation of inrush current at 25 °C maximum | 14 A |
| I2t value maximum | 1.2 A2·s |
| fuse protection type | none |
| fuse protection type in the feeder | Required: 3-pole connected miniature circuit breaker 6 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) |
Output 35
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| number of outputs | 4 |
| output voltage at DC rated value | 24 V |
| output voltage: at output 1 at DC rated value | 24 V |
| output voltage: at output 2 at DC rated value | 24 V |
| output voltage: at output 3 at DC rated value | 24 V |
| output voltage: at output 4 at DC rated value | 24 V |
| output voltage: at output 1 at DC | 5 ... 24 V |
| output voltage: at output 2 at DC | 5 ... 24 |
| output voltage: at output 3 at DC | 5 ... 24 |
| output voltage: at output 4 at DC | 5 ... 24 |
| output voltage adjustable | Yes; via potentiometer or IE/PN interface |
| adjustable output voltage | 4 ... 28 V; Derating > 24 V: 4%/V; max. 120 W per output, max. 480 W overall system |
| relative overall tolerance of the voltage | 3% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.2 % |
| residual ripple: maximum | 100 mV |
| voltage peak: maximum | 200 mV |
| display version for normal operation | 3-color LED for operating state device; LED for operating mode manual/remote; 4 LEDs for communication PROFINET; 3-color LED per output for operating state output; LED green for parallel operation Output 1 and 2 / 3 and 4 |
| type of signal at output | Relay contact (changeover contact, contact current capacity DC 60 V/0.3 A) for "Operating state OK" |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 1 s; Without on-delay of the outputs |
| type of outputs connection | simultaneous switch-on of all outputs after device power-up or delay time of 25 ms, 100 ms, or "load-optimized" for sequential switch-on of the outputs via DIP switch configurable |
| voltage increase time of the output voltage: maximum | 500 ms |
| output current: rated value | 20 A |
| output current: per output | 5 A |
| output current: at output 1 rated value | 5 A |
| output current: at output 2 rated value | 5 A |
| output current: at output 3 rated value | 5 A |
| output current: at output 4 rated value | 5 A |
| output current: rated range | 0 ... 20 A; +50 ... +60 °C: Derating 2.5%/K; no derating in connection with expansion module CNX8600 and total load of the outputs at the basic device max. 240 W |
| supplied active power typical | 480 W |
| parallel switching of outputs | Yes; Parallel circuit Output 1 with 2 or Output 3 with 4 can be selected via DIP switch |
| bridging of equipment | No |
Show all 157 specifications ↓ Show less ↑98 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, Interfaces, Safety, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Connection method, Mechanical data, Accessories, Additional information, Version Classification, Logistics.
Identification 10
| Part number | 6EP3436-8MB00-2CY0 |
|---|---|
| Type designation | PSU8600 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515154600 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 3
| efficiency in percent | 93 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 34 W |
| power loss [W]: during no-load operation maximum | 12 W |
Closed-loop control 3
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.1 % |
|---|---|
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 0.4 % |
| setting time: maximum | 10 ms |
Protection and monitoring 11
| design of the overvoltage protection | max. 35 V (max. 500 ms) |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | electronic overload cut-off; optionally constant current operation can be selected for Output 4 via DIP switches |
| adjustable current response value current of the current-dependent overload release | 0.5 ... 5 A |
| type of response value setting | via potentiometer or IE/PN interface |
| switching characteristic: of the excess current | Ia >1.0...<1.5 x Ia threshold for 5 s permissible; Ia limit (= 1.5 x Ia threshold) for 200 ms permissible |
| switching characteristic: of the current limitation | Ia limit (= 1.5 x Ia threshold) permissible for 5 s, afterwards Ia threshold continuous |
| overcurrent overload capability: in normal operation | Total system overloadable 150% Ia rated to 5 s/min |
| display version for overload and short circuit | 3-color LED for operating state device; 3-color LED per output for operating state output |
| design of the reset device/resetting mechanism | via sensor per output or IE/PN interface |
| remote reset function | non-isolated 24 V input (signal level "high" at > 15 V) |
Interfaces 4
| product function communication function | Yes |
|---|---|
| design of the interface | Ethernet/PROFINET |
| design of the interface PROFINET protocol | Yes |
| protocol is supported: OPC UA | Yes |
Safety 5
| galvanic isolation between input and output | Yes |
|---|---|
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current: maximum | 3.5 mA |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 55022 Class B |
|---|---|
| standard: for mains harmonics limitation | EN 61000-3-2 |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: NEC Class 2 | No |
| certificate of suitability: SEMI F47 | Yes |
| type of certification: BIS | Yes; R-41188271 |
| type of certification: CB-certificate | Yes |
| MTBF at 40 °C | 243 178 h |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 909.8 kg |
| global warming potential [CO2 eq]: during manufacturing | 47.8 kg |
| global warming potential [CO2 eq]: during operation | 861 kg |
| global warming potential [CO2 eq]: after end of life | 0.4 kg |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +60 °C; with natural convection |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 9
| type of electrical connection | Plug-in terminals with screwed connection |
|---|---|
| at input | L1, L2, L3, PE: Plug-in terminal with 1 screwed connection each for 0.2 ... 4 mm2 single-wire / fine stranded |
| at output | 1, 2, 3, 4: Two plug-in terminals (1, 2 and 3, 4) with 2 screwed connections each for 0.2 ... 2.5 mm2; 0 V: Plug-in terminal with 3 screwed connections for 0.2 ... 4 mm2 |
| for auxiliary contacts | RST (Reset): Plug-in terminal (together with alarm signal) with 1 screwed connection for 0.2 ... 1.5 mm2 |
| for signaling contact | 11, 12, 14 (alarm signal): Plug-in terminal (together with Reset) with 1 screwed connection each for 0.2 ... 1.5 mm2 |
| removable terminal at input | Yes |
| removable terminal at output | Yes |
| design of the interface for communication | PROFINET/Ethernet: two RJ45 sockets (2-port switch) |
| suitability for interaction modular system | Yes |
Mechanical data 11
| width × height × depth of the enclosure | 100 × 125 × 150 mm |
|---|---|
| installation width × mounting height | 100 mm × 225 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Accessories 2
| electrical accessories | Expansion modules CNX8600, buffer modules BUF8600, module UPS8600 |
|---|---|
| mechanical accessories | Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20 |
Additional information 1
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|
Version Classification 4
| eClass | 16 27-04-07-01 |
|---|---|
| ETIM | 10 EC002540 |
| IDEA | 4 4130 |
| UNSPSC | 15 39-12-10-04 |
Logistics 6
| Net weight | 1.98 kg |
|---|---|
| Country of origin | Romania |
| Shipping weight | 2.48 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6EP3436-8MB00-2CY0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE marking
- EAC approval
- SEMI F47
- CB-certificate
- shipbuilding approval
- American Bureau of Shipping Europe Ltd. (ABS)
- Det Norske Veritas (DNV)
- Environmental Product Declaration
Quick answers
Questions about the PSU8600
What is the rated current of PSU8600?
The rated current of PSU8600 is 5 A.
Which supply voltage is PSU8600 rated for?
The rated operational voltage of PSU8600 is 400–500 V AC.
What motor power is PSU8600 rated for?
The rated motor power of PSU8600 is 0.48 kW.
What is the HS code of PSU8600 for customs?
The tariff (HS) code on file for PSU8600 is 85044083.
What is the EAN of PSU8600?
The EAN (GTIN) of PSU8600 is 4025515154600.
Where does PSU8600 ship from, and how fast?
PSU8600 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
