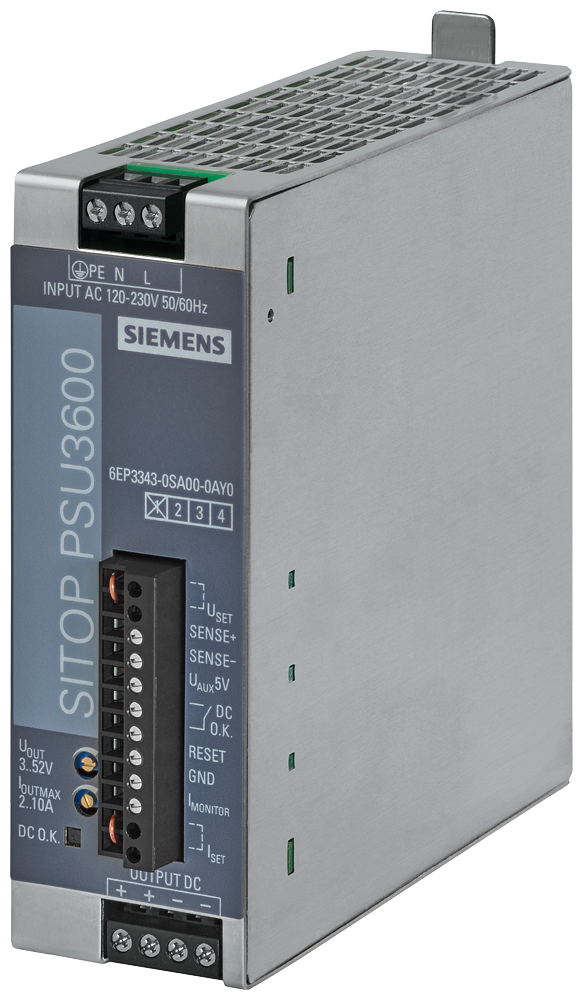

SITOP PSU3600Siemens 6EP3343-0SA00-0AY0 SITOP PSU3600 Flexi 3-52V/10A 120W Power Supply
Siemens SITOP PSU3600 flexi power supply, 120-230V AC input, adjustable 3-52V DC output, 10A/120W.
Description
About the PSU3600
About the PSU3600
The Siemens 6EP3343-0SA00-0AY0 is a SITOP PSU3600 flexi power supply that converts a 120-230 V AC (or 88-250 V DC) input into a DC output adjustable across 3 to 52 V, rated 10 A / 120 W. The output tracks via potentiometer or a 0-2.5 V analog control signal, and the unit reaches 88% efficiency at 120 W typical supplied power.
Certifications & Standards
- CE
- EAC
- RCM
- CB
Selection Notes
The 3-52 V adjustable range, set either by potentiometer or a 0-2.5 V analog control signal, lets one PSU3600 flexi unit replace fixed-voltage supplies across several projects that each need a different DC rail inside that band. The 0-2.5 V current-monitor output feeds an analog input back to a PLC for load tracking without extra sensing hardware, and the 120 W power limiting (rather than a hard current trip) lets the output current fall as voltage is set higher; pick a fixed-output PSU3600 or PSU6200 model instead when the application only ever needs one specific voltage.
Applications
Suited to OEM panels or test setups that need a field-adjustable DC rail between 3 and 52 V, or where the analog control input lets a PLC set the output voltage programmatically.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU3600 |
| product designation | Power supply SITOP PSU3600 flexi |
| type of current supply | 3-52 V/10 A, 120 W |
Input 22
| type of the power supply network | 1-phase AC or DC |
|---|---|
| phase number | 1 |
| voltage curve at input | AC/DC |
| supply voltage at AC: minimum rated value | 120 V |
| supply voltage at AC: maximum rated value | 230 V |
| supply voltage at AC: initial value | 85 V |
| supply voltage at AC: full-scale value | 264 V |
| supply voltage at AC | Derating at < 110 V AC/DC: output power max. 100 W |
| supply voltage at DC | 110 ... 220 V |
| input voltage at DC | 88 ... 250 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 80 ms |
| operating condition of the mains buffering | With Pa = 120 W and Ue = 230 V AC |
| input current: at rated input voltage 110 V | 1.3 A |
| input current: at rated input voltage 120 V | 2.6 A |
| input current: at rated input voltage 220 V | 0.7 A |
| input current: at rated input voltage 230 V | 1.3 A |
| current limitation of inrush current at 25 °C maximum | 35 A |
| I2t value maximum | 1 A2·s |
| fuse protection type | T 3.15 A (not accessible) |
| fuse protection type in the feeder | Recommended miniature circuit breaker: 6-10 A characteristic C |
Output 26
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 24 V |
| formula for output voltage | 3-52 V DC |
| output voltage: at output 1 at DC rated value | 24 V |
| output voltage: at output 1 at DC | 3 ... 52 V |
| output voltage adjustable | Yes; via potentiometer (adjustment range 3 ... 52 V) or analog control voltage signal 0 to 2.5 V (adjustment range 0 ... 52 V) |
| adjustable output voltage | 0 ... 52 V |
| relative overall tolerance of the voltage | 1% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.1 % |
| voltage compensation per sense line | 0.5 V |
| residual ripple: maximum | 50 mV |
| voltage peak: maximum | 100 mV |
| display version for normal operation | Two-color LED: green for 24 V o.k., red for overload |
| type of signal at output | DC OK via relay contact, current monitor signal (0 ... 2.5 V correspond to 0 ... 10 A) |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 0.5 s |
| voltage increase time of the output voltage: typical | 20 ms |
| output current: rated value | 10 A |
| output current: rated range | 0 ... 10 A; Output power max. 120 W |
| supplied active power typical | 120 W |
| constant overload current: on short-circuiting during the start-up typical | 12 A |
| constant overload current: at short-circuit during operation typical | 12 A |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
Show all 127 specifications ↓ Show less ↑75 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, Safety, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Ambient conditions, Connection method, Mechanical data, Version Classification, Logistics.
Identification 10
| Part number | 6EP3343-0SA00-0AY0 |
|---|---|
| Type designation | PSU3600 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515155478 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 3
| efficiency in percent | 88 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 16 W |
| power loss [W]: during no-load operation maximum | 3 W |
Closed-loop control 3
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.3 % |
|---|---|
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 5% |
| setting time: maximum | 0.2 ms |
Protection and monitoring 6
| design of the overvoltage protection | < 60 V |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Electronic current limiting (2 ... 10 A) in the range 3 ... 12 V or power limiting (120 W) in the range 12 ... 52 V |
| response value current limitation | 2 ... 10 A |
| design of the current limitation | Can be set with potentiometer or analog control voltage signal 0.5 ... 2.5 V |
| enduring short circuit current RMS value: maximum | 12 A |
Safety 5
| galvanic isolation between input and output | Yes |
|---|---|
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current: maximum | 3.5 mA |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 55022 Class B |
|---|---|
| standard: for mains harmonics limitation | EN 61000-3-2 |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability: NEC Class 2 | No |
| type of certification: CB-certificate | Yes |
| MTBF at 40 °C | 1 200 000 h |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | No |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C; Derating > 60°C: 2%/°K |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 4
| type of electrical connection | screw terminal |
|---|---|
| at input | L1, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded |
| at output | +, -: 2 screw terminals each for 0.5 ... 2.5 mm2 single-core/finely stranded |
| for auxiliary contacts | Alarm signals, control inputs: screw-type terminals for 0.14 ... 1.5 mm2 single- core/finely stranded |
Mechanical data 11
| width × height × depth of the enclosure | 42 × 125 × 135 mm |
|---|---|
| installation width × mounting height | 42 mm × 225 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Version Classification 4
| eClass | 16 27-04-07-01 |
|---|---|
| ETIM | 10 EC002540 |
| IDEA | 4 4130 |
| UNSPSC | 15 39-12-10-04 |
Logistics 6
| Net weight | 0.55 kg |
|---|---|
| Country of origin | HU |
| Shipping weight | 1.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
