- Part number
- 6EP3336-8MB00-2CY0
- Model no
- PSU8600

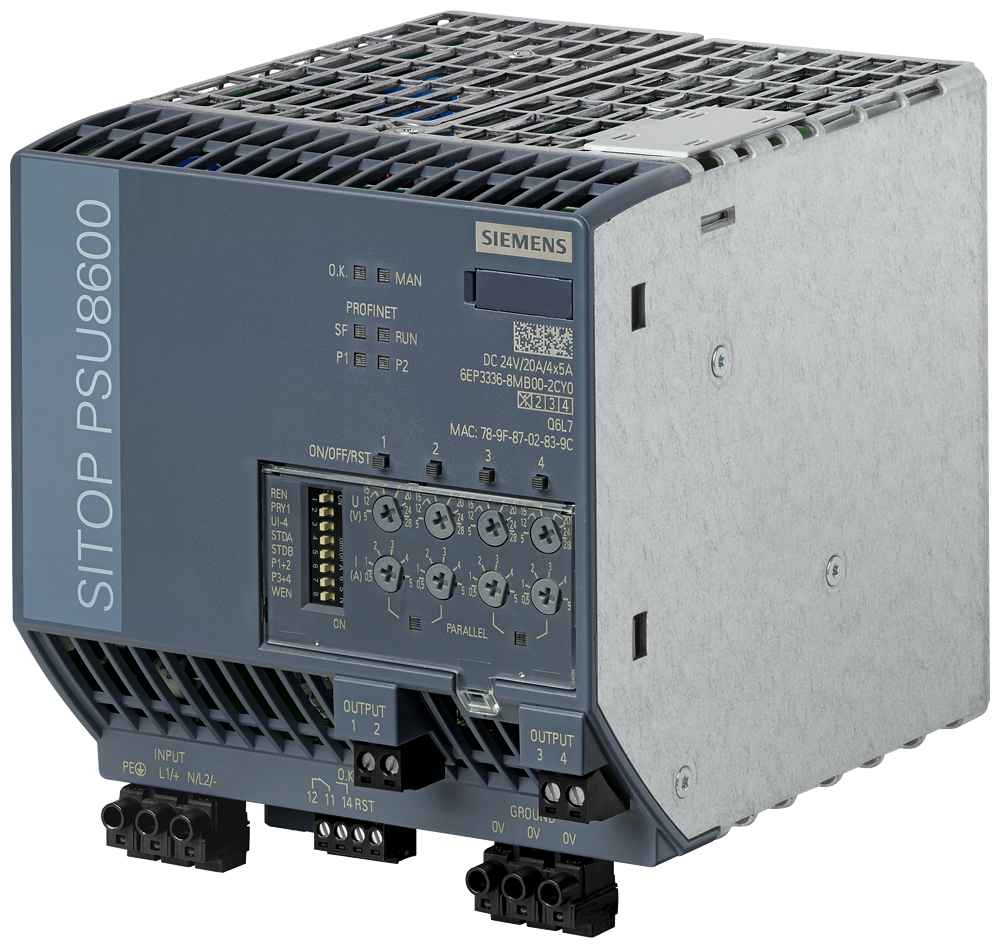

SITOP PSU8600Siemens 6EP3336-8MB00-2CY0 SITOP PSU8600 24V/20A 4x5A PN Power Supply
Siemens SITOP PSU8600 power supply, 100-240V AC input, 4x 24V DC/5A PROFINET outputs, OPC UA.
Description
About the PSU8600
About the PSU8600
The Siemens 6EP3336-8MB00-2CY0 is a SITOP PSU8600 power supply that converts a 100-240 V AC input into four independently adjustable 24 V DC outputs, 5 A each for 20 A total, over a PROFINET interface with an integrated OPC UA server. Each output is individually current-limit adjustable from 0.5 to 5 A, and the unit reaches 92% efficiency at 480 W typical supplied power.
Certifications & Standards
- CE
- EAC
- SEMI F47
- CB
- Shipbuilding
- ABS
- EPD
Selection Notes
Four independently configurable 24 V/5 A outputs on one PROFINET-connected unit let this PSU8600 replace up to four separate DIN-rail supplies while exposing per-output voltage, current limit and diagnostics over the integrated OPC UA server. DIP-switch parallel pairing (Output 1 with 2, or 3 with 4) doubles current on a pair of channels when one machine zone needs more than 5 A, and configurable sequential switch-on (25 ms, 100 ms, or load-optimized) staggers inrush across the four rails on power-up; choose a single-output PSU6200 instead when the application does not need PROFINET-based per-channel monitoring.
Applications
Fits machine builders standardizing on PROFINET-monitored 24 V distribution, where four separately diagnosable output channels replace individual point-of-load supplies and feed status back to the PLC or a SCADA layer via OPC UA.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU8600 |
| product designation | Power supply SITOP PSU8600 |
| type of current supply | 24 V/20 A/4x 5 A |
Input 25
| type of the power supply network | 1-phase and 2-phase AC or DC |
|---|---|
| phase number | 1 |
| voltage curve at input | AC/DC |
| supply voltage at AC: minimum rated value | 100 V |
| supply voltage at AC: maximum rated value | 240 V |
| supply voltage at AC: initial value | 85 V |
| supply voltage at AC: full-scale value | 275 V |
| supply voltage at DC | 110 ... 220 V |
| input voltage at DC | 93 ... 275 V |
| supply voltage: at 50 Hz | 230 V |
| supply voltage: at 60 Hz | 120 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 20 ms |
| operating condition of the mains buffering | at Vin = 100 V; Prioritized supply of Output 1 in case of power failure selectable via DIP switch |
| input current: at rated input voltage 100 V | 5.4 A |
| input current: at rated input voltage 110 V | 4.8 A |
| input current: at rated input voltage 120 V | 4.5 A |
| input current: at rated input voltage 220 V | 2.4 A |
| input current: at rated input voltage 230 V | 2.5 A |
| input current: at rated input voltage 240 V | 2.4 A |
| current limitation of inrush current at 25 °C maximum | 15 A |
| I2t value maximum | 4.33 A2·s |
| fuse protection type | internal |
| fuse protection type in the feeder | required: circuit breaker (for UL: UL489-listed/DIVQ) characteristic C, 10-32 A, alternatively slow-response fuses (for UL: UL248-listed) |
Output 35
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| number of outputs | 4 |
| output voltage at DC rated value | 24 V |
| output voltage: at output 1 at DC rated value | 24 V |
| output voltage: at output 2 at DC rated value | 24 V |
| output voltage: at output 3 at DC rated value | 24 V |
| output voltage: at output 4 at DC rated value | 24 V |
| output voltage: at output 1 at DC | 5 ... 24 V |
| output voltage: at output 2 at DC | 5 ... 24 |
| output voltage: at output 3 at DC | 5 ... 24 |
| output voltage: at output 4 at DC | 5 ... 24 |
| output voltage adjustable | Yes; via potentiometer or IE/PN interface |
| adjustable output voltage | 4 ... 28 V; Derating > 24 V: 4%/V; max. 120 W per output, max. 480 W overall system |
| relative overall tolerance of the voltage | 3% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.2 % |
| residual ripple: maximum | 100 mV |
| voltage peak: maximum | 200 mV |
| display version for normal operation | 3-color LED for operating state device; LED for operating mode manual/remote; 4 LEDs for communication PROFINET; 3-color LED per output for operating state output; LED green for parallel operation Output 1 and 2 / 3 and 4 |
| type of signal at output | Relay contact (changeover contact, contact current capacity DC 60 V/0.3 A) for "Operating state OK" |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 1 s; Without on-delay of the outputs |
| type of outputs connection | simultaneous switch-on of all outputs after device power-up or delay time of 25 ms, 100 ms, or "load-optimized" for sequential switch-on of the outputs via DIP switch configurable |
| voltage increase time of the output voltage: maximum | 500 ms |
| output current: rated value | 20 A |
| output current: per output | 5 A |
| output current: at output 1 rated value | 5 A |
| output current: at output 2 rated value | 5 A |
| output current: at output 3 rated value | 5 A |
| output current: at output 4 rated value | 5 A |
| output current: rated range | 0 ... 20 A |
| supplied active power typical | 480 W |
| parallel switching of outputs | Yes; Parallel circuit Output 1 with 2 or Output 3 with 4 can be selected via DIP switch |
| bridging of equipment | No |
Show all 162 specifications ↓ Show less ↑98 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, Interfaces, Safety, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Connection method, Mechanical data, Accessories, Additional information, Version Classification, Logistics.
Identification 10
| Part number | 6EP3336-8MB00-2CY0 |
|---|---|
| Type designation | PSU8600 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515155560 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 3
| efficiency in percent | 92 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 39 W |
| power loss [W]: during no-load operation maximum | 14 W |
Closed-loop control 3
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.1 % |
|---|---|
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 0.4 % |
| setting time: maximum | 10 ms |
Protection and monitoring 11
| design of the overvoltage protection | max. 35 V (max. 500 ms) |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | electronic overload cut-off; optionally constant current operation can be selected for Output 4 via DIP switches |
| adjustable current response value current of the current-dependent overload release | 0.5 ... 5 A |
| type of response value setting | via potentiometer or IE/PN interface |
| switching characteristic: of the excess current | Ia >1.0...<1.5 x Ia threshold for 5 s permissible; Ia limit (= 1.5 x Ia threshold) for 200 ms permissible |
| switching characteristic: of the current limitation | Ia limit (= 1.5 x Ia threshold) permissible for 5 s, afterwards Ia threshold continuous |
| overcurrent overload capability: in normal operation | Total system overloadable 150% Ia rated to 5 s/min |
| display version for overload and short circuit | 3-color LED for operating state device; 3-color LED per output for operating state output |
| design of the reset device/resetting mechanism | via sensor per output or IE/PN interface |
| remote reset function | non-isolated 24 V input (signal level "high" at > 15 V) |
Interfaces 4
| product function communication function | Yes |
|---|---|
| design of the interface | Ethernet/PROFINET |
| design of the interface PROFINET protocol | Yes |
| protocol is supported: OPC UA | Yes |
Safety 5
| electrical separation between input and output | Yes |
|---|---|
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current: maximum | 3.5 mA |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 55022 Class B |
|---|---|
| standard: for mains harmonics limitation | EN 61000-3-2 |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: NEC Class 2 | No |
| certificate of suitability: SEMI F47 | Yes |
| type of certification: BIS | Yes; R-41188271 |
| type of certification: CB-certificate | Yes |
| MTBF at 40 °C | 186 700 h |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 1 051 kg |
| global warming potential [CO2 eq]: during manufacturing | 62.2 kg |
| global warming potential [CO2 eq]: during operation | 987.6 kg |
| global warming potential [CO2 eq]: after end of life | 0.52 kg |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +60 °C; with natural convection |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 9
| type of electrical connection | Plug-in terminals with screwed connection |
|---|---|
| at input | L1/+, N/L2/-, PE: Plug-in terminal with 1 screwed connection each for 0.2 ... 4 mm2 single-wire / fine stranded |
| at output | 1, 2, 3, 4: Two plug-in terminals (1, 2 and 3, 4) with 2 screwed connections each for 0.2 ... 2.5 mm2; 0 V: Plug-in terminal with 3 screwed connections for 0.2 ... 4 mm2 |
| for auxiliary contacts | RST (Reset): Plug-in terminal (together with alarm signal) with 1 screwed connection for 0.2 ... 1.5 mm2 |
| for signaling contact | 11, 12, 14 (alarm signal): Plug-in terminal (together with Reset) with 1 screwed connection each for 0.2 ... 1.5 mm2 |
| removable terminal at input | Yes |
| removable terminal at output | Yes |
| design of the interface for communication | PROFINET/Ethernet: two RJ45 sockets (2-port switch) |
| suitability for interaction modular system | Yes |
Mechanical data 11
| width × height × depth of the enclosure | 125 × 125 × 150 mm |
|---|---|
| installation width × mounting height | 125 mm × 225 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Accessories 2
| electrical accessories | Expansion modules CNX8600, buffer modules BUF8600, module UPS8600 |
|---|---|
| mechanical accessories | Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20 |
Additional information 1
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|
Version Classification 4
| eClass | 16 27-04-07-01 |
|---|---|
| ETIM | 10 EC002540 |
| IDEA | 4 4130 |
| UNSPSC | 15 39-12-10-04 |
Logistics 6
| Net weight | 2.2 kg |
|---|---|
| Country of origin | Romania |
| Shipping weight | 2.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6EP3336-8MB00-2CY0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- EAC approval
- SEMI F47
- CB-certificate
- shipbuilding approval
- American Bureau of Shipping Europe Ltd. (ABS)
- Environmental Product Declaration
Quick answers
Questions about the PSU8600
What is the rated current of PSU8600?
The rated current of PSU8600 is 20 A.
Which supply voltage is PSU8600 rated for?
The rated operational voltage of PSU8600 is 100–240 V AC.
What motor power is PSU8600 rated for?
The rated motor power of PSU8600 is 0.48 kW.
What is the HS code of PSU8600 for customs?
The tariff (HS) code on file for PSU8600 is 85044083.
What is the EAN of PSU8600?
The EAN (GTIN) of PSU8600 is 4025515155560.
Where does PSU8600 ship from, and how fast?
PSU8600 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
