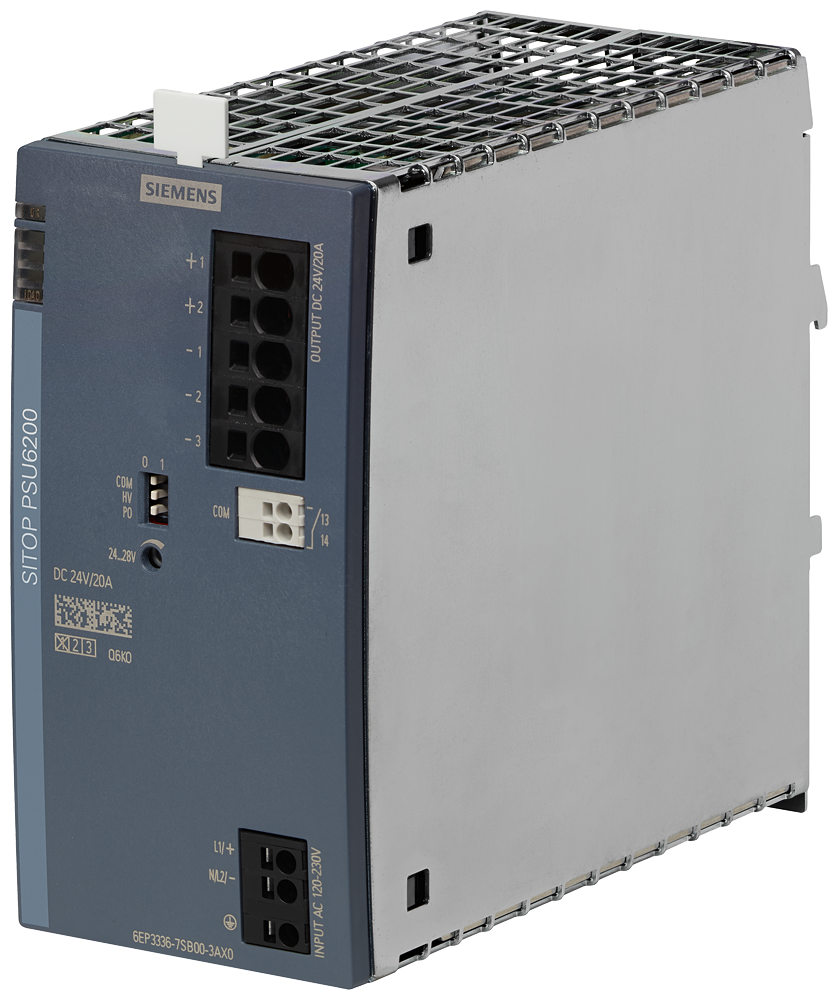

SITOP PSU6200Siemens 6EP3336-7SB00-3AX0 SITOP PSU6200 24V DC/20A Power Supply 120-240V AC Input
SITOP PSU6200 24V DC/20A power supply, 120-240V AC/DC input, diagnostic interface, DIN rail, IP20.
Description
About the PSU6200
About the PSU6200
The Siemens SITOP PSU6200 (6EP3336-7SB00-3AX0) is a stabilized 24V DC power supply rated 20A/480W, accepting a wide-range 120-240V AC or 110-240V DC input with automatic voltage selection. It includes a diagnostic interface output contact, buffers mains dips for at least 25ms, and reaches 95.5% efficiency in a DIN-rail-mount enclosure with push-in terminal connections.
Certifications & Standards
- CE
- UL 508
- cULus
- UKCA
- EAC
- RCM
- SEMI F47
- CB Scheme
- ABS
- DNV
Selection Notes
At 20A/480W, this PSU6200 variant sits above the smaller 5A SITOP PSU8200-class units; pick it when the connected load exceeds what a single lower-current unit supplies, or use the DIP-switch-selectable parallel mode with a second unit for N+1 redundancy or higher combined current. The electronic diagnostic contact (30V DC/0.1A) gives a wired DC-OK signal usable directly by a PLC digital input, unlike LED-only status indication.
Applications
Used for higher-current 24V DC distribution in machine-building and process panels needing wide-range AC/DC input flexibility, SEMI F47 voltage-sag immunity, and marine or offshore power distribution given its shipbuilding, ABS, and DNV approvals.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU6200 |
| product designation | Power supply SITOP PSU6200 |
| type of current supply | 24 V/20 A |
Input 21
| type of the power supply network | 1-phase AC or DC |
|---|---|
| phase number | 1 |
| voltage curve at input | AC/DC |
| supply voltage at AC: minimum rated value | 120 V |
| supply voltage at AC: maximum rated value | 240 V |
| supply voltage at AC: initial value | 85 V |
| supply voltage at AC: full-scale value | 264 V |
| supply voltage at DC | 110 ... 240 V |
| input voltage at DC | 85 ... 275 V |
| supply voltage: at 50 Hz | 240 V |
| supply voltage: at 60 Hz | 120 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| overvoltage overload capability | 300 V AC for 30 s |
| buffering time for rated value of the output current in the event of power failure minimum | 25 ms |
| operating condition of the mains buffering | at Vin = 240 V |
| input current: at rated input voltage 120 V | 4.4 A |
| input current: at rated input voltage 240 V | 2.2 A |
| current limitation of inrush current at 25 °C maximum | 12 A |
| fuse protection type | 10 A |
| fuse protection type in the feeder | Circuit breaker from 6 A characteristic B to 16 A characteristic C or circuit breaker 3RV2011-1HA10 (setting 8A) or 3RV2711-1HD10 (UL 489) |
Output 28
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| number of outputs | 1 |
| output voltage at DC rated value | 24 V |
| output voltage: at output 1 at DC rated value | 24 V |
| output voltage: at output 1 at DC | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 24 ... 28 V; max. 480 W (576 W up to 45°C) |
| relative overall tolerance of the voltage | 3% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.2 % |
| residual ripple: maximum | 80 mV |
| residual ripple: typical | 50 mV |
| voltage peak: maximum | 100 mV |
| voltage peak: typical | 60 mV |
| display version for normal operation | Green LED for 24 V OK |
| type of signal at output | Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. or diagnostic interface |
| behavior of the output voltage when switching on | Overshoot of Vout approx. 3 % |
| response delay maximum | 0.5 s |
| voltage increase time of the output voltage: typical | 100 ms |
| output current: rated value | 20 A |
| output current: rated range | 0 ... 20 A; 24 A up to +45°C; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 480 W |
| short-term overload current: on short-circuiting during the start-up typical | 30 A |
| short-term overload current: at short-circuit during operation typical | 30 A |
| parallel switching of outputs | can be set with DIP switch |
| bridging of equipment | Yes; switchable characteristic |
| number of parallel-switched equipment resources for increasing the power | 2 |
Show all 138 specifications ↓ Show less ↑85 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, Safety, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Connection method, Mechanical data, Accessories, Further information internet links, Additional information, Approvals Certificates, Logistics.
Identification 10
| Part number | 6EP3336-7SB00-3AX0 |
|---|---|
| Type designation | PSU6200 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515155218 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 3
| efficiency in percent | 95.5 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 25 W |
| power loss [W]: during no-load operation maximum | 2.6 W |
Closed-loop control 4
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 3% |
|---|---|
| setting time: load step 10 to 90% typical | 0.5 ms |
| setting time: load step 90 to 10% typical | 0.5 ms |
| setting time: maximum | 1 ms |
Protection and monitoring 5
| design of the overvoltage protection | < 32 V |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Shutdown and periodic restart attempts |
| typical | 30 A |
| overcurrent overload capability: in normal operation | overload capability 150 % Iout rated up to 5 s/min |
Safety 5
| galvanic isolation between input and output | Yes |
|---|---|
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current: maximum | 3.5 mA |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 55022 Class B |
|---|---|
| standard: for mains harmonics limitation | EN 61000-3-2 |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 9
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability: NEC Class 2 | No |
| certificate of suitability: SEMI F47 | Yes |
| type of certification: BIS | Yes; R-41188271 |
| type of certification: CB-certificate | Yes |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Standards, specifications, approvals Environmental Product Declaration 6
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 614.4 kg |
| global warming potential [CO2 eq]: during manufacturing | 33.9 kg |
| global warming potential [CO2 eq]: during operation | 623.6 kg |
| global warming potential [CO2 eq]: after end of life | 0.56 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
Ambient conditions 4
| ambient temperature: during operation | -30 ... +70 °C; with natural convection a monotonically increasing start-up from -25 °C, safe start-up from -40 °C |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 4
| type of electrical connection | push-in terminals |
|---|---|
| at input | L1/+, L2/N/-, PE: push-in for 0.5 ... 4 mm2 single-core/finely stranded |
| at output | +1, +2, -1, -2, -3: push-in for 0.5 ... 6 mm2 |
| for auxiliary contacts | 13, 14 (alarm signal): 1 push-in terminal each for 0.2 ... 1.5 mm2 |
Mechanical data 11
| width × height × depth of the enclosure | 70 × 135 × 155 mm |
|---|---|
| installation width × mounting height | 70 mm × 225 mm |
| required spacing: top | 45 mm |
| required spacing: bottom | 45 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Accessories 2
| electrical accessories | Buffer module, redundancy module |
|---|---|
| mechanical accessories | Identification labels SIMATIC ET 200SP 6ES7193-6LF30-0AW0 |
Further information internet links 1
| identification link | Yes; acc. to IEC 61406-1:2022 |
|---|
Additional information 1
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 33.9 kg |
|---|
Logistics 7
| Net weight | 1.5 kg |
|---|---|
| Package dimensions | 186 × 217 × 83 mm |
| Country of origin | Romania |
| Shipping weight | 2.0 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
