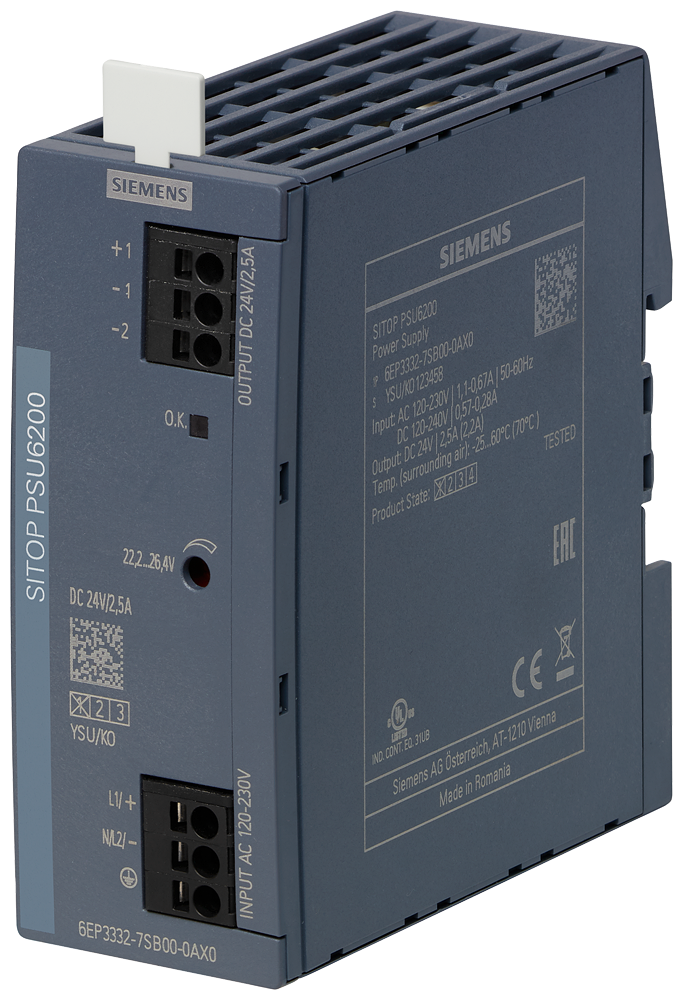

SITOP PSU6200Siemens 6EP3332-7SB00-0AX0 SITOP PSU6200 120-240V AC 24V/2.5A Power Supply
SITOP PSU6200 supply, 120-240V AC/DC input, 24V DC/2.5A output, push-in terminals, IP20.
Description
About the PSU6200
About the PSU6200
The Siemens 6EP3332-7SB00-0AX0 is a SITOP PSU6200 single-phase power supply that converts 120-240 V AC or DC input into a stabilized 24 V DC output rated at 2.5 A, adjustable from 22.2 to 26.4 V via potentiometer. It reaches 89% efficiency, provides push-in terminal connections, and mounts on a 35 mm DIN rail in a 40 x 100 x 88 mm housing.
Certifications & Standards
- CE
- UKCA
- EAC
- RCM
- SEMI F47
- CB
- ABS
- DNV
- EPD
Selection Notes
The 2.5 A / 60 W rating and push-in terminals suit compact ET 200SP station supply where a higher-current SITOP PSU4200 unit's output would be unnecessary; the two families are not interchangeable footprints. Because the design accepts either 120-240 V AC or 120-240 V DC at the same terminals, it also serves as a DC-input supply in battery-backed or DC-distribution panels without a separate rectifier. The shutdown-and-restart short-circuit behavior (typical 3.1 A trip) is a hiccup-mode response, relevant when sizing the recommended 4-16 A characteristic C upstream circuit breaker.
Applications
Fits SIMATIC ET 200SP station power, small automation cabinets needing 24 V push-in wiring, and panels where both AC and DC mains sources must be accommodated without redesign.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU6200 |
| product designation | Power supply SITOP PSU6200 |
| type of current supply | 24 V/2.5 A |
Input 21
| type of the power supply network | 1-phase AC or DC |
|---|---|
| phase number | 1 |
| voltage curve at input | AC/DC |
| supply voltage at AC: minimum rated value | 120 V |
| supply voltage at AC: maximum rated value | 240 V |
| supply voltage at AC: initial value | 85 V |
| supply voltage at AC: full-scale value | 264 V |
| supply voltage at DC | 120 ... 240 V |
| input voltage at DC | 110 ... 275 V |
| supply voltage: at 50 Hz | 240 V |
| supply voltage: at 60 Hz | 120 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| overvoltage overload capability | 300 V AC for 30 s |
| buffering time for rated value of the output current in the event of power failure minimum | 150 ms |
| operating condition of the mains buffering | at Vin = 240 V |
| input current: at rated input voltage 120 V | 1.1 A |
| input current: at rated input voltage 240 V | 0.6 A |
| current limitation of inrush current at 25 °C maximum | 32 A |
| fuse protection type | 3.15 A |
| fuse protection type in the feeder | Circuit breaker from 4 A characteristic C/6 A characteristic B to 16 A characteristic C or circuit breaker 3RV2011-1EA10 (setting 4 A) or 3RV2711- 1ED10 (UL 489) |
Output 25
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| number of outputs | 1 |
| output voltage at DC rated value | 24 V |
| output voltage: at output 1 at DC rated value | 24 V |
| output voltage: at output 1 at DC | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 22.2 ... 26.4 V; max. 60 W |
| relative overall tolerance of the voltage | 3% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.1 % |
| residual ripple: maximum | 30 mV |
| residual ripple: typical | 20 mV |
| voltage peak: maximum | 30 mV |
| voltage peak: typical | 20 mV |
| display version for normal operation | Green LED for 24 V OK |
| behavior of the output voltage when switching on | Overshoot of Vout approx. 3 % |
| response delay maximum | 1 s |
| voltage increase time of the output voltage: typical | 100 ms |
| output current: rated value | 2.5 A |
| output current: rated range | 0 ... 2.5 A; +60 ... +70 °C: Derating 2.5%/K |
| supplied active power typical | 60 W |
| short-term overload current: on short-circuiting during the start-up typical | 2.5 A |
| short-term overload current: at short-circuit during operation typical | 2.5 A |
| bridging of equipment | No |
Show all 133 specifications ↓ Show less ↑83 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, Safety, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Connection method, Mechanical data, Additional information, Approvals Certificates, Logistics.
Identification 10
| Part number | 6EP3332-7SB00-0AX0 |
|---|---|
| Type designation | PSU6200 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515155140 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 3
| efficiency in percent | 89 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 7 W |
| power loss [W]: during no-load operation maximum | 0.8 W |
Closed-loop control 4
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 3% |
|---|---|
| setting time: load step 10 to 90% typical | 1 ms |
| setting time: load step 90 to 10% typical | 1 ms |
| setting time: maximum | 2 ms |
Protection and monitoring 4
| design of the overvoltage protection | < 32 V |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Shutdown and periodic restart attempts |
| typical | 3.1 A |
Safety 5
| galvanic isolation between input and output | Yes |
|---|---|
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current: maximum | 3.5 mA |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 55022 Class B |
|---|---|
| standard: for mains harmonics limitation | EN 61000-3-2 |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 9
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability: NEC Class 2 | Yes; according to UL1310, File E151273 |
| certificate of suitability: SEMI F47 | Yes |
| type of certification: BIS | Yes; R-41183539 |
| type of certification: CB-certificate | Yes |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 196.5 kg |
| global warming potential [CO2 eq]: during manufacturing | 6.4 kg |
| global warming potential [CO2 eq]: during operation | 189.8 kg |
| global warming potential [CO2 eq]: after end of life | 0.19 kg |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C; with natural convection |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 4
| type of electrical connection | push-in terminals |
|---|---|
| at input | L1/+, L2/N/-, PE: push-in for 0.5 ... 2.5 mm2 single-core/finely stranded |
| at output | +1, -1, -2: push-in for 0.5 ... 2.5 mm2 |
| for auxiliary contacts | - |
Mechanical data 14
| width × height × depth of the enclosure | 40 × 100 × 88 mm |
|---|---|
| installation width × mounting height | 40 mm × 200 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight accessories | 0.25 kg |
| electrical accessories | Buffer module, redundancy module |
| mechanical accessories | Identification labels SIMATIC ET 200SP 6ES7193-6LF30-0AW0 |
Additional information 1
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 6.4 kg |
|---|
Logistics 7
| Net weight | 0.25 kg |
|---|---|
| Package dimensions | 108 × 105 × 50 mm |
| Country of origin | Romania |
| Shipping weight | 0.75 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6EP3332-7SB00-0AX0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- UKCA
- CE marking
- UKCA marking
- EAC approval
- Regulatory Compliance Mark (RCM)
- SEMI F47
- CB-certificate
- shipbuilding approval
- American Bureau of Shipping Europe Ltd. (ABS)
- Det Norske Veritas (DNV)
- Environmental Product Declaration
Quick answers
Questions about the PSU6200
What is the rated current of PSU6200?
The rated current of PSU6200 is 2.5 A.
Which supply voltage is PSU6200 rated for?
The rated operational voltage of PSU6200 is 120–240 V AC.
What motor power is PSU6200 rated for?
The rated motor power of PSU6200 is 0.06 kW.
What is the HS code of PSU6200 for customs?
The tariff (HS) code on file for PSU6200 is 85044083.
What is the EAN of PSU6200?
The EAN (GTIN) of PSU6200 is 4025515155140.
Where does PSU6200 ship from, and how fast?
PSU6200 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
