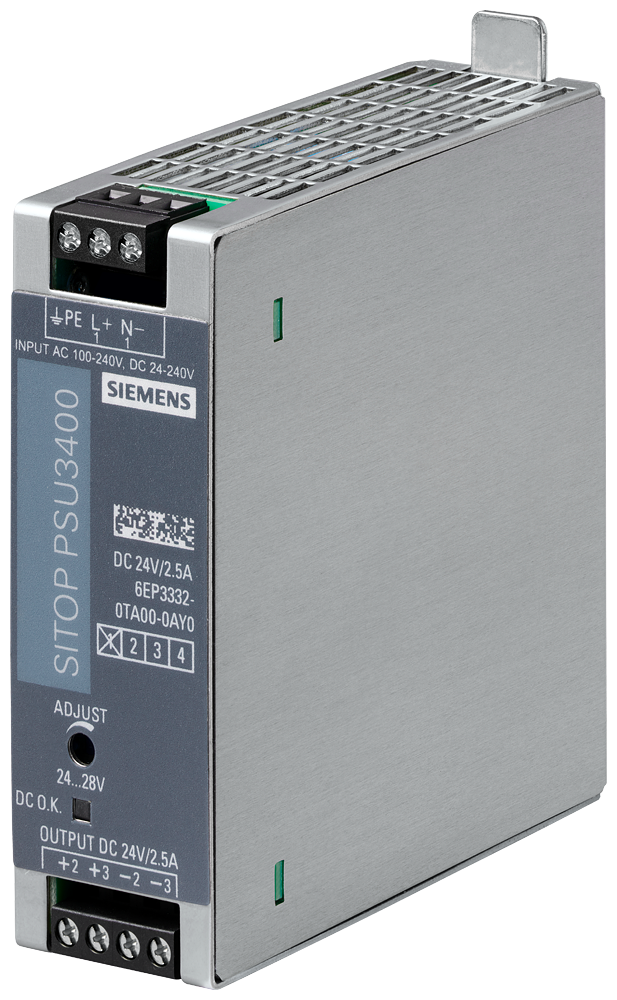

SITOP PSU3400Siemens 6EP3332-0TA00-0AY0 SITOP PSU3400 Uni 24V/2.5A Power Supply
Siemens SITOP PSU3400 Uni power supply, 230V AC or 24V DC input, 24V DC/2.5A output.
Description
About the PSU3400
About the PSU3400
The Siemens 6EP3332-0TA00-0AY0 is a SITOP PSU3400 Uni power supply that accepts either a 230 V AC (88-264 V) or an 18-264 V DC input and delivers a stabilized 24 V DC output rated 2.5 A continuous, 3.5 A without derating up to 70 degrees C. Soft-start switch-on avoids output overshoot, and the unit reaches 85% efficiency at 85 W typical supplied power.
Certifications & Standards
- CE
- UKCA
- RCM
- CB
Selection Notes
Accepting either 230 V AC or 18-264 V DC on the same terminals, this PSU3400 Uni variant works as a primary AC-fed supply or as a DC-DC converter downstream of a 24 V battery or another DC bus without a different part number. The 3.5 A rating with no derating up to 70 degrees C gives headroom over the 2.5 A typical rated current, and soft-start switch-on avoids inrush transients on sensitive downstream electronics; pick a PSU6200 model instead when only AC input is available and a diagnostic contact is required.
Applications
Suited to panels that may be fed from either AC mains or an existing 24 V DC bus, and to battery-backed or DC-distributed installations needing a compact DC-DC 24 V/2.5 A stage.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU3400 |
| product designation | Power supply SITOP DC-DC converter |
| type of current supply | 24 V/2.5 A |
Input 22
| type of the power supply network | 1-phase AC or DC |
|---|---|
| phase number | 1 |
| voltage curve at input | AC/DC |
| supply voltage at AC: minimum rated value | 120 V |
| supply voltage at AC: maximum rated value | 240 V |
| supply voltage at AC: initial value | 88 V |
| supply voltage at AC: full-scale value | 264 V |
| supply voltage at AC | Startup as of 18 V |
| supply voltage at DC | 24 V |
| input voltage at DC | 18 ... 264 V |
| supply voltage: at 50 Hz | 230 V |
| supply voltage: at 60 Hz | 120 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| overvoltage overload capability | - |
| buffering time for rated value of the output current in the event of power failure minimum | 5 ms |
| operating condition of the mains buffering | at Vin rated |
| input current: at rated input voltage 24 V | 1.9 A |
| current limitation of inrush current at 25 °C maximum | 15 A |
| I2t value maximum | 0.09 A2·s |
| fuse protection type | 15 A (not accessible), breaking capacity 100 A |
| fuse protection type in the feeder | Recommended miniature circuit breaker: 16 A characteristic B or C |
Output 24
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 24 V |
| output voltage: at output 1 at DC rated value | 24 V |
| output voltage: at output 1 at DC | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 24 ... 28 V |
| relative overall tolerance of the voltage | 1% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.1 % |
| residual ripple: maximum | 150 mV |
| residual ripple: typical | 30 mV |
| voltage peak: maximum | 250 mV |
| voltage peak: typical | 70 mV |
| display version for normal operation | Green LED for 24 V OK |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 0.5 s |
| voltage increase time of the output voltage: typical | 10 ms |
| voltage increase time of the output voltage: maximum | 20 ms |
| output current: rated value | 2.5 A |
| output current: rated range | 0 ... 3.5 A; +60 to +70 °C: without derating |
| supplied active power typical | 85 W |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
Show all 125 specifications ↓ Show less ↑75 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, Safety, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Ambient conditions, Connection method, Mechanical data, Accessories, Version Classification, Logistics.
Identification 10
| Part number | 6EP3332-0TA00-0AY0 |
|---|---|
| Type designation | PSU3400 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515155935 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 3
| efficiency in percent | 85 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 7 W |
| power loss [W]: during no-load operation maximum | 1.5 W |
Closed-loop control 4
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.3 % |
|---|---|
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 2% |
| setting time: load step 50 to 100% typical | 1 ms |
| setting time: load step 100 to 50% typical | 1 ms |
Protection and monitoring 5
| design of the overvoltage protection | Ua < 35 V |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
| typical | 3.8 A |
| display version for overload and short circuit | LED yellow for "overload" |
Safety 4
| galvanic isolation between input and output | Yes |
|---|---|
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class III |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 61000-6-3 |
|---|---|
| standard: for mains harmonics limitation | not applicable |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: EAC approval | No |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability: NEC Class 2 | No |
| type of certification: CB-certificate | Yes |
| MTBF at 40 °C | 1 934 648 h |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | No |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C; with natural convection |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 3
| type of electrical connection | screw terminal |
|---|---|
| at input | L, N, FE: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded |
| at output | +, -: 2 screw terminals each for 0.5 ... 2.5 mm2 |
Mechanical data 11
| width × height × depth of the enclosure | 32 × 100 × 100 mm |
|---|---|
| installation width × mounting height | 32 mm × 200 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Accessories 1
| electrical accessories | Buffer module |
|---|
Version Classification 4
| eClass | 16 27-04-07-01 |
|---|---|
| ETIM | 10 EC002540 |
| IDEA | 4 4130 |
| UNSPSC | 15 39-12-10-04 |
Logistics 6
| Net weight | 0.4 kg |
|---|---|
| Country of origin | HU |
| Shipping weight | 0.9 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6EP3332-0TA00-0AY0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE marking
- UKCA marking
- Regulatory Compliance Mark (RCM)
- CB-certificate
Quick answers
Questions about the PSU3400
What is the rated current of PSU3400?
The rated current of PSU3400 is 2.5 A.
Which supply voltage is PSU3400 rated for?
The rated operational voltage of PSU3400 is 230 V AC.
What motor power is PSU3400 rated for?
The rated motor power of PSU3400 is 0.085 kW.
What is the HS code of PSU3400 for customs?
The tariff (HS) code on file for PSU3400 is 85044083.
What is the EAN of PSU3400?
The EAN (GTIN) of PSU3400 is 4025515155935.
Where does PSU3400 ship from, and how fast?
PSU3400 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
