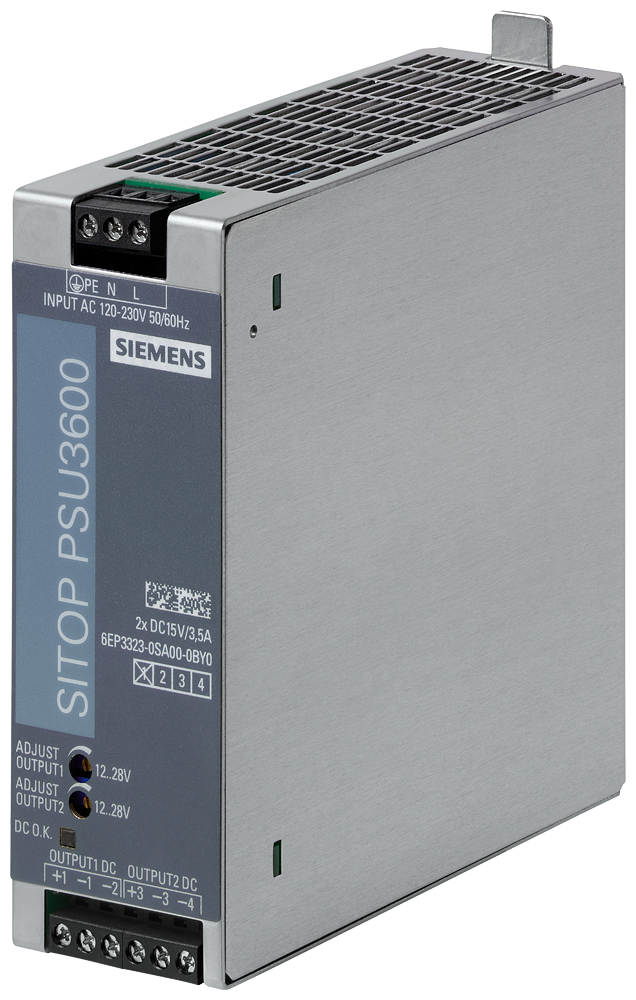

SITOP PSU3600Siemens 6EP3323-0SA00-0BY0 SITOP PSU3600 Dual 2x15V/3.5A Power Supply
Siemens SITOP PSU3600 Dual power supply, 120-230V AC input, two isolated 15V DC/3.5A outputs.
Description
About the PSU3600
About the PSU3600
The Siemens 6EP3323-0SA00-0BY0 is a SITOP PSU3600 dual-output power supply converting a 120-230 V AC (or 88-250 V DC) input into two galvanically isolated, potential-free 15 V DC outputs rated 3.5 A each. Each output is independently adjustable from 12 to 28 V via its own potentiometer, and the unit reaches 88% efficiency at 105 W typical supplied power.
Certifications & Standards
- CE
- EAC
- RCM
Selection Notes
Two independently adjustable 15 V/3.5 A outputs let one PSU3600 unit power two isolated 15 V circuits from a single 120-230 V AC feed, useful where sensor and control loops need separate isolated rails without doubling the supply footprint. Because each output trims 12-28 V independently, this variant fits applications needing a non-standard secondary voltage alongside a second 15 V rail; pick a single-output PSU3600 model instead when both loads can share one common DC bus.
Applications
Suited to panels needing two isolated 15 V DC rails from one 120-230 V AC feed — for example separate supplies for an analog sensor loop and a digital control circuit — without mounting two independent power supplies on the DIN rail.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU3600 |
| product designation | Power supply SITOP power |
| type of current supply | 2 x 15 V/3.5 A |
Input 23
| type of the power supply network | 1-phase AC or DC |
|---|---|
| phase number | 1 |
| voltage curve at input | AC/DC |
| supply voltage at AC: minimum rated value | 120 V |
| supply voltage at AC: maximum rated value | 230 V |
| supply voltage at AC: initial value | 85 V |
| supply voltage at AC: full-scale value | 264 V |
| supply voltage at AC | Derating at < 110 V AC/DC: output power max. 100 W |
| input voltage at DC | 88 ... 250 V |
| supply voltage: at 50 Hz | 230 V |
| supply voltage: at 60 Hz | 120 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 10 ms |
| operating condition of the mains buffering | at Vin = 120 V, 40 ms at Vin = 187 V |
| input current: at rated input voltage 110 V | 1.3 A |
| input current: at rated input voltage 120 V | 2.2 A |
| input current: at rated input voltage 220 V | 0.7 A |
| input current: at rated input voltage 230 V | 1.3 A |
| current limitation of inrush current at 25 °C maximum | 35 A |
| I2t value maximum | 1 A2·s |
| fuse protection type | T 3.15 A (not accessible) |
| fuse protection type in the feeder | Recommended miniature circuit breaker: 6-10 A characteristic C |
Output 26
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| number of outputs | 2 |
| output voltage at DC rated value | 15 V |
| formula for output voltage | 2 x 15 V DC |
| output voltage: at output 1 at DC rated value | 15 V |
| output voltage: at output 2 at DC rated value | 15 V |
| output voltage: at output 1 at DC | 15 V |
| output voltage adjustable | Yes; via potentiometer per output |
| adjustable output voltage | 12 ... 28 V |
| relative overall tolerance of the voltage | 1% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.1 % |
| residual ripple: maximum | 50 mV |
| voltage peak: maximum | 150 mV |
| display version for normal operation | Green LED grün for Vout >10 V (summation display) |
| type of signal at output | - |
| behavior of the output voltage when switching on | Overshoot of Vout < 1 % |
| response delay maximum | 0.5 s |
| output current: rated value | 3.5 A |
| output current: at output 1 rated value | 3.5 A |
| output current: at output 2 rated value | 3.5 A |
| output current: rated range | 0 ... 3.5 A; Output power max. 60 W per output |
| supplied active power typical | 105 W |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
Show all 123 specifications ↓ Show less ↑70 more values in Identification, Efficiency, Protection and monitoring, Safety, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Ambient conditions, Connection method, Mechanical data, Additional information, Version Classification, Logistics.
Identification 10
| Part number | 6EP3323-0SA00-0BY0 |
|---|---|
| Type designation | PSU3600 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515155492 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 2
| efficiency in percent | 88 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 18 W |
Protection and monitoring 5
| design of the overvoltage protection | ≤ 35 V |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
| response value current limitation | 5 A |
| design of the current limitation | depending on the voltage setting |
Safety 5
| electrical separation between input and output | Yes |
|---|---|
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current: maximum | 3.5 mA |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 55022 Class B |
|---|---|
| standard: for mains harmonics limitation | EN 61000-3-2 |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 6
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-listed (UL 508, CSA C22.2 No. 107.1), file E197259; outputs NEC Class 2 acc. to UL 1310 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability: NEC Class 2 | Yes; according to UL1310 |
| type of certification: CB-certificate | No |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | No |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C; Derating > 60°C: 2%/°K |
|---|---|
| ambient temperature: during transport | -40 ... +70 °C |
| ambient temperature: during storage | -40 ... +70 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 4
| type of electrical connection | screw terminal |
|---|---|
| at input | L1, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded |
| at output | +: 1 screw terminal per output for 0.5 ... 2.5 mm2; -: 2 screw terminals per output for 0.5 ... 2.5 mm2 |
| for auxiliary contacts | - |
Mechanical data 11
| width × height × depth of the enclosure | 42 × 125 × 125 mm |
|---|---|
| installation width × mounting height | 42 mm × 225 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Additional information 1
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|
Version Classification 4
| eClass | 16 27-04-07-01 |
|---|---|
| ETIM | 10 EC002540 |
| IDEA | 4 4130 |
| UNSPSC | 15 39-12-10-04 |
Logistics 6
| Net weight | 0.55 kg |
|---|---|
| Country of origin | HU |
| Shipping weight | 1.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6EP3323-0SA00-0BY0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE marking
- EAC approval
- Regulatory Compliance Mark (RCM)
Quick answers
Questions about the PSU3600
What is the rated current of PSU3600?
The rated current of PSU3600 is 3.5 A.
Which supply voltage is PSU3600 rated for?
The rated operational voltage of PSU3600 is 120–230 V AC.
What motor power is PSU3600 rated for?
The rated motor power of PSU3600 is 0.105 kW.
What is the HS code of PSU3600 for customs?
The tariff (HS) code on file for PSU3600 is 85044083.
What is the EAN of PSU3600?
The EAN (GTIN) of PSU3600 is 4025515155492.
Where does PSU3600 ship from, and how fast?
PSU3600 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
